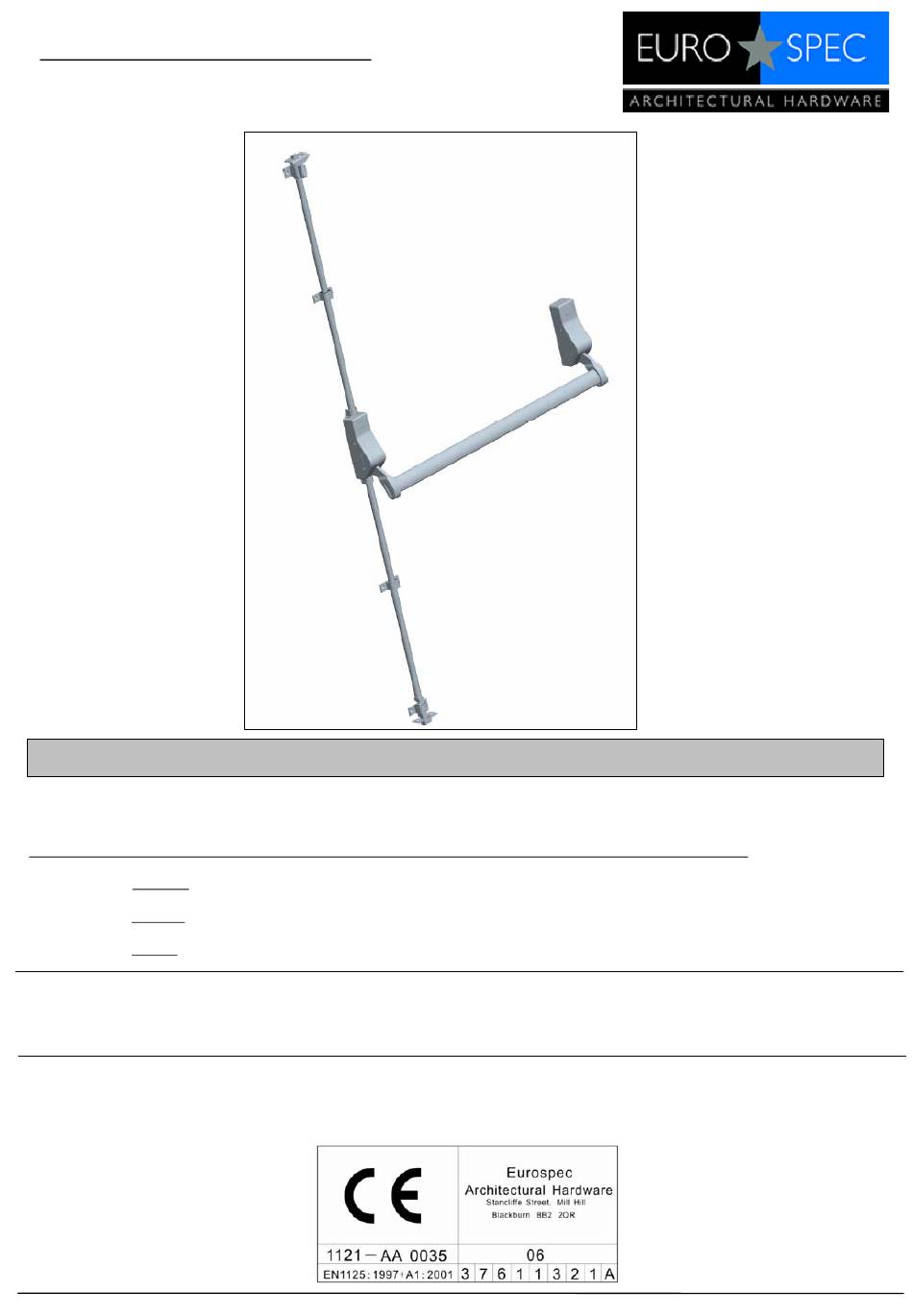

Installation Instructions
Modular Push Bar Panic Bolt with Vertical Rods to EN1125
PLEASE READ THESE INSTRUCTIONS CAREFULLY
Door – Maximum specification of door on which this product should be fitted.
•
Maximum weight of door = 200kg
• Maximum height of door = 2500mm
• Maximum width of door = 1300mm (1170mm Bar) – 1100mm (730mm Bar)
This product is designed for peoples safety and complies with EN 1125. Do not modify
the product in anyway other than those outlined in these instructions.
This product is non handed and can be fitted on both left handed and right handed doors.
IMPORTANT INFORMATION
For internal use only.
1
Modular Push Bar Panic Bolt with Vertical Rods Rev.7
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Summary of Contents for Eurospec Push Bar Panic Bolt
-
Page 1: Installation Instructions
Installation Instructions Modular Push Bar Panic Bolt with Vertical Rods to EN1125 IMPORTANT INFORMATION PLEASE READ THESE INSTRUCTIONS CAREFULLY Door – Maximum specification of door on which this product should be fitted. • Maximum weight of door = 200kg • Maximum height of door = 2500mm •... -
Page 2: Parts List
Bottom Keep X 1 (21) 3mm Packer X 1 (10) Plastic End Caps X 2 (22) End Box Bottom Cover X 1 (11) Shoot Bolts X 2 (23) Rod Connector Covers X 2 Modular Push Bar Panic Bolt with Vertical Rods Rev.7... - Page 3 Check that the door and frame are in good condition and that the door operates correctly. At a height of 1150 +/- 100mm, obtain the most suitable position for installation depending on door and frame conditions (This height will be centre line mark for unit follower) Modular Push Bar Panic Bolt with Vertical Rods Rev.7...
-
Page 4: Installation
(Items 12) fully into cut ends of rods taking care to use a wooden block to support the opposite end when knocking the plugs into position. See Fig 4.3 Fig 4.3 Modular Push Bar Panic Bolt with Vertical Rods Rev.7... - Page 5 (Items 8) to door at a central position on both rods using screws (Items 23) ensuring vertical alignment with door edge. The other plain guide does not require fixing at this stage. See Fig 4.6 Fig 4.6 Modular Push Bar Panic Bolt with Vertical Rods Rev.7...
- Page 6 Fig 4.8 maintaining a gap of 19mm between the underside of the Bevelled edge guide and threshold. Mark through and secure into position See Fig 4.7 Bevelled edge 2-3mm Fig 4.9 Modular Push Bar Panic Bolt with Vertical Rods Rev.7...
- Page 7 16) Check the operation of the Bar and rods are satisfactory. 17) Apply self adhesive ‘Push Bar to Open’ Sign Fig 4.13 to door and stick the optional ES logo labels into the recesses of the Panic Bolt boxes . Modular Push Bar Panic Bolt with Vertical Rods Rev.7...
-
Page 8: Operational Instructions
Operational Instructions This Push Bar Panic Bolt is fitted to comply with EN1125. No instruction of operation is required. For the end user, the Push Bar Panic Bolt should be easily operated by hand or body pressure in a panic situation.
