- Page 3 Thank you for purchasing this product For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. Surge protection device recommended This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lighting strikes, etc.
-
Page 4: Table Of Contents
Table of Contents 1. Introduction ..............4 2. Features ................4 3. Package Contents ............6 4. Specifications ..............6 5.Operation Controls and Functions ........9 5.1 Front Panel ............. 9... - Page 5 5.2 Rear Panel ............11 6. Application Example ............12...
-
Page 6: Introduction

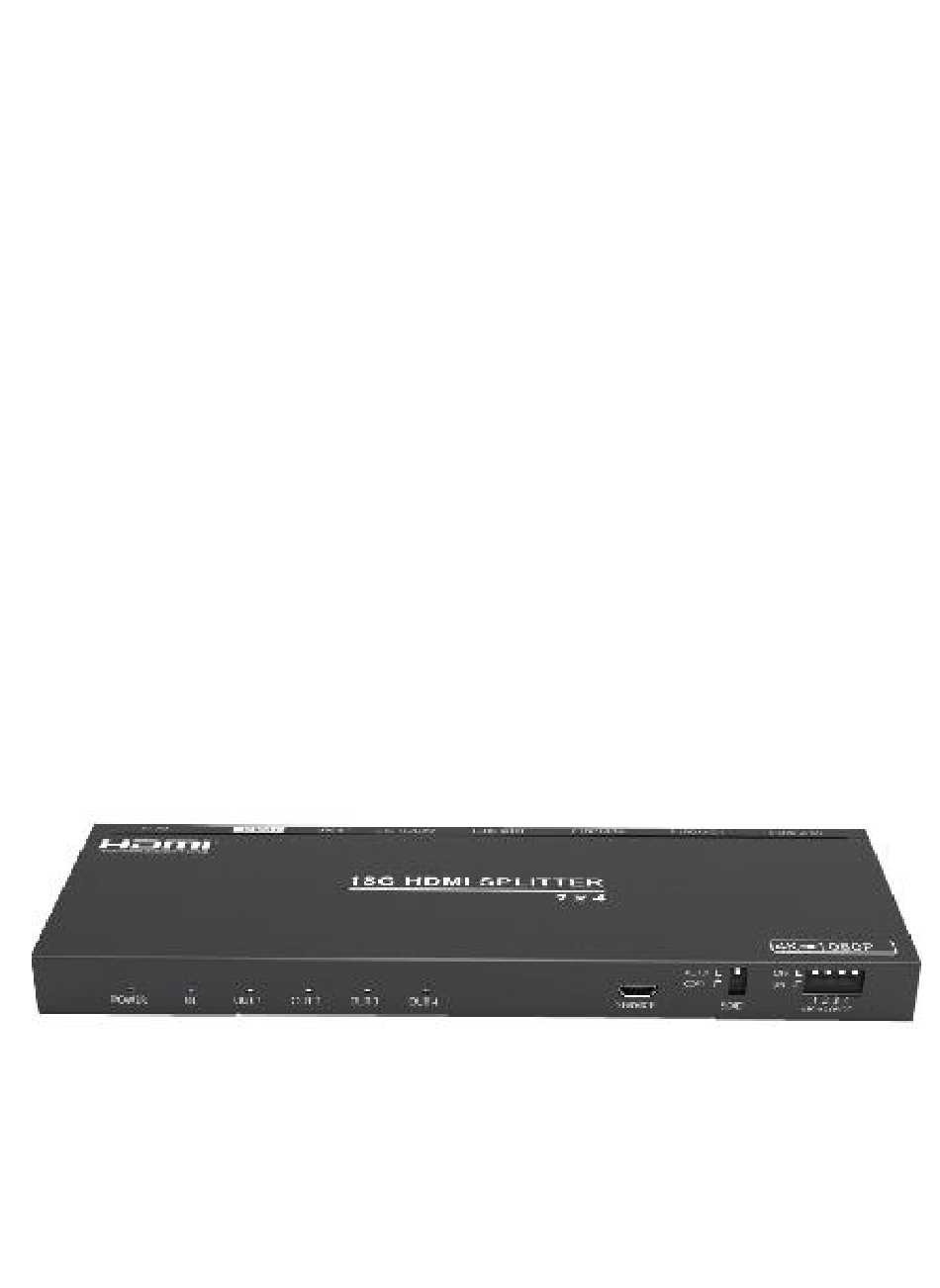

1. Introduction The 1x4 HDMI 2.0 Splitter simultaneously one route HDMI source to four routes HDMI display. It supports resolution up to 4K2K@60Hz (4:4:4) and HDCP 2.2. This product supports audio extract from HDMI source to optical and analog output. It can be selected COPY, AUTO modes EDID setting. - Page 7 ☆ Supports digital and analog audio extract output from HDMI source. ☆ Supports output bypass and 4K->1080P downscaler function via dial switch on panel. ☆ EDID can be selected COPY and AUTO modes via dial switch on panel. (COPY: It copys OUT 1 port EDID setting to all outputs port, If no HDMI OUT 1 capable EDID is detected then the unit will copy HDMI OUT 2.
-
Page 8: Package Contents
2.0/2.1/5.1CH, Dolby 5.1, Dolby True HD, Dolby DD+, DTS 5.1, DTS-ES 6/DTS-HDMA 5.1, DTS HD-HRA 5.1. 3. Package Contents ① 1× 1×4 HDMI 2.0 Splitter ② 1× 5V/1A Power Adapter ③ 1× User Manual 4. Specifications Technical HDMI Compliance HDMI 2.0b HDCP Compliance HDCP 2.2 and HDCP 1.4 Video Bandwidth... - Page 9 Color Depth 4K60Hz 8-bit, 1080P 12-bit Color Space RGB, YCbCr 4:4:4, YCbCr 4:2:2 HDMI Audio Formats LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD L/R Audio Formats PCM 2.0 Optical Audio Formats LPCM [2.0/2.1]CH, Dolby 5.1, Dolby True HD,Dolby DD+, DTS 5.1, DTS-ES 6,...
- Page 10 Housing Metal Enclosure Color Black Dimensions 180mm(W)×62mm(D)×14mm(H) Weight 227g Power Supply Input: AC100~240V 50/60Hz, Output: DC5V/1A (US/EU standards, CE/FCC/UL certified) Power Consumption 3.5W (max) Operating 0°C ~ 40°C / 32°F ~ 104°F Temperature Storage Temperature -20°C ~ 60°C / -4°F ~ 140°F Relative Humidity 20~90% RH (non-condensing)
-
Page 11: Operation Controls And Functions
5.Operation Controls and Functions 5.1 Front Panel Number Name Function description This blue LED will illuminate when the unit has POWER LED connected power supply. This blue LED will illuminate when the HDMI HDMI IN has connected an active HDMI source INPUT LED device with a HDMI cable. - Page 12 port only.) • AUTO: Compare the EDID setting of the EDID HDMI OUT 1~ 4 port display device, then transmit the best EDID signal to source device, the source device will transmit again the EDID signal to all outputs. • COPY: Copy the HDMI OUT 1 port EDID setting to source device(If no HDMI OUT 1 capable EDID is detected then the unit will copy HDMI OUT 2.
- Page 13 5.2 Rear Panel Number Name Function description HDMI Connect to HDMI display device such as TV or OUTPUT monitor. OPTICAL Optical audio output. (This port outputs audio from HDMI IN port.) L/R OUT Analog audio output. (This port outputs audio from HDMI IN port.) HDMI IN Connect to HDMI source device such as DVD player or PS4.
- Page 14 6. Application Example...
