Summary of Contents for YCG Chrono-Tester

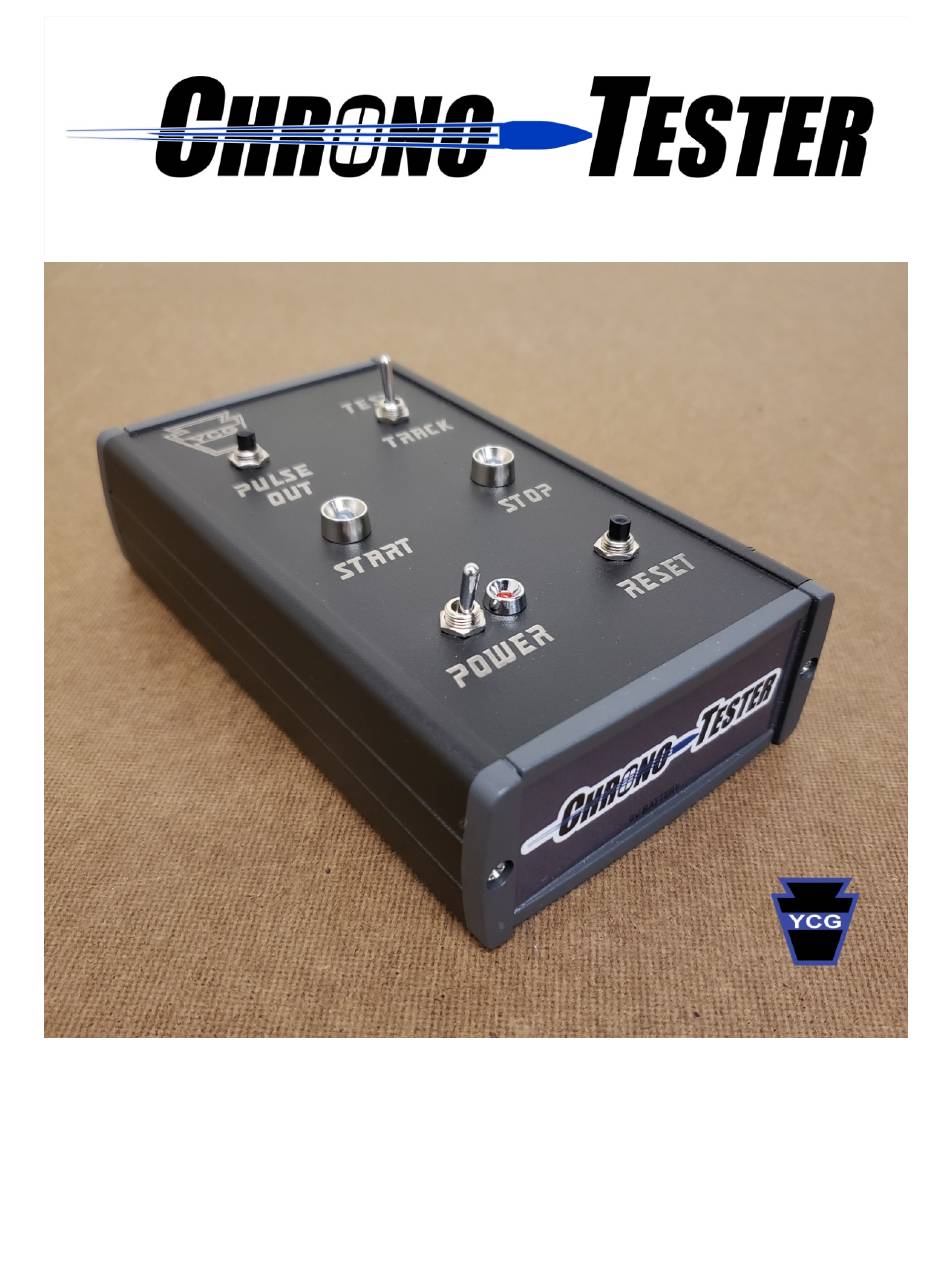

- Page 1 USER MANUAL YCG, Inc. 2603 Reach Rd, Rear Bldg Williamsport, PA 17701 Phone: 570-494-1150 | Fax: 570-494-1021...
-
Page 2: Specifications
The Chrono-Tester was designed to aid in troubleshooting ballistic testing procedures. The Chrono-Tester can detect and verify pulse activity on light screens allowing the user to determine if the light screen is detecting the ballistic event. The Chrono-Tester can also output a pulse interval which can be used to test cables and Chronographs. -
Page 3: Operating Instructions
OPERATING INSTRUCTIONS Pulse Detection: 1) Power up the Chrono-Tester and place unit in Track Mode. 2) Connect output of chronograph light screens to Start Out & Stop Out inputs on Tester. 3) Connect the Start In & Stop In inputs of Tester to output of chronograph. - Page 4 Chrono-Tester User Manual Testing a Chronograph: 1) Power up Chrono-Tester and place unit in Test Mode. 2) Connect the Start Out on the Tester to the Start input on the chronograph. 3) Connect Stop Out on the Tester to the Stop input on chronograph.
