LxR AB-100 User Manual

Hide thumbs
1
2
3

Advertisement

Table of Contents

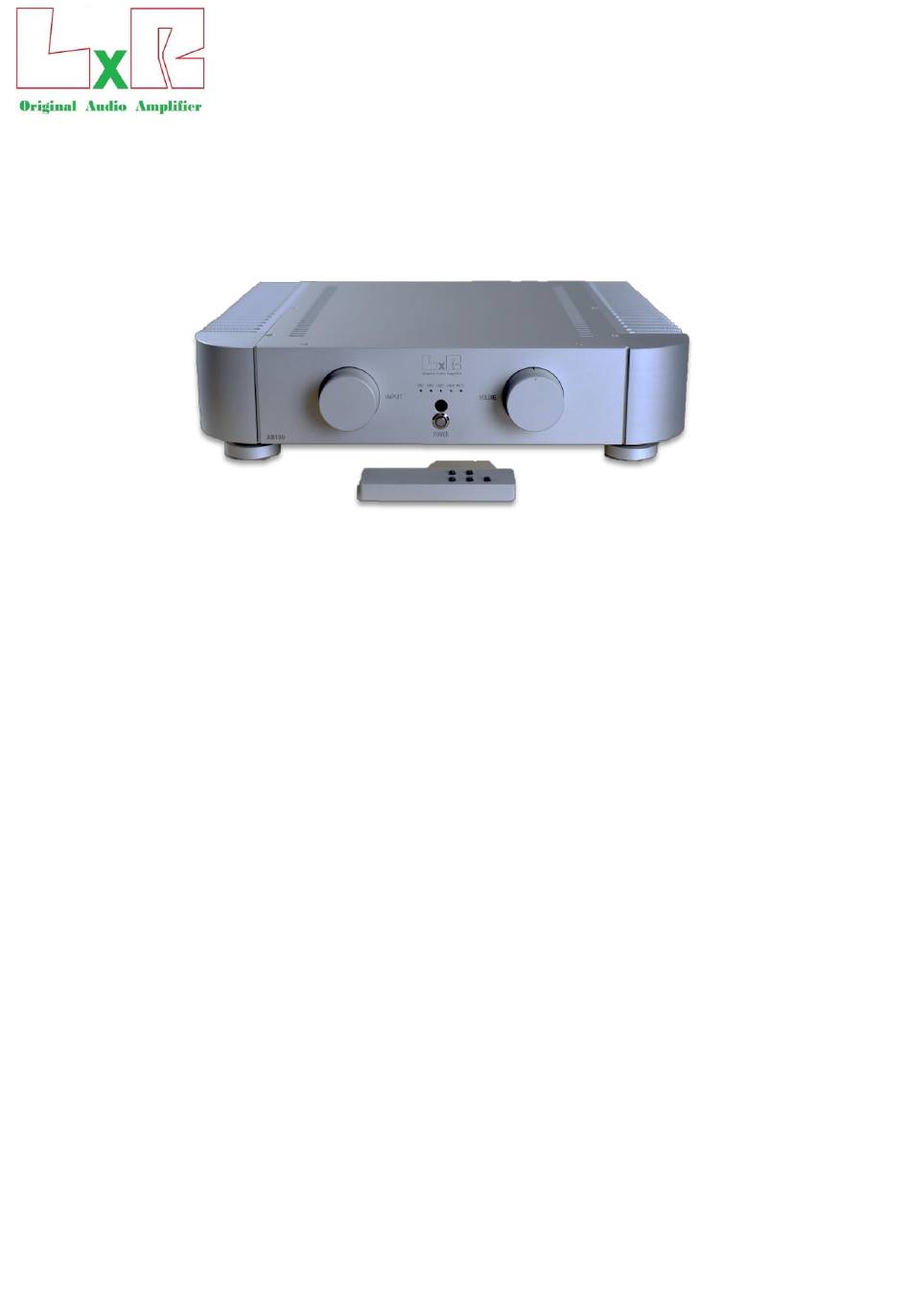

AB-100 Amplifier

User Guide

1. Getting started

Please put your AB-100 Amplifier (machine) on a plat and stable surface. Avoid direct sunlight, heat and moisture.
Make sure the room is ventilated to ensure the full operation of the chiller. Make sure the machine is turned off
before plugging in.
The RCA jacks and torque guards on this machine has different colors for easily setup. The right channel jack is red,
and the left is black. Please use the best quality signal cables, power cables and speaker cables. Make sure all
cables are flawless, and fully plugged in.
Please unplug the machine should it be unused for a certain period of time.
※ Do not open the shell. Any deconstruction or reconstruction of the machine will have unpredictable results. LxR
holds no responsibility should the machine be damaged due to such conducts.
AB-100 Amplifier is not designed for self repair. Please contact technicians for any problems.
※ Clean the machine only with dry soft cloth.
※ Do not use benzoyl or volatile solvents on the machine.
※ This User Guide is for AB-100 only. LxR will not voluntarily notify any changes in appearance or specifications.

2. Contents

‧AB-100 Amplifier
‧Power cable
‧Remote x1
‧User guide, Warranty Card
※ If there is anything missing, please contact your local dealer or agents.

3. Machine Installation

(1) Plug in the power cable to the machine and the power outlet.
(2) Plug the speaker cable to the speak outlet, and the signal cable to the signal outlet on the rear panel.
※Make sure it is fasten well to avoid poor connection. When connecting the RCA, make sure analog signal cable is
accurately connect.
(3) Press Remote or the Power button on the panel to turn on AB-100, and switch to the desire signal.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AB-100 and is the answer not in the manual?

Questions and answers

Related Manuals for LxR AB-100

Summary of Contents for LxR AB-100

  • Page 1: User Guide

    ※Make sure it is fasten well to avoid poor connection. When connecting the RCA, make sure analog signal cable is accurately connect. (3) Press Remote or the Power button on the panel to turn on AB-100, and switch to the desire signal.
  • Page 2 3. Display indicator The blue indicator will light up when mode is in use. 4. Input Turn the input button clock-wise to switch to AB-100. The audio switch controller on the remote control has the same function. 5. Volume To adjust the volume of the speaker. You can also choose to use the remote control to adjust the volume.

  • Page 3: The Remote Control

    6. Size:L420mmxW390mmxH97mm 7. Weight: +(-)13KG Trouble Shooting In case of error, please check the follow items. Most errors occur due to malfunction or misconnection. Should errors remain unsolved, please contact your local dealer or LxR technical service. Error Indicator Solution No power 1.
