- Page 1 VM-HD4 4ch HD CCTV Multiplexer Manufactured exclusively for CCTV Camera Pros...
-
Page 2: Front Panel

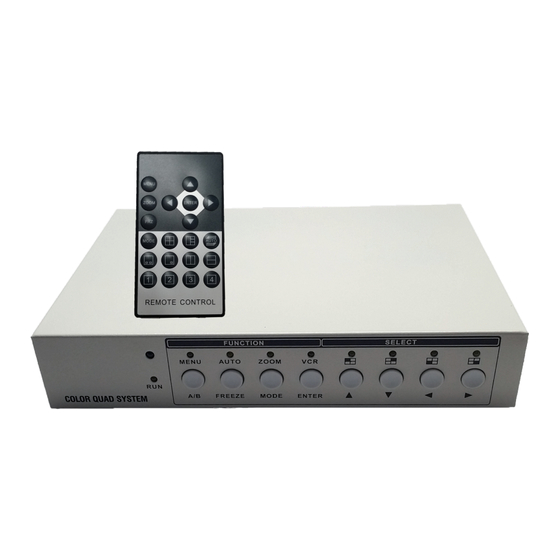

1. Introduction The VM-HD4 is a 4 channel CCTV video multiplexer (quad processor) that works with HD-TVI, HD-CVI, AHD, and Analog CCTV cameras (CVBS). Users can view live video from multiple cameras on a HD TV or monitor at up to 4K resolution via HDMI video output and 1080p resolution via the VGA video output. -
Page 3: Zoom Function
5．FREEZE Function Press the FREEZE button to enter freeze mode. Press again to exit the freeze mode. Show/Hide the FREEZE font on the right top of monitor simultaneously. 6．AUTOSEQ Function Press the AUTOSEQ button to enter/exit the AUTOSEQ mode, show/hide the AUTOSEQ font on the right top of monitor simultaneously. -
Page 4: Image Setting
As follows, move to the desired position using the UP/DOWN/LEFT/RIGHT button, select the item using the ENTER button, press the MENU button to apply the new setting and back to the main menu. Update! 4K resolution is also supported now via HDMI output. ●“DATE/TIME”：... -
Page 5: Pip Setting
LEFT/RIGHT button, press the MENU button to back to the main menu. 9.6 SYSTEM RESET As follow, move to the desired position using the LEFT/RIGHT button, press ENTER button to enter and back to the main menu. 10.Specifications Model VM-HD4 Video Input 4CH BNC HD-TVI, AHD, HD-CVI, analog CCTV supported... - Page 6 Video Output HDMI, VGA, CVBS Power Supply 12V/1A Consumption <4W Working Temperature -10℃~+55℃ Working Humidity 10%~90% Dimension 210x150x40mm For more information, please visit the product page on our website. https://www.cctvcamerapros.com/HD-TVI-AHD-CCTV-Mutliplexer-p/vm-hd4.htm...
