Uni-Com 66392 Operating Instructions

Please read all of the operating instructions carefully before use and keep in a safe place for future reference.
Quick set up guide
The chime unit and bell
push are already paired
together so your door
chime is ready to use
upon unpacking it from
the box.
Sound selection
The portable door
chime has 26 selectable
sounds.
Installation
Test the units in their
intended locations before
you fix them in place.
The operating range
will be reduced if the
bell push is mounted
on metal or double
glazed uPVC door
frames. Electrical / wi-fi
equipment and the
thickness or number of
walls between the bell
push and the chime
unit will also reduce
the operating range.

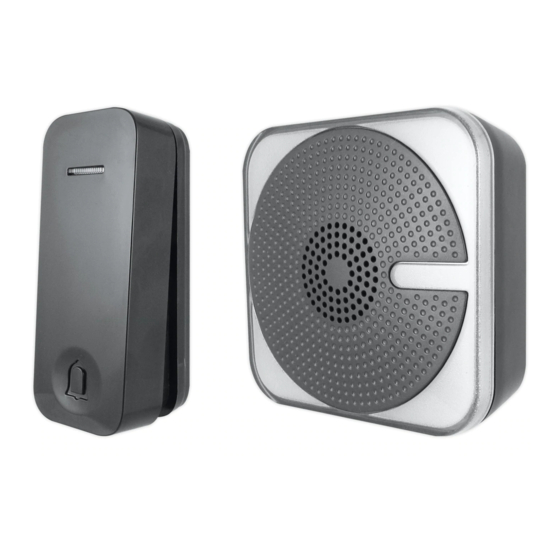

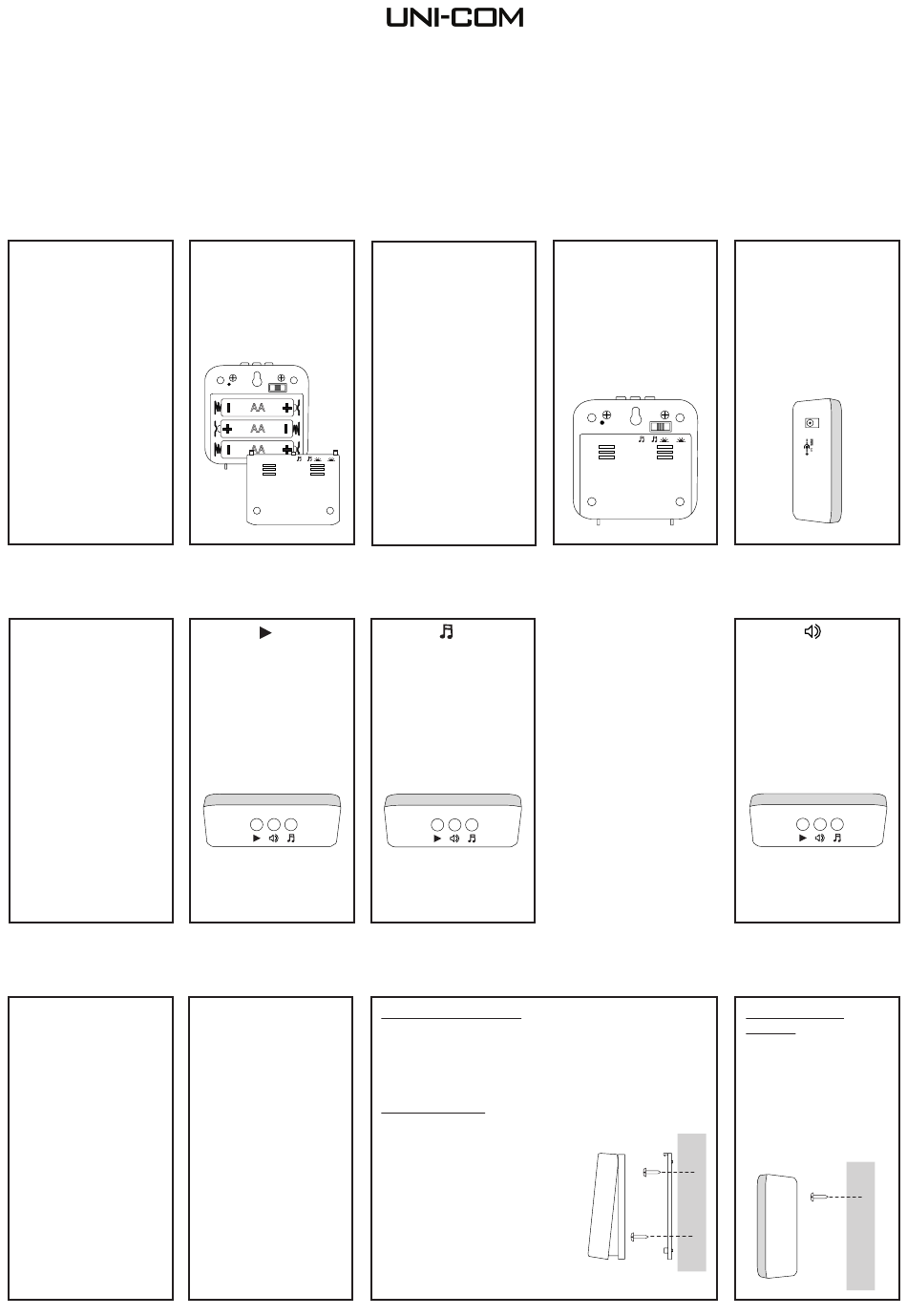

Portable door chime with kinetic bell push

Operating instructions

Slide down and remove
the battery cover on the
back of the chime unit.
Insert 2 x AA batteries,
observing the polarity
markings.
AA
AA
AA
+
Press the button on
the top of the chime
unit to play the currently
selected chime sound.
The bell push must be
mounted the correct way
up (as per the arrow on
the back plate).
The chime unit can be
used wall mounted or
free-standing around
your home and garden.
Model: 66392
Note;
The bell push is powered
by kinetic power -
no battery required.
The action of pressing
the bell push generates
the power to transmit
a signal to sound the
chime unit.
The bell push LED will
flash red to confirm it is
transmitting.
Press the button on
the top of the chime
unit to cycle through
the chime sounds. Stop
when you hear the one
you want.
Bell push - adhesive pad
Ensure the surface is clean and flat before applying.
Bell push - screws
Insert a flathead screwdriver
into the slot on the top of the
bell push. Gently push and
twist to remove the back plate.
Punch out the holes on the
back plate. Attach to the wall
using the wall plugs and
screws supplied.
Slide the switch on the
back of the chime unit
to select your operating
mode:
• Chime sound only
• Chime sound and light
• Light only
+

Volume control

Note;
The chime unit can be
alternatively powered
direct from the mains
using a 5V adaptor
(not supplied)
Press the button on
the top of the chime unit
to cycle through the 4
volume levels.
Chime unit - wall
mounted
Fit the screw to the wall
using the wall plug.
Insert the screwhead into
the keyhole on the back
of the chime unit and
slide down.
