EN
User Manual
Microwave
Oven
DKK57302BK

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DKK57302BK and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Dieter Knoll Collection DKK57302BK

Summary of Contents for Dieter Knoll Collection DKK57302BK

  • Page 1 User Manual Microwave Oven DKK57302BK...

  • Page 2: Table Of Contents

    CONTENTS Safety information Using the accessories Safety instructions Additional functions Product description Hints and tips Control panel Care and cleaning Before first use Troubleshooting Daily use Energy efficiency Clock functions Subject to change without notice. SAFETY INFORMATION Before the installation and use of the appliance, carefully read the supplied instructions.

  • Page 3: General Safety

    Children shall not carry out cleaning and user maintenance • of the appliance without supervision. General Safety Only a qualified person must install this appliance and • replace the cable. WARNING: The appliance and its accessible parts • become hot during use. Care should be taken to avoid touching heating elements.

  • Page 4: Safety Instructions

    Only a qualified person can carry out any service or repair • operation that involves the removal of a cover which gives protection against exposure to microwave energy. Do not heat liquids and other foods in sealed containers. • They are liable to explode. Use only utensils that are suitable for use in microwave •...

  • Page 5: Electrical Connection

    • Always take care when moving the appliance as it is heavy. Always use Mounting screws 3.5x25 mm safety gloves and enclosed footwear. • Do not pull the appliance by the handle. Electrical connection • Keep the minimum distance from other appliances and units.
  • Page 6 • This appliance is supplied with a main – do not keep moist dishes and food plug and a main cable. in the appliance after you finish the cooking. – be careful when you remove or install the accessories. WARNING! Risk of injury, •...

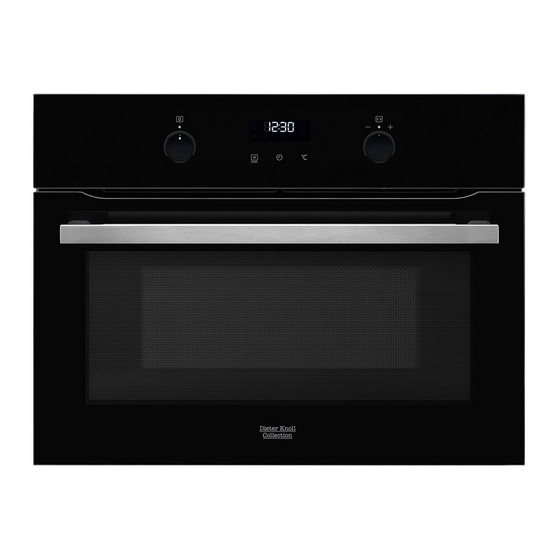

  • Page 7: Product Description

    • Fat and food remaining in the appliance • Only use lamps with the same can cause fire and electric arcing when specifications. the microwave function operates. Service • Clean the appliance with a moist soft cloth. Only use neutral detergents. Do •...

  • Page 8: Control Panel

    Accessories For cookware, cake tins, roasts. Wire shelf CONTROL PANEL Buttons Sensor field / Button Function Description MICROWAVE To set the microwave function. Hold it for more than 3 seconds to turn on or turn off the oven lamp. You can turn on the light also when the oven is turned off.

  • Page 9: Daily Use

    Clean the oven and the accessories Put the accessories and the removable before the first use. shelf supports back to their initial position. DAILY USE Retractable knobs WARNING! Refer to Safety chapters. To use the appliance press the knob. The knob comes out.

  • Page 10: Clock Functions

    When the time set for Duration ends, the 3. Turn the control knob to change the signal sounds and the oven stops. microwave power settings. The power 6. Turn the knob for the heating functions setting changes in 100 Watt steps. to the off position.

  • Page 11: Setting The Minute Minder

    5. Turn the knob for the heating functions 2. Press to confirm and set the to the off position. minutes. The display shows and the set hour. Setting the TIME DELAY "00" flashes. function 3. Turn the knob for the temperature to 1.

  • Page 12: Using The Accessories

    After 90% of the set time the signal flash in the display. Press any button sounds. to stop the signal. 5. When the set time ends the signal sounds for 2 minutes. "00:00" and USING THE ACCESSORIES WARNING! Refer to Safety chapters.

  • Page 13: Hints And Tips

    Residual heat indicator When you turn off the oven, the display (°C) shows the residual heat indicator if the temperature in the oven is more than 40 120 - 195 °C.Turn the knob for the temperature left 200 - 230 or right to check the oven temperature.

  • Page 14: Microwave Defrosting

    Microwave defrosting Remove defrosted pieces subsequently. Put the frozen, unwrapped food on a small To cook fruit and vegetables without upturned plate with a container below it, or defrosting them first, you can use a higher on a defrosting rack or plastic sieve so microwave power.

  • Page 15: Microwave Cooking

    Cookware / Material Microwave function Microwave Combi function De‐ Heating, frosting Cooking Cookware for microwave use, e.g. crisp pan Grill Put a pan on the first shelf position to collect fat. Preheat the empty oven before cooking. Grill only thin pieces of meat or fish. GRILL Use the first shelf position.
  • Page 16 Tips for Microwave Cooking / Defrosting results Possible cause Remedy The food is not defrosted, cold Cooking time was too Set longer cooking time. Do or underdone after cooking short. not increase microwave time ends. power. The food is overheated at the Microwave power was too Set lower power and longer edges, but underdone in the...
  • Page 17 CAKES / PASTRIES Set power for 200 W unless specified otherwise. (min) Standing time (min) Yeast cake 1 piece 2 - 3 15 - 20 Cheesecake, set 100 W 1 piece 2 - 4 15 - 20 Dry cake 1 piece 2 - 4 15 - 20 Bread...
  • Page 18 REHEATING (min) Standing time (min) Sauce 200 ml 1 - 3 Soup 300 ml 3 - 5 Ready frozen meals 0.5 kg 10 - 15 2 - 5 Convenience food 0.5 kg 6 - 9 2 - 5 MELTING (kg) (min) Chocolate / Chocolate icing 0.15...
  • Page 19 Microwave Combi function Combine functions: Grill and Microwave. Use this function to cook food in a shorter time and to brown it. (kg) (°C) (min Standi time (min) Chicken, half, use 0.55 x Round glass dish, the second shelf Ø 26 cm position pieces Au gratin pota‐...

  • Page 20: Care And Cleaning

    MICROWAVE COMBI FUNCTION Use the wire shelf. (°C) (min) Potato Grill + MW 44 - 46 Turn container gratin, around by 1/4, 1.1 kg halfway through the cooking time. Chick‐ Grill + MW 44 - 46 en, 1.1 CARE AND CLEANING WARNING! Refer to Safety chapters.

  • Page 21: Troubleshooting

    Removing the shelf supports Replacing the lamp Before maintenance, make sure that the WARNING! Risk of electric oven is cool. There is a risk of burns. shock. The lamp can be hot. To clean the oven, remove the shelf supports. 1.

  • Page 22: Energy Efficiency

    Problem Possible cause Remedy The oven does not heat up. The fuse is blown. Make sure that the fuse is the cause of the malfunc‐ tion. If the fuse is blown again and again, contact a qualified electrician. The lamp does not operate. The lamp is defective.

  • Page 23: Environmental Concerns

    Keep breaks between baking as short as to minimum 3 - 10 minutes before the end possible when you prepare a few dishes of cooking. The residual heat inside the at one time. oven will continue to cook. Residual heat Use the residual heat to warm up other If a programme with the Duration or End dishes.
  • Page 24 867344888-A-192019...
