Summary of Contents for PROAUDIO ELECTRONICS UHF-5100
- Page 1 PROAUDIO ELECTRONICS PROFESSIONAL UHF PLL 100CH WIRELESS AUDIO SYSTEM UHF-5100 / UHF-5000BP Suitable for Hearing Aid systems, Educational systems, Tour guide and general applications Made in China...
-
Page 2: Parts Description

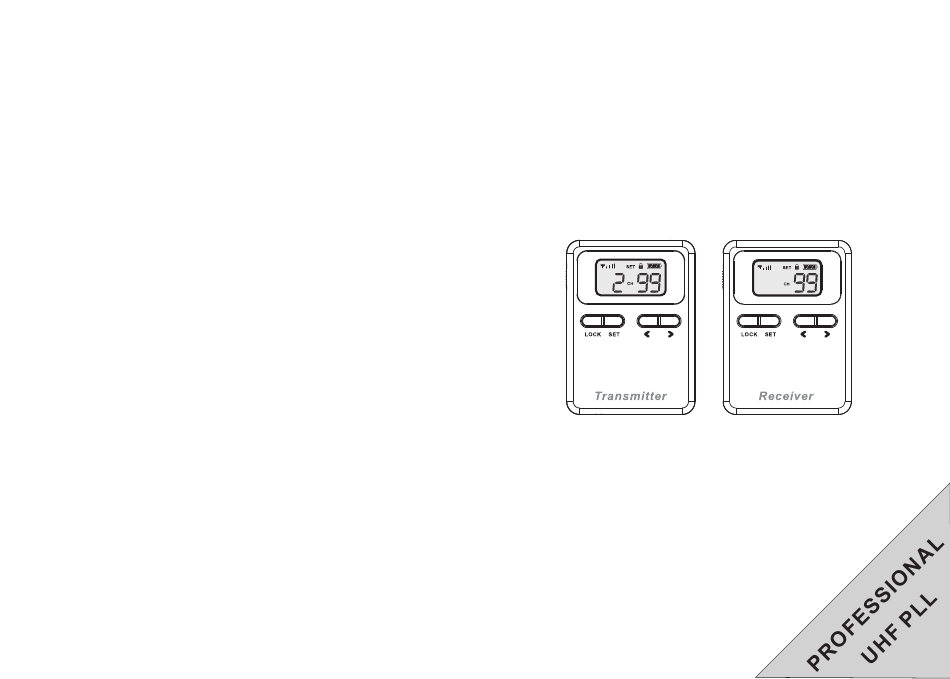

PARTS DESCRIPTION PARTS DESCRIPTION Mobile Transmitter Table Top Transmitter MODE LOCK LINE IN MIC IN 1. DC IN (+5V) 1. ON/OFF Switch 2. ON/OFF Switch 2. LCD Display 3. Lock Button Mode 4. Set Button 4. Lock 5. UP 5. Down DOWN 6.Up 7. -
Page 3: Operation
PARTS DESCRIPTION OPERATION Mobile Receiver Mobile Transmitter 1. POWER ON/OFF: Slide ON/OFF switch on the side to ON position to power on the transmitter. LCD display will light. Slide ON/OFF switch to OFF position to power off the transmitter. 2. LOCK/UNLOCK: This device defaults to lock status when it is turned on. - Page 4 OPERATION OPERATION 3. Press and hold LOCK button to enter setup mode. Charging of mobile transmitter and receiver Press MODE button repeatedly to select transmitter channel, volume and input mode. And press < or > 1. The mobile transmitter and receiver have built-in button to set up the parameter.
-
Page 5: Specifications
SPECIFICATIONS SPECIFICATIONS Mobile Transmitter Mobile Receiver Frequency Range: fixed permitted Frequency Range: fixed permitted Channel Space: 250KHz Channel Space: 250KHz Transmitting Power: Receiving Sensitivity: +10dBm -110dBm Mic input Voltage: 20mV Output Power: 50mW/16ohms Current Consumption: 80mA Current Consumption: 40mA Frequency Response: 20Hz-16KHz Frequency Response: 20Hz-16KHz...
