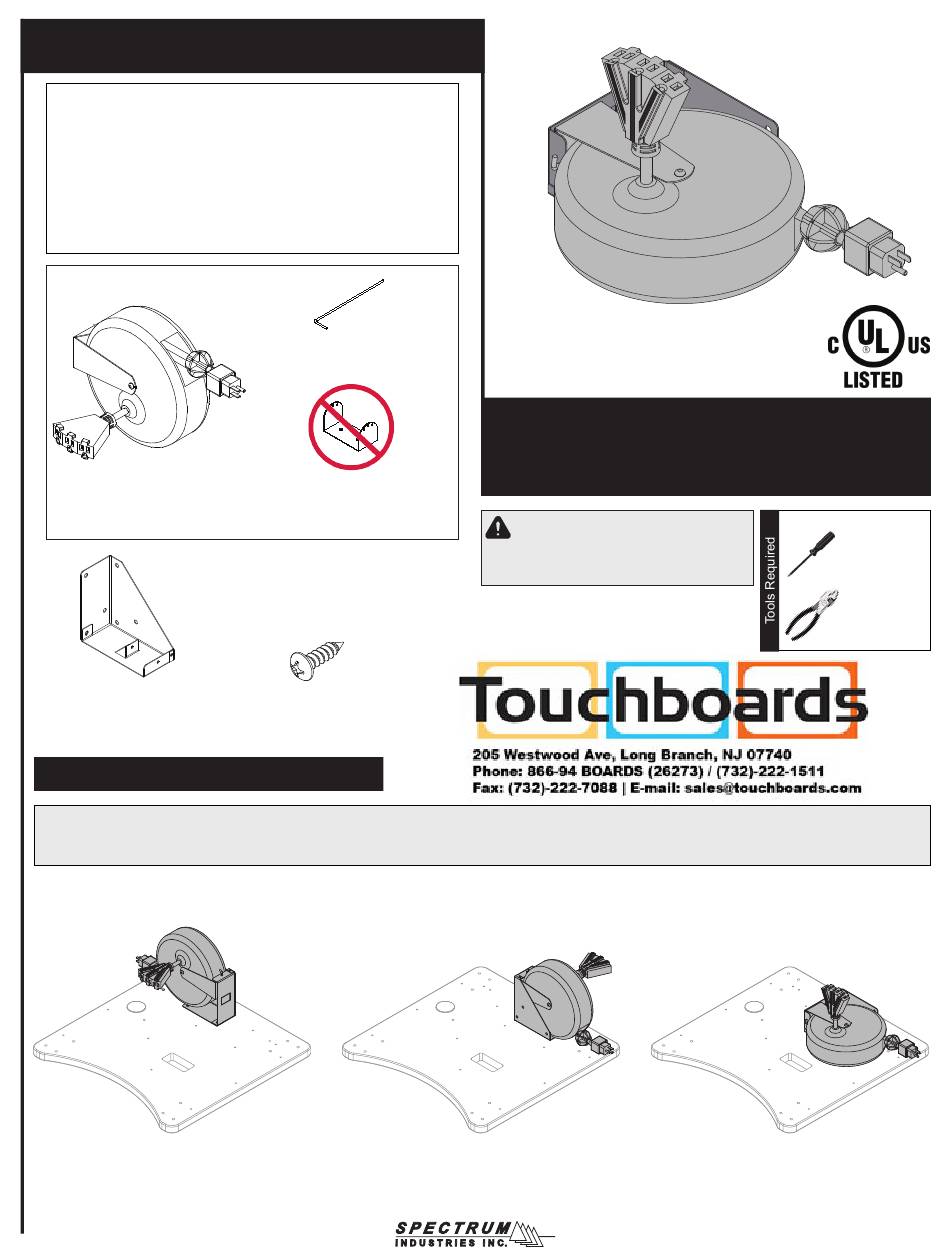

Assembly Instructions
Before you begin, please make sure all parts and proper quantities
are included. Any parts damaged during shipment must be reported
within 15 days of receipt. To report information regarding damage, to
purchase parts or accessories, or if you have any questions, please
contact us at:
www.spectrumfurniture.com
715-723-6750, 800-235-1262
Thank you for purchasing Spectrum products!
(1) 0114320
cord reel with 15' cord
(1) 0115882
mounting bracket
1. Determine mounting position
Note: The cord reel takes up rack-unit height and depth in all 3 positions. If you plan to install rack-mount equipment at or near the base panel, be
aware of the height and depth available for the components before installing the cord reel. Setting the cord reel onto the base panel will give an
idea of how much space is available in your particular lectern before the reel is installed.
base panel
left power cord
(takes up 6RU)
Important
(1) connector pin
(included with reel)
(1) cord reel bracket
(included with reel-not used
with mounting bracket)
(3) 0101382
#14 x 7/8" PHSM screw
base panel
Vertical
Universal Cord Reel Kit
99037
The cord reel is intended to provide
temporary access to electrical outlets for
Spectrum mobile lecterns. Check local
electrical codes prior to installation.
Vertical
right power cord
(takes up 6RU)
Phillips
screwdriver
pliers
base panel
Horizontal
right power cord
(takes up 3RU)
0115955R1 Page 1 of 4
Advertisement
Table of Contents
Related Manuals for Spectrum Industries 99037
Summary of Contents for Spectrum Industries 99037
- Page 1 715-723-6750, 800-235-1262 Thank you for purchasing Spectrum products! (1) connector pin (included with reel) Universal Cord Reel Kit 99037 (1) 0114320 (1) cord reel bracket cord reel with 15’ cord (included with reel-not used with mounting bracket) The cord reel is intended to provide...
- Page 2 2. Attach mounting bracket to lectern 3. Attach cord reel to mounting bracket 1. Set the mounting bracket into one of the 1. Align the cord reel mounting hole with the mounting three positions below. bracket hole and install the connector pin. Phillips 2.
- Page 3 4. Secure cord reel pliers 1. With the connector pin installed securing the reel, use pliers to bend the straight end of the connector pin to an approximate 45° angle. Figure 4. connector pin Figure 4 5. Route power cord 1.
- Page 4 CAUTION 1. USE IN COVERED AREAS. OUT OF RAIN & WEATHER 2. NOT FOR USE IN AREAS REQUIRING EXPLOSION-PROOF FIXTURES. 3. REELS WITH ELECTRICAL OUTLETS: • Do not overload - See instruction manual for amperage ratings. • Pull entire cord from reel when using outlet. 4.
