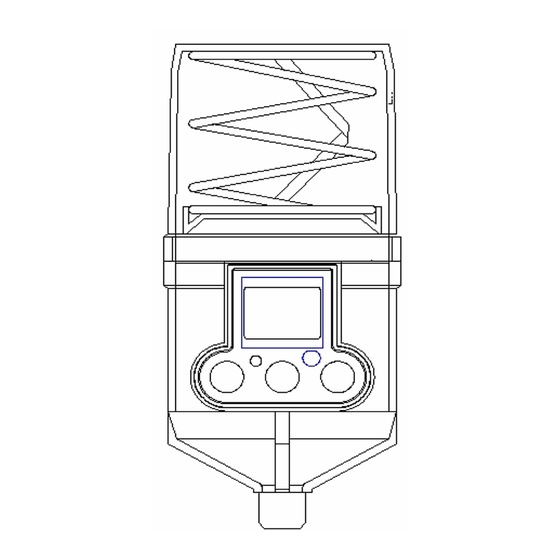

- Page 1 Streamliner Grease Dispenser STREAMLINER M USER MANUAL TRICO CORPORATION Page 1/11...
- Page 2 Thank you for your purchasing STREAMLINER M, the new and unique electro-mechanical single-point automatic grease dispenser from Trico Mfg. Corp. To ensure the safe operation and proper installation of the STREAMLINER M unit, we strongly recommend that you read the following information carefully before use.
- Page 3 STREAMLINER M USER MANUAL Unit Assembled * SERVICE PACK - 125cc Grease Type Date Installed Date Expiry GREASE POUCH BATTERY EXTERNAL STICKER PACK DUST COVER - 250cc Grease Type Date Installed Date Expiry GREASE POUCH BATTERY EXTERNAL STICKER PACK DUST COVER...
- Page 4 RED LED (WARNING) RESET unit back Starts to blink when any of to default setting the following conditions is encountered: Low battery power Motor is overloaded Low grease level Other abnormal condition Please verify the cause of malfunction or failure. BUTTONS SELECT DISPENSING PERIOD - Six different dispensing rates are available (1M, 2M,...
-
Page 5: Motor Overload
FEATURES – LCD DISPLAY DISPENSING PERIOD SET XX –01, 02, 03, 06, 12 or H month set ※ “H” denotes “Half” DAYS TILL REPLACEMENT Indicates the remaining days till replacement (days to expire) DAYS AFTER MALFUNCTION E-XX indicates the number of days since the unit stopped. (All functions stopped except TEST MODE) ※... -
Page 6: Features - Function
FEATURES – FUNCTION FUNCTION BUTTON DESCRIPTION Select one of the six different dispensing rates (1M, 2M, 3M, 6M, 12M and Half Month) SET DISPENSING The dispensing rate can be changed during PERIOD operation. Depress the button for 2 seconds to turn unit on and off. -
Page 7: First Installation
IMPORTANT: Be sure to fill the steel pipe or copper tube with lubricant prior to installation. 8. STREAMLINER M units have a shelf life of one-year with a one-year warranty from date of delivery. Page 7/11... -
Page 8: Service Procedure
), Low Battery signal ( ), and Days after expire ( When this occurs, change the STREAMLINER M SERVICE PACK, which consists of one each of the following: A GREASE POUCH (125cc or 250cc), a BATTERY PACK (DC 4.5V), and a disposable Dust Cover. - Page 9 TROUBLESHOOTING GUIDELINE TROUBLE CAUSE REMEDY Possible electrical malfunction of Depress RESET button to Test unit. LCD SCREEN DISPLAYS Replace unit as necessary. CPU or circuit. FAULT OR RED LIGHT BLINKING OR BLANK SCREEN. The BATTERY PACK must be BATTERY PACK missing, faulty or UNIT WON’T OPERATE replaced with each incorrectly installed.
- Page 10 DISPENSING RECOMMENDATIONS In the chart below are some guidelines for bearing lubrication requirements. Requirements may vary with individual bearing types or operating conditions. Ball & Roller Bearings Dispensing Dispensing Bearing Shaft Diameter 125cc 250cc Equivalents Equivalents Half 121-305mm(4-3/4” ∼ 12”) 16.6cc/day month 105-120mm(4-1/8”...
-
Page 11: Specification
NOTE: Technical information is subject to change without notice. WARRANTY: Trico Mfg. Corp. guarantees the product to be free of defects in material and workmanship for a period of 12 months from date of delivery. Warranty is limited to replacement of the product. There is no consequential loss covered by the Warranty.
