Klever LC Display User Manual

Lcd 2.5 display

Hide thumbs

Table Of Contents

Quick Links

User manual

Klever

LCD 2.5 display

Table of Contents

Need help?

Do you have a question about the LC Display and is the answer not in the manual?

Questions and answers

Summary of Contents for Klever LC Display

Page 1 User manual Klever LCD 2.5 display...
Page 3: Table Of Contents
Content Content: 1. Quick-start ..........................4 2. Function of each button ......................6 3. Display content ........................10 4. Settings ..........................12 5. Imprint ..........................16 www.klever-mobility.com...
Page 4: Quickstart
When the E-KEY pairing function is enabled, the bicycle has its own individually programmed display. In this case your Klever bike can only operate an E-KEY with the same ID. It is not possible to activate your Klever bike with an E-KEY of another bike.
Page 5: Www.klever-Mobility.com

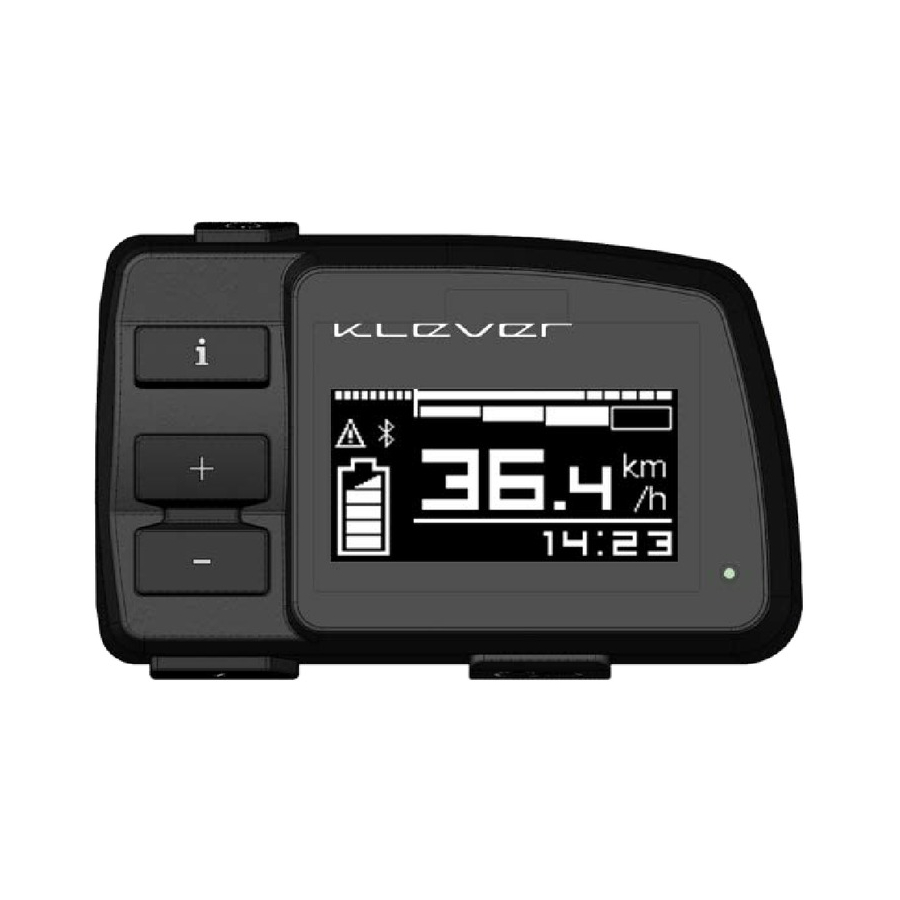

Top left Switch between clock, range, trip, odo, SOC and fitness data Plus (+) Middle left Increase support level Minus (-) Lower left Reduce support level Turbo Lower left edge Starting and pushing aid (at rest); strongest support (while pedalling) www.klever-mobility.com...
Page 6: Function Of Each Button
Press the INFO button shortly in order to go through the available rider’s data: Time, SOC, trip, km-day, odo, kcal. kcal. See below. Please note: the available data may vary depending on bike Image 5 model and software version. www.klever-mobility.com...
Page 7 Image 6 Time (hh:mm) (Image 7) The time can be adjusted by the settings menu of the display, by synchronising with your smartphone or with the Klever service tool at you local dealer. Image 7 SOC (State of Charge) (Image 8) The SOC indicates the current battery capacity by %, in this case 85%.
Page 8 The daily mileage will be set to zero at midnight 00:00 every day. Image 9-1 odo (Image 10) Accumulated kilometres during the lifecycle of your Klever, in this case 1234 km. When the odo reaches 99999 km. it will be reset to 0. Image 10...
Page 9: Image
Please note: using the turbo mode as a pushing aid to roll your Klever bike out of the garage, or roll it up a ramp, please make sure that you have selected the L program. When using the pushing aid in the M or H mode, you may have serious difficulty to keep the pace of the bike.
Page 10: Display Content
Of course, it is possible to select the levels according to your own liking, e.g. driving in the plane with the highest level of support (H). Image 13 www.klever-mobility.com...
Page 11 Image 14-1 get from the system. Power consumption (Image 14-2) This shows the actual power consumption. The longer or more bars, the more your battery is being drained. Of course, higher consumption will decrease your range more rapidly. Image 14-2 www.klever-mobility.com...
Page 12: Settings
When you turn on the system the display will read “insert E-KEY”. You have to insert the E-KEY to activate the system. In case you start to ride without inserting the E-KEY, then the alarm will set off and the motor will be locked. www.klever-mobility.com...
Page 13 You can decide to keep the head and tail light on or off when the system is on. Due to the EU regulations for Speed Pedelecs (45 kph), the head and tail light on Speed models will always be turned on automatically. Setting EXTRA Image 17 www.klever-mobility.com...
Page 14 Setting EXTRA > USB 5V An extra wire comes from the display which allows you to connect the Klever USB charger for charging your device with 5V. This function is disabled by default. The USB charger is an optio- nal accessory. Please ask the Klever team or authorised dealers.
Page 15 You can use your smartphone as a dashboard to show the information from the bike system by Bluetooth connection. Setting RESET Trip and Kcal can be reset to zero. Or the bike setting can be reset to the factory default values. Image 18 www.klever-mobility.com...
Page 16: Imprint
© Copyright All rights reserved. Reprinting, translation and copying of any kind or any other use, such as on electronic media, even in part without written permission of the Klever Mobility Europe GmbH is not allowed. May 2019 edition. Klever Mobility Europe GmbH Dieselstr.
Page 17 Notes www.klever-mobility.com...
Page 18 Notes www.klever-mobility.com...
Page 20 Content Klever Mobility Europe Klever Mobility NL b.v. Afslag 8 3981 PD Bunnik The Netherlands tel. 0031 30 210 2905 infoNL@klever-mobility.com www.klever-mobility.com...
