Summary of Contents for E.L.B. ELBCam 1

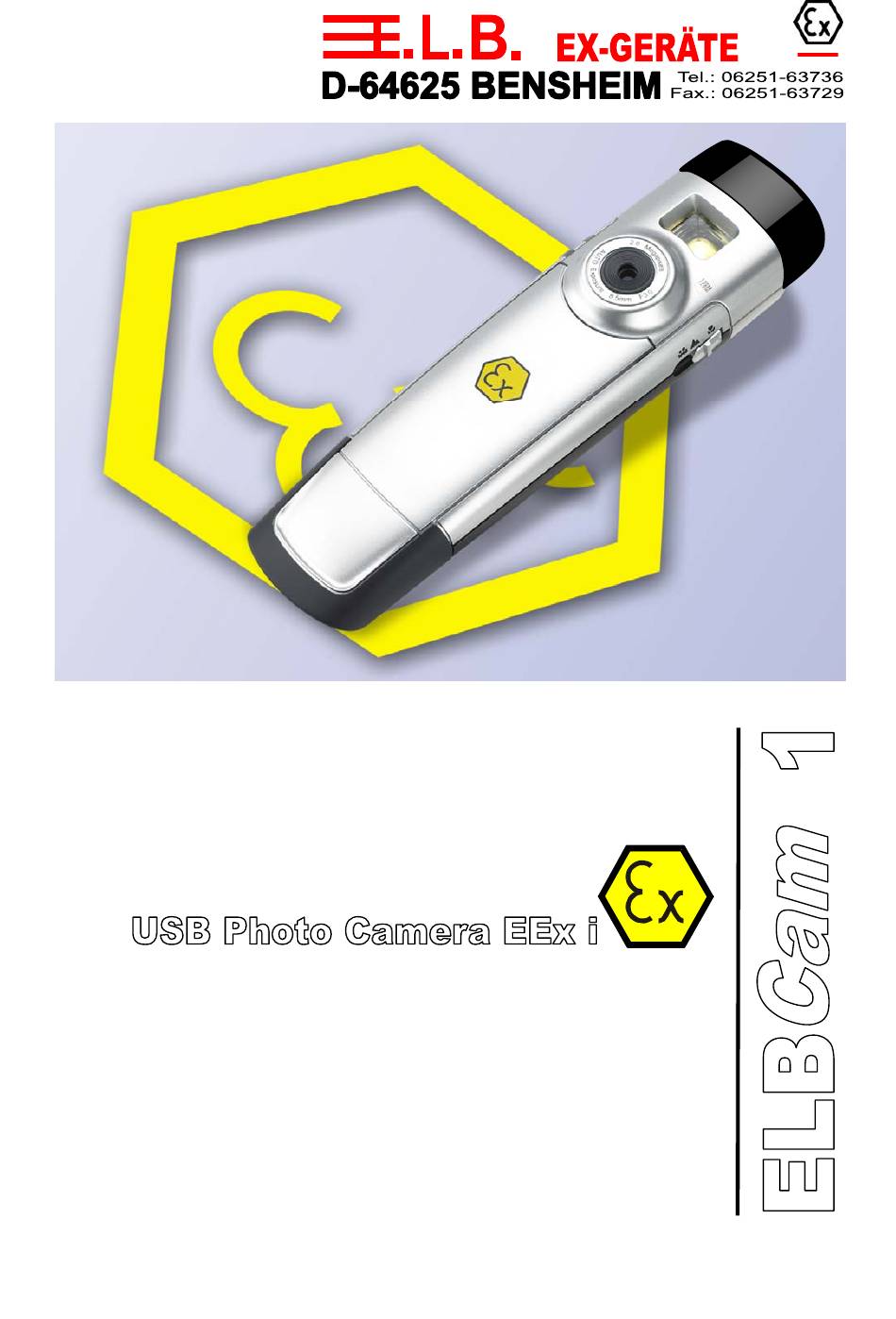

- Page 1 Technical Documentation 10.4.2007...
-
Page 2: Table Of Contents
DVD enclosed with the camera. Functional Description The intrinsically safe USB camera ELBCam 1 can take photos in a hazardous area (Ex area, potentially explosive atmosphere), that can be edited immediately on a PC in a safe area via the USB port. This does not require special software, because the camera acts like an external hard disk drive and the photos are saved as JPG files. -
Page 3: Operating
ELBCam 1 - Technical Documentation Special notes concerning the explosion protection: • In a hazardous area the locking bag for USB and battery cover must be used. • Do not open the USB or battery cover in hazardous areas. •... -
Page 4: Technical Data
ELBCam 1 - Technical Documentation Editing: • Connect the camera with a USB port of your PC, if necessary with the extension lead enclosed with the camera. The camera is now powered by the PC and appears like an additional hard disk drive. -
Page 5: Safety Advices
ELBCam 1 - Technical Documentation Case: IP protection: IP20 Material: Dimensions: 130 x 32 x 22 mm Weight: ca. 50 g (without battery and bag) Cleaning: Clean with a soft dry cloth or brush. There are gaps and holes in the case, so do not use a fluid cleansing agent. -
Page 6: Appendix
ELBCam 1 - Technical Documentation Appendix Liability The technical data specified for hazardous areas comply with the values certified in the European EEx approval. The user bears the sole responsibility of examining the equipment with regard to its suitability for the intended application and environmental conditions.
