INSTRUCTIONS
Operation / Maintenance
PFC
PulseFlow Controller
SIMCO's PulseFlow Controller (PFC) DC pulse and steady state ionizer power supply.
SECTION 1. Description
2. Specifications
3. Safety Procedures
4. Installation
5. Operating Instructions
6. Cleaning & Maintenance
7. Customer Service
8. Replacement Parts
9. Warranty
Publication 5100941 Rev A
1
2257 North Penn Road
Hatfield, PA 19440
Phone: (215) 997-0590
Fax: (215) 997-0590
Advertisement
Related Manuals for Illinois Tool Works SIMCO PulseFlow PFC
Summary of Contents for Illinois Tool Works SIMCO PulseFlow PFC

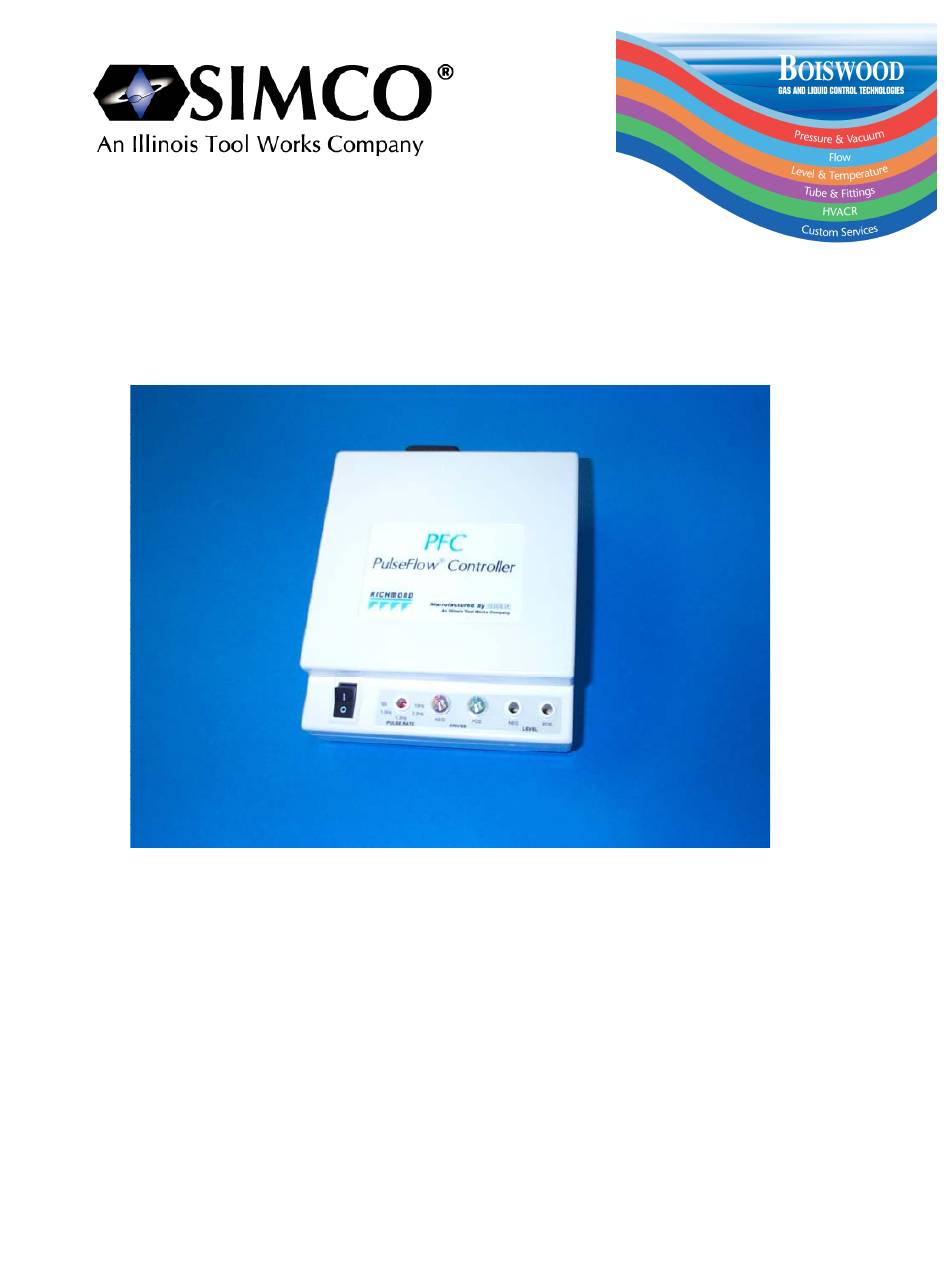

- Page 1 2257 North Penn Road Hatfield, PA 19440 Phone: (215) 997-0590 Fax: (215) 997-0590 Publication 5100941 Rev A INSTRUCTIONS Operation / Maintenance PulseFlow Controller SIMCO’s PulseFlow Controller (PFC) DC pulse and steady state ionizer power supply. SECTION 1. Description 2. Specifications 3.
- Page 2 PulseFlow Controller Installation & Operating Instructions Section 1 Description The PulseFlow Controller incorporates both Pulse and Steady State DC technologies and is the power source for the PulseBar line of products. The PulseFlow controller has four operational ranges from 10hz to 1.0hz in pulse mode and SS for Steady State DC operation. One PulseFlow Controller can power up to 20 electrode pairs of PulseBar.
- Page 3 WARNING! When working on ANY electrical equipment be sure to disconnect the unit from its power source to prevent any kind of electrical shock. As with any electrical appliance, do not operate any PulseBar or ionizer system in an area where flammable vapors, chemicals, or explosives are present. IMPORTANT All Simco equipment and power cords MUST be properly grounded to ensure proper operation and operator safety.
- Page 4 Figure 2. A single PulseBar can be attached to a controller or in multiple hookups using the HV-1 adapter. PulseBar Installation For best results, do not block or hinder the flow of ionizing air by placing large objects directly in front of or below the PulseBar.
-
Page 5: Section 5 Operating Instructions
1. Secure the green ground wire and lug to the power supply case using the grounding post located on the back of the power supply. Figure 3. PulseFlow Controller Rear Panel Section 5 Operating Instructions CAUTION! Do not turn on any Simco power supply until all PulseBars and other devices are connected to the completed system assembly. - Page 6 Although the PFC Controller is calibrated at the factory, it may require additional adjustments for your specific work area. Use a Charge Plate Monitor, such as Simco’s EA-2, to check for decay times as well as ion balance. Refer to the respective Owners Manual for set up and operational procedures. A complete check of any ionization system should be made before doing any type of calibration or adjustments.
- Page 7 Line Voltage Conversion To convert the PFC from 115 VAC to 230 VAC or from 230 VAC to 115 VAC, it is necessary to change a selector switch inside the unit: 1. Turn power to unit off and unplug unit. 2.
-
Page 8: Section 9 Warranty Information
Description Part Number PFC-2 115 V, 50/60 Hz 4005184 PFC-2 230 V, 50/60 Hz 4005185 PFC, UK, 23OV, 50/60Hz 4009734 4105828 Circuit Board w/Connectors 5050718 Wall Bracket HV-2 Connector Kit 5050538 HV-4 Connector Kit 5050539 SECTION 9 Warranty Information Simco warrants the PulseFlow Controller to be free of defects in components, workmanship, or materials for a period of one year from date of purchase.
