XTT XLT-DRL1801 User Manual

High powered drill
Hide thumbs

Advertisement

Quick Links

Download this manual
WARNING
To reduce the risk of injury, operator must read and understand this user manual.
ADVERTENCIA
Para reducir el riesgo de lesiones, el operador debe leer y comprender este manual del usuario.
AVERTISSEMENT
Pour réduire le risque de blessure, l'opérateur doit lire et comprendre ce manuel d'utilisation.
W ARNUNG Um das Verletzungsrisiko zu reduzieren, muss der Bediener diese Bedienungsanleitung lesen und verstehen.

Advertisement

loading

Summary of Contents for XTT XLT-DRL1801

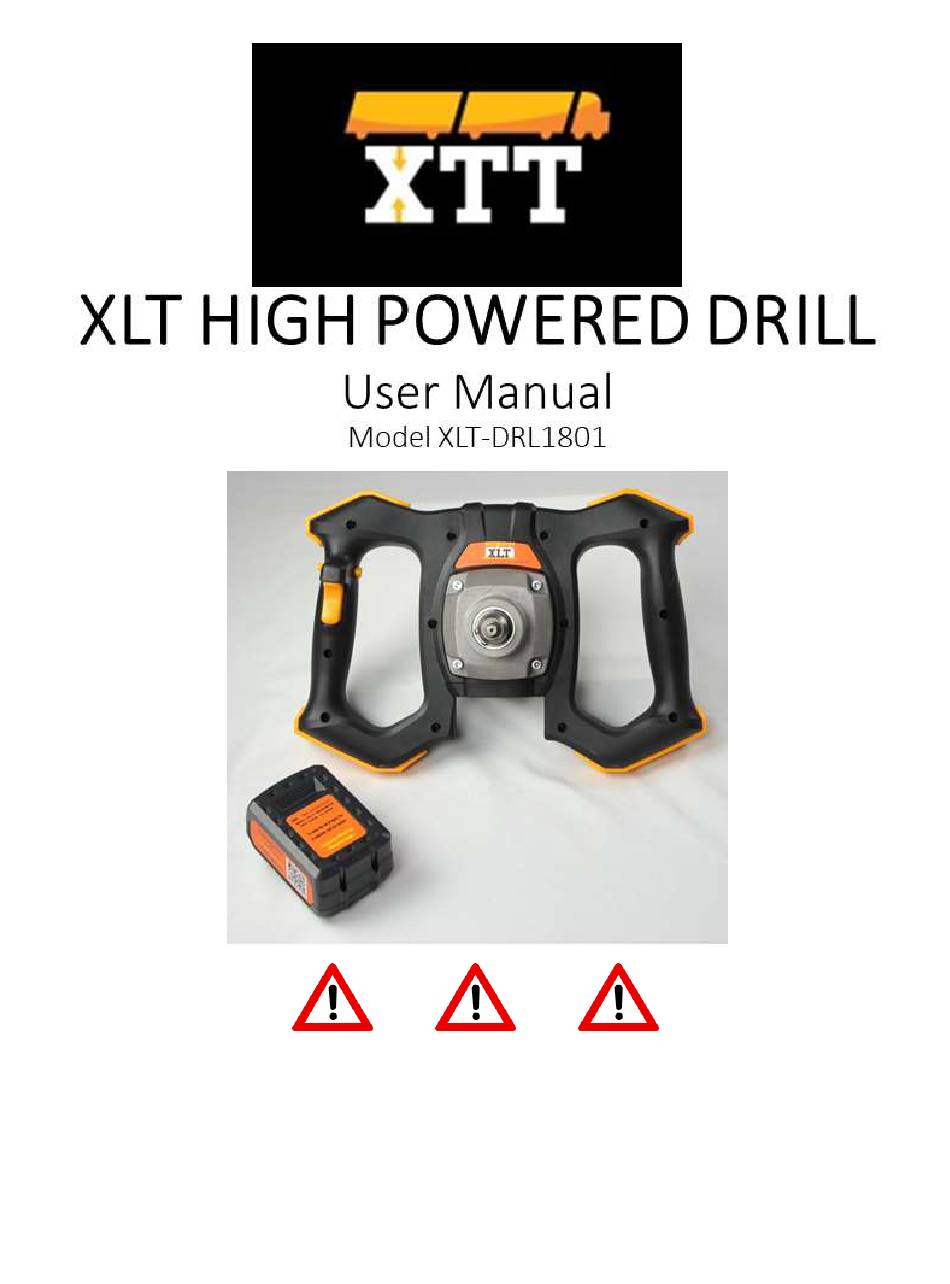

  • Page 1 WARNING To reduce the risk of injury, operator must read and understand this user manual. ADVERTENCIA Para reducir el riesgo de lesiones, el operador debe leer y comprender este manual del usuario. AVERTISSEMENT Pour réduire le risque de blessure, l'opérateur doit lire et comprendre ce manuel d'utilisation. W ARNUNG Um das Verletzungsrisiko zu reduzieren, muss der Bediener diese Bedienungsanleitung lesen und verstehen.
  • Page 2 L2 Trucking Products Inc XLT-UM-DRL1801-RV190613 Page 2...
  • Page 3 XLT DRILL KIT COMPONENTS The main component of this kit is the drill itself. This is a high powered drill that requires a T.E.D. anytime it is used. A T.E.D. is a torque elimination device specifically made for use with the XLT drill to create a safe user environment. As you can see by the picture on the previous page, this drill is not like most standard drills available.

  • Page 4: General Safety Warnings

    GENERAL SAFETY WARNINGS Read all safety warnings, instructions, illustrations and specifications provided with this drill, charger and battery. Failure to follow all instructions listed here may result in electric shock, fire and/or serious bodily injury. Save all warnings and instructions for future reference. WORK AREA AND TOOL SAFETY Do not operate drill or charger in explosive atmospheres, such as in the presence of flammable liquids, gases or dust.
  • Page 5 DRILL USE AND CARE The drill must ALWAYS be used with a T.E.D. Do not use the drill if the trigger type switch does not turn it on and off properly and immediately. A drill that cannot be controlled with the switch is dangerous and must be repaired. Remove the battery pack from the drill before making any adjustments, changing accessories, or storing.
  • Page 6 BATTERY AND CHARGER USE AND CARE Specialized XLT 18-volt batteries are required to be used with this high-powered drill. Use only those batteries to ensure safety and eliminate potential for drill damage or even worse: injury, fire or explosion during use. Recharge the XLT 18-volt batteries only with the XLT 18-volt charger supplied for use with this drill.

  • Page 7: Warranty

    WARRANTY The warranty for the battery charger and battery is 1 year from purchase and 18 months for the drill. This warranty shall be void if: 1) any modifications are implemented which have not been expressly approved by L2 Trucking Products, 2) use of non-authorized replacement parts, 3) misuse or failure to maintain or service the product in accordance with L2 written policies, 4) not adhering to the limitations of use as specified within this manual.
  • Page 8 T.E.D. (torque elimination device) The drill must ALWAYS be used with a T.E.D. Failure to use a T.E.D. can potentially injure the operator due to the high torque generated by the drill when it is needed. A T.E.D. is a device that limits the movement of the drill during use and if used properly eliminates the chance for injury to the operator of the drill.
  • Page 9 Top picture is the drill with a Permanent T.E.D.. The lower two pictures show the drill being used on a trailer with the permanent T.E.D. adapter attached to the trailer. Also shown is the temporary T.E.D. strap used to allow immediate use of the XLT drill until all trailers have a T.E.D. plate installed on them.
  • Page 10 DRILL OPERATION – Trailer Legs Lock the trailer coupler onto the shaft (with handle removed) used to raise and lower the trailer. This is done by sliding the coupler over the shaft and inserting the supplied (with the coupler) latch pin through both the coupler and the shaft. If using the T.E.D.
  • Page 11 DRILL OPERATION – Grain Hopper Doors Place the grain coupler over the low speed nut on the grain hopper trailer door. Raise the lock plate, if it exists, to allow for both nuts to freely turn. If using the T.E.D. straps, attach the straps properly to the trailer. Use of a T.E.D. is required to prevent the drill from rotating when in operation.
  • Page 12 DESCRIPTION OF DRILL This view of the drill is from the front. You can see in the middle of the drill is the 3/8 inch male attachment used to hold the couplers. The drill output shaft has an inset that will be used to connect the coupler (via a set screw) more securely onto it.

  • Page 13: Corporate Contact Information

    CORPORATE CONTACT INFORMATION The X-Press Lift Tools is a group of tools within the X-Press Truck Tools division. The corporate entity is L2 Trucking Products Inc with headquarters located in England, AR USA. Much information for use of this high-powered drill system, including instructional videos, are online at: www.xpresslifttools.com The hours for reaching L2 Trucking Products are 8AM-430PM, Mon-Fri USA CT.
  • Page 14 www.xpresstrucktools.com L2 Trucking Products Inc XLT-UM-DRL1801-RV190613 Page 14...
