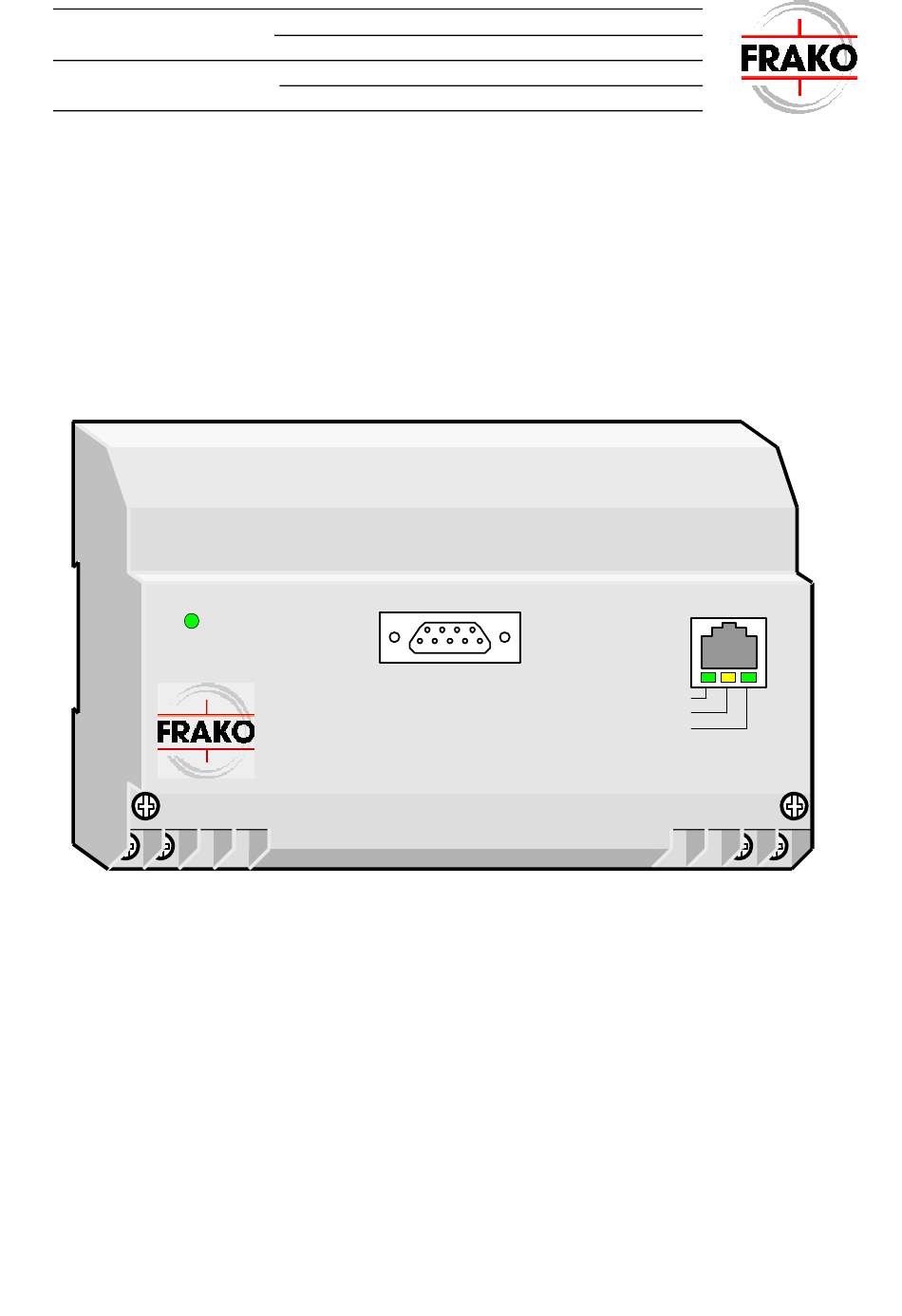

- Page 1 EMG 1500-PN Operating manual Gateway EMG 1500 - PN Serial Ethernet Connect EMG 1500-PN Bus error Gateway Energy Management System Made in Germany...
- Page 2 Safety instructions EMG 1500 Operating Manual Safety instructions !!! Important, read before commissioning !!! • The user must ensure that all operators are familiar with these operating instructions and follow them at all times. • The operating instructions must be read carefully before the instrument is mounted, installed and commissioned.
-
Page 3: Table Of Contents
EMG 1500 Operating Manual Contents Contents Page Quick start...................4 Function ....................5 2.1 Operating principle of the EMG 1500-PN ...........5 2.2 Communication with the EMG 1500-PN ..........5 2.3 Connections ..................5 2.4 Display....................5 Installation...................6 3.1 Mounting ....................6 3.2 Electrical connections................6 3.2.1 Power supply...................7 3.2.2... -
Page 4: Quick Start
Figure 1 on page 6. Only the connection to the power supply is needed. ⇒ The EMG 1500-PN is connected to the PC by a null-modem (crossover) cable (see Section 3.2.4, page 8). The software EMG-SW is used to carry out all network settings i.e. -
Page 5: Function
Various programs and devices can be linked to the EMG 1500-PN Gateway. • The SYSTEM-SW is used to configure the EMG 1500-PN. • The EMIS 1500 central unit uses the EMG 1500-PN to access the individual instruments in the Energy Management System and collect their data. -
Page 6: Installation
Installation EMG 1500 Operating Manual 3. Installation 3.1 Mounting The EMG 1500-PN has a standardized enclosure for mounting on a 35mm DIN rail. It can be mounted in any orientation. Important: The instrument is only intended for installation in distribution boards or control cabinets. -
Page 7: Power Supply
3.2.2 Connection to the Ethernet The EMG 1500-PN is connected to a hub or switch via the shielded RJ45 jack (10BaseT) at the front of the instrument. The pin assignment corresponds to that of an MDI port, so that a 1:1 cable must be used. -
Page 8: Rs-232 Connection
Always avoid mixing various cable types. 3.2.4 RS-232 connection The EMG 1500-PN must be configured using the “SYSTEM-SW” software. To do this the instrument is connected to a PC by a crossover RS-232 (null-modem) cable. This cable is not included in the scope of supply. -
Page 9: Commissioning
4.2 Instrument self-test The Run LED comes on when the power supply to the instrument has been switched on. After about 20 seconds the EMG 1500-PN is ready to operate and the Run LED begins to flash once per second. -
Page 10: Assigning The Ip Address Using „System-Sw
• Clicking the Configure button informs the EMIS 1500 how the 1500-PN addressed. • Clicking the IP Settings button displays the EMG-SW configuration software, enabling the user to assign the EMG 1500-PN an IP address (see section 4.3, page 9). -
Page 11: Assigning A Bus Address
® Every device connected to the FRAKO Starkstrombus must have a unique bus address. As factory default setting the EMG 1500-PN has the bus address 1. The software SYSTEM-SW can be used to assign the EMG 1500- PN another bus address in the "Bus coupler configuration" dialog box. -
Page 12: Instrument Operation
(see Section 4) no further adjustments are necessary. 5.1 Displays When the Run LED flashes, this indicates that the EMG 1500-PN is in operation. This LED comes on continuously (i.e. without flashing) for the first 20 seconds after the instrument is switched on. -
Page 13: Guide To Commissioning And Troubleshooting
One or more EM Check bus connections to The Bus error LED devices on the the devices comes on. FRAKO- (see Section 3.2.3) Starkstrombus cannot Check whether the be accessed. correct bus address has been set in the device. -
Page 14: Technical Data
(also EN 61 010 - 1) Serial interface: Type RS232 V.24 Protocol: FRAKO internal protocol Transmission: 115200 Baud, 8N1 ® Connection to FRAKO Starkstrombus Electrical connection: as per EIA RS 485 Transmission rate: 76,8 kbit/sec ® Protocol: FRAKO-Starkstrombus Ethernet interface:... -
Page 15: Figure 3: Enclosure Dimensions
EMG 1500 Operating Manual Technical data 140,0 mm Serial Ethernet Connect EMG 1500-PN Bus error Gateway Energy Management System Made in Germany 11,4 mm 4,5 mm 5,0 mm 59,2 mm Figure 3: Enclosure dimensions EMG 1500 ab SW V 1.05 Dokument V1.10... - Page 16 EMG 1500-PN Sales programme Power capacitors for low voltage Power factor correction systems Power factor correction systems with reactors Modules for power factor correction systems Active filters Dynamic compensation of harmonics Reactive power control relays Maximum demand control systems Mains monitoring instruments...
