McCue CartPark Architectural Installation Instructions Manual

CartPark
4 BARRIER INSTALLATION INSTRUCTIONS
10
14
15

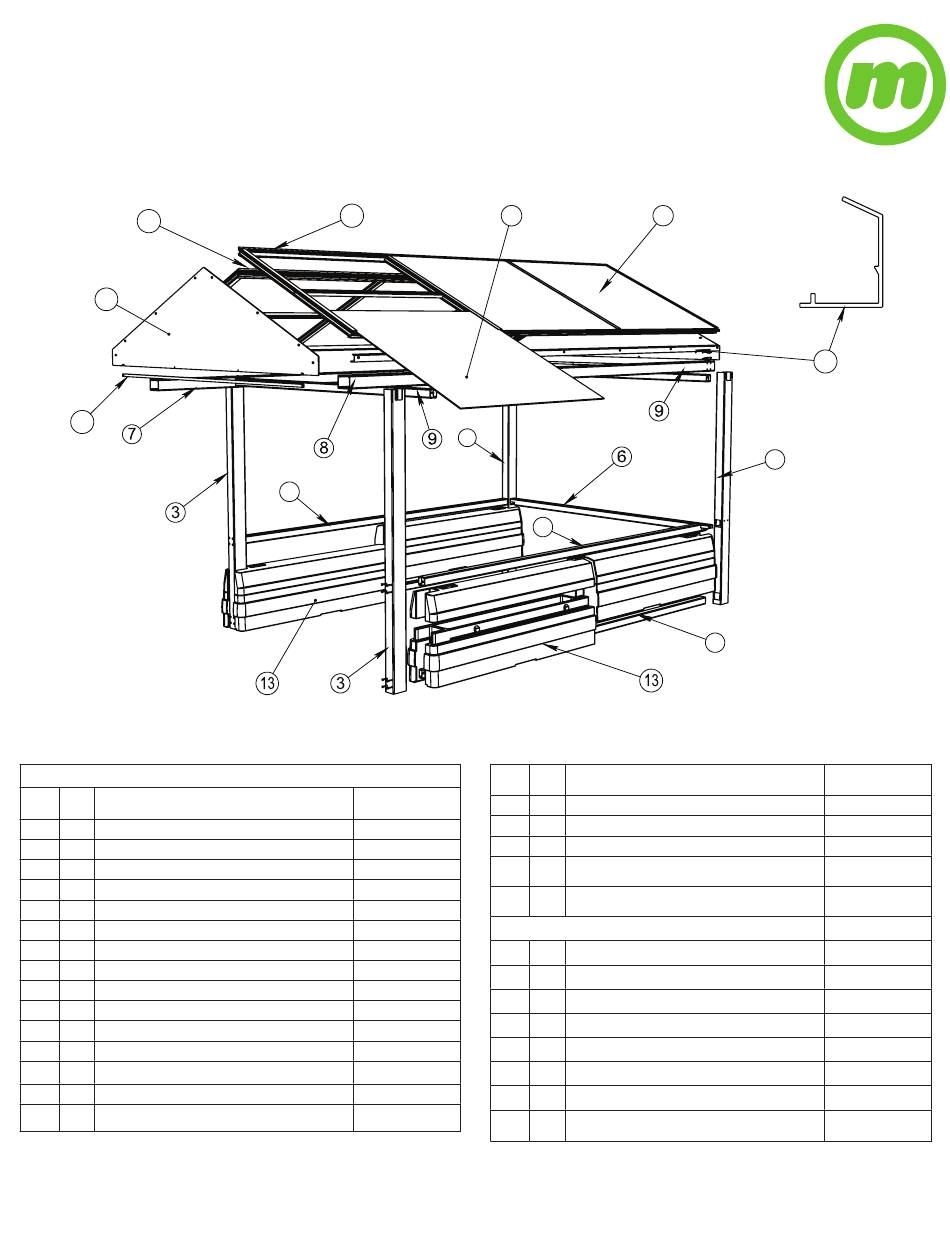

Bill Of Materials
CARTPARK ARCHITECTURAL
ITEM # QTY DESCRIPTION
1 1 Rear Left Vertical Post, 83.25" LONG
2 1 Rear Right Vertical Post, 83.25" LONG
3 2 Front Vertical Post, 83.25" LONG
4 2 Lower Side Rail, Barrier Connector 135.4375" LONG
5 2 Upper Side Rail, Guidance Rail Notched 135.4375" LONG
6 1 Back Stop Bar, 95.1875" LONG
7 1 Top Rail Left, Horizontal Bar, 164.0" LONG
8 1 Top Rail Right, Horizontal Bar, 164.0" LONG
9 2 Crossbar Along Top, 96.875" LONG
10 2 Roof Frame Assembly, 164" x 5 6.0" x 2 .0" FRAME
4 Roof Slope, 53.6875" LONG
4 End Roof Slope with Tri-Glass Panel Mounting Holes
2 Top Ridge, with Weather Foam Tape, 164" LONG
2 Bottom Sill, 164" LONG
6 Roof Cross Member, with Double Sided Tape 52.75" LONG
Questions?
Call McCue Customer Care at 800.800.8503
©2013 McCue Corporation, 13 Centennial Drive, Peabody, MA 01960, USA. MAR 2014
Architectural
10
5
McCUE DRAWING
OR PART #
CCASFABVPRL
CCASFABVPRR
CCASFABVPF
CCASFABLSR
CCASFABUSR
CCASFABBR
CCASFABTRL
CCASFABTRR
CCPASFABCR
CCPASFABRF
CCPASFABRS
CCPASFABRSE
CCPASFABRDG
CCPASFABSILL
CCASFABCM
11
1
5
ITEM # QTY DESCRIPTION
11 6 Roof Panels, Acrylic Solid Sheet, 55.125" x 5 3.75" x . 177"
12 2 Retainer, Roof Drip Edge, 164.0" LONG
13 4 Plastic Barrier, HDPE, 70.25" x 1 2.0" x 2 0.0"
14 2 Tri-Glass Panel, High Impact Acrylic, 100.875" x 2 8.3"
x . 236"
15 2 Tri-Glass Panel Aluminum Support, 88.98"x.75"x.50"
CCPAS HARDWARE
QTY DESCRIPTION
ITEM #
130 ¼-20 x 1 .0" Torx Pan Head Screw, Taptite 2000, S/S
7 ¼-20 x 1 ¾" Hex Washer Head Screw, S/S
7 ¼-20 Serrated Washer Nut, S/S
14 ¼-20x¾" Torx Pan Head, Self Tapping Screw, S/S
12 ¼-20x 2 .0" Pan Head Torx
20 Aluminum Shoulder Spacer ¼" ID x ⅜ " LONG
4 #10-32 x ⅜ " Long #2 Drive, Thread Cutting Screw S/S
11
12
2
4
CCPAS-BARRIER-XXX
CCPASFABTPNLSP
mccue.com
McCUE DRAWING
OR PART #
CPAS-RFPNL
CCASFABRET
CCPAS-TRIPNL
