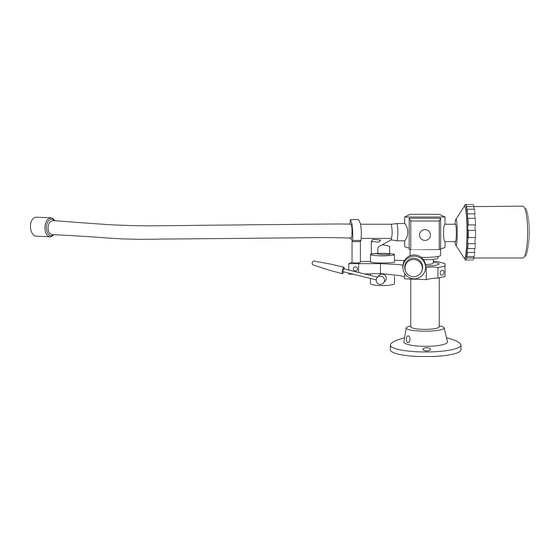

TA-1
I N S T R U C T I O N S
s p e c i f i c a t i o n s
Total Length
Spindle to pivot distance
Stylus to pivot distance
Overhang
Offset angle°
Cartridge weight range
Total weight
Antiskating
TA-1L
&
&
M A N U A L
TA-1
288mm
216mm
232mm
16mm
22°
15-32g with headshell
580g with
headshell attached:597g
up to 3g
TA-1L
380mm
310mm
322mm
12mm
16.5°
15-32g with headshell
55g with option 325g
weight
610g with
headshell attached:627g
up to 3g

Advertisement

loading
Need help?

Need help?

Do you have a question about the TA-1 and is the answer not in the manual?

Questions and answers

Summary of Contents for Sorane TA-1

  • Page 1 TA-1 TA-1L & I N S T R U C T I O N S & M A N U A L s p e c i f i c a t i o n s TA-1 TA-1L Total Length...
  • Page 2 Included Accessories TA-1 or TA-L Thanks to Cylinder type Base's wider area bite between Sorane column shaft and TT plinth, sound improvement and stability would become dramatic by this parts. Headshell Lock TA-1 Weight Option TA-1L for TA-1L Option Base...
  • Page 3 TA1L. Tracking forse ring Counterweight Mount TA-1 shaft through the Base hole 3-a Locate the tonearm shaft through the hole in the arm base and then fasten the screw with hex key. 3-b Adjust the arm height as turntable plinth surface and tonearm wand should be level.
  • Page 4 (cartridge, plinth, platter, etc.). Customers are requested to make final adjustments after mounting the cartridge, then installing the headshell on your Sorane tonearm. It is important to make sure the stylus is perpendicular to the surface of the record.
  • Page 5 TA-1 Counterweight Standard Main Counterweight Standard subweight "S" 3g Stylus force is added Available cartridge weight by 1 Counter Weight rotation (With headshell) is up to 32g with "S" subweight. TA-1L Counterweight Stanadrd main counter weight Standard subweight "L" 3g Stylus force is added...
  • Page 6 アーム取付け金具 アーム取付け金具 アーム取付け金具 SSBS/B(Sorane Sliding Base with Silver/Black color) is optional parts to replace SME standard base for customer's convenience. Direction of sliding sub-base should point to the turntable spindle, while the mounting distance (the middle of the range of travel for the sliding base), is set by the mounting template.
