AVPro Edge AC-DA28-AUHD User Manual

18gbps 2x8 distribution amp with 2 output zones, hdr
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
AC-DA28-AUHD
User Manual
Page 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AC-DA28-AUHD and is the answer not in the manual?

Questions and answers

Related Manuals for AVPro Edge AC-DA28-AUHD

Summary of Contents for AVPro Edge AC-DA28-AUHD

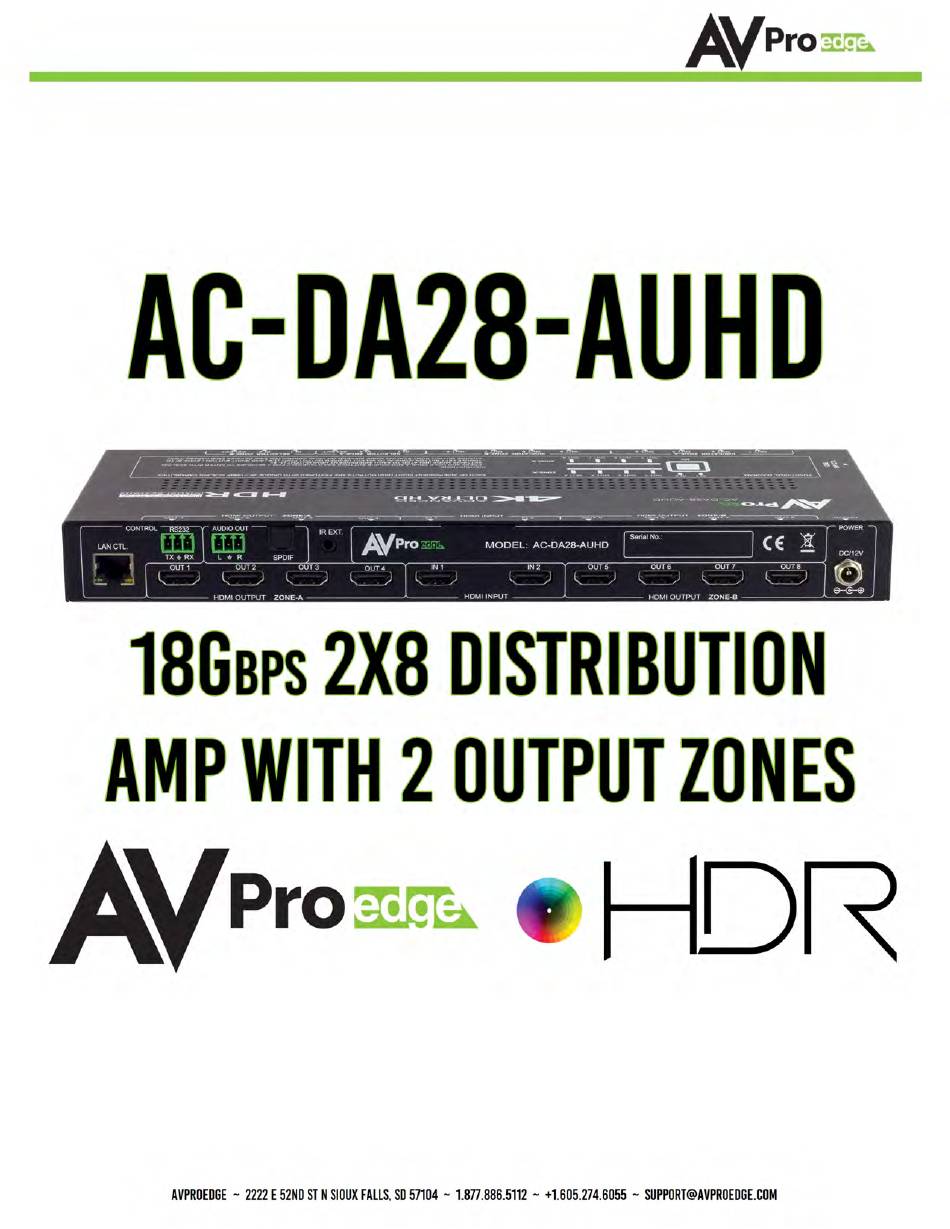

  • Page 1 AC-DA28-AUHD User Manual Page 1...
  • Page 2 (two switchable zones). AC-DA28-AUHD has the ability of pre-emphasis and equalization. Multiple cascaded AC-DA28-AUHD achieves long distance transmission of HDMI signal of more than 15 meters even in 4K (HDR) resolution. AC-DA28-AUHD offers solutions for usage as a component of digital HDMI distributions and entertainment systems also UHDTV/4K retail and general show sites.
  • Page 3 AC-DA28-AUHD Contents Page 3...

  • Page 4: Product Overview

    AC-DA28-AUHD Product Overview ( Model Number: AC-DA28-AUHD) ■ Features ■ Easy to Use: Install in seconds, no need for setting. Distribution: Two HDMI inputs, two switchable output zones. Supports up to 18GBPS with resolutions of 4K60(YUV444), 4K30, 1080p, 1080i, 720p and other standard Video formats, PAL and NTSC.
  • Page 5 AC-DA28-AUHD Warning To reduce the risk of fire, electric shock, or product damage: 1. Do not expose this apparatus to rain, moisture, dripping or splashing and that no objects filled with liquids, such 6. Clean this apparatus only as vases, shall be placed on the with a dry cloth.
  • Page 6 AC-DA28-AUHD Page 6...

  • Page 7: Package Contents

    AC-DA28-AUHD Package Contents ■ ① Main unit. P/N: AC-DA28-AUHD ② 12V 2A Locking Power Supply (100-240V input). ③ Mounting Ears Connections and Operations ■ Connect the HDMI input source into AC-DA28-AUHD Connect the HDMI output equipment (Displays) into AC-DA28-AUHD Insert the DC side of 12V power supply into...

  • Page 8: Back Panel

    AC-DA28-AUHD Back Panel Power input  HDMI inputs (x2)  HDMI outputs (x8)  IR, RS-232 and LAN Control Options (Micro USB on side)  Balanced Analog Out, for extractable 2Ch Audio  Toslink Audio Port - Supports PCM, LPCM (up to 7CH), Dolby Digital, Dolby Digital Plus, DTS, ...
  • Page 9 AC-DA28-AUHD Page 9...
  • Page 10 AC-DA28-AUHD Quick Network Connect to Web Interface: Use the following steps to quickly and immediately connect to the matrix switch: 1. Connect the LAN port into an active router port. 2. On most networks you can simply type the Default IP address into any web browser.
  • Page 11 AC-DA28-AUHD EDID Settings: The AC-DA28-AUHD uses the web interface for EDID management. The default EDID out of the box is 0:1080P 2Ch. Custom EDID settings are below. EDID Settings: 00: 1080P_2CH(PCM) 20: 1080P_3D_8CH_HDR 01: 1080P_6CH 21: 4K30Hz_3D_2CH(PCM)_HDR 02: 1080P_8CH 22: 4K30Hz_3D_6CH_HDR...
  • Page 12 AC-DA28-AUHD EDID Setting Cont. (Notes): Note1: *You can copy the EDID from any output and apply it to any input. Select "Copy EDID from Output x" (x=1-8) then click Apply. This will copy the EDID from the display and apply it to the selected input. This new EDID will be stored as "USER EDID 1".
  • Page 13 AC-DA28-AUHD EDID Settings from the Front Panel: The built in EDIDs can be applied via the front panel as well. To access the EDID management from the front panel. 1. Hold Zone A & Zone B Input buttons for 5 Seconds 2.

  • Page 14: Web Interface: System Settings

    • Enable DHCP RS-232 and TCP/IP Commands The AC-DA28-AUHD can be controlled with either RS-232 or TCP/IP commands. Certain switching or format configurations can only be done using these commands. We recommend using either the MyUART (RS-232 - free) or Hercules (TCP/IP - free) apps as they are very easy to use for sending commands to the machine.
  • Page 15 AC-DA28-AUHD Page 15...

  • Page 16: Maintenance

    AC-DA28-AUHD Maintenance  To ensure reliable operation of this product as well as protecting the safety of any person using or handling this device while powered, please observe the following instructions. • Use the power supplies provided. If an alternate supply is required, check voltage, polarity and that it has sufficient power to supply the device it is connected to.

  • Page 17: Warranty

    AC-DA28-AUHD  Support Should you experience any problems while using this product, first, refer to the Troubleshooting section of this manual before contacting Technical Support. When calling, the following information should be provided: • Product name and model number • Product serial number •...

  • Page 18: Troubleshooting

    AC-DA28-AUHD Troubleshooting Verify Power - Front Panel Pg.7-8 • Try power-cycling the device while all cables are connected Verify Connections - Front Panel Pg.7-8 • If the lights are not showing a connection, try Hot Plugging the cable (remove and re-insert while powered up) Possible EDID issue.
  • Page 19 AC-DA28-AUHD Thank you for choosing AVProEdge! Please contact us with any questions. We are happy to be of service! AVProEdge 2222 E 52nd St N ~ Sioux Falls, SD 57104 1-877-886-5112 ~ 605-274-6055 support@avproedge.com Page 19...
