Version-E180702
Wireless Timing Network
for Display Boards
Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WTN-DB and is the answer not in the manual?

Questions and answers

Summary of Contents for ALGE-Timing WTN-DB

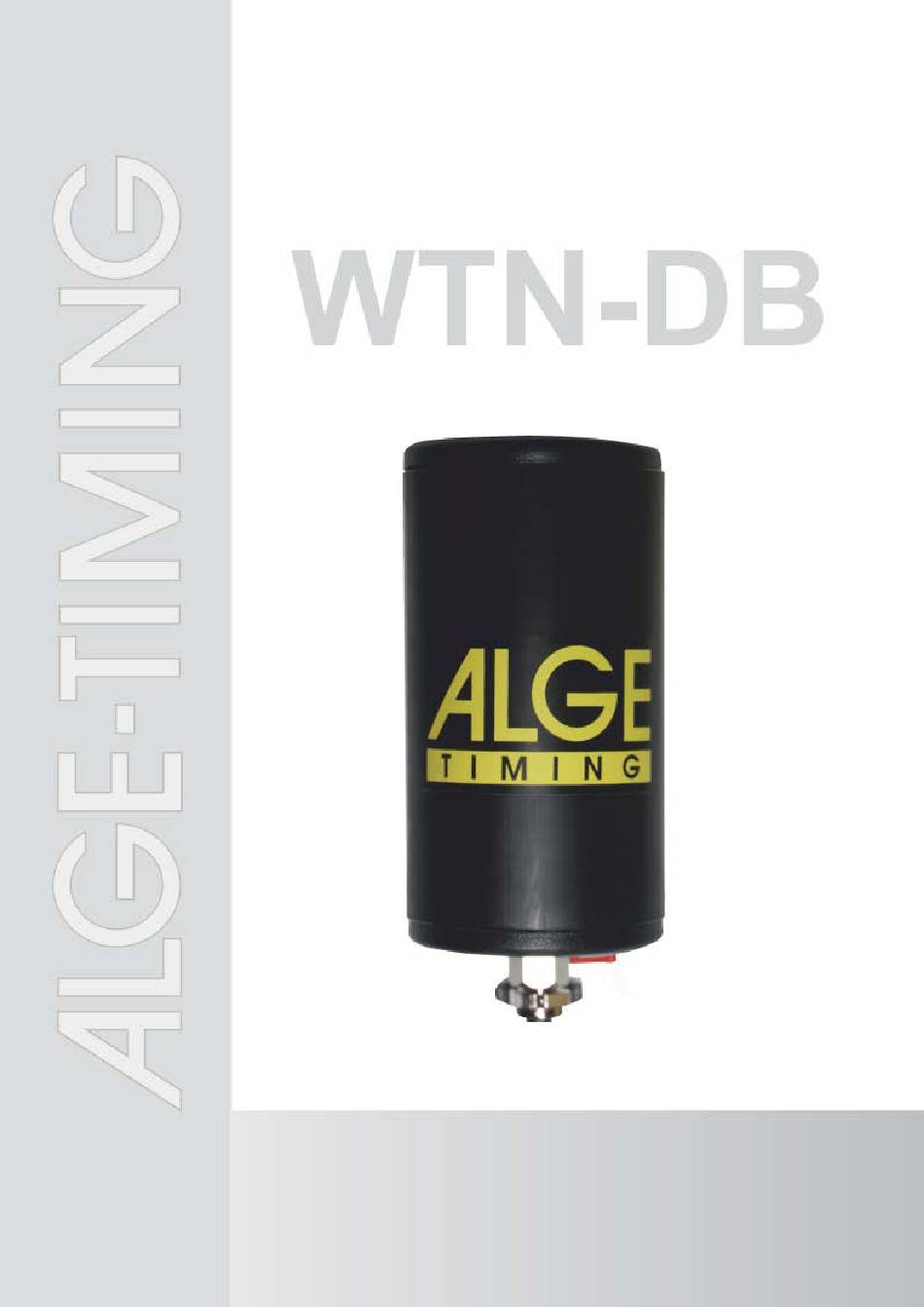

  • Page 1 Version-E180702 Wireless Timing Network for Display Boards Manual...
  • Page 2 Important Information General Before using your ALGE-TIMING device read the complete manual carefully. It is part of the device and contains important information about installation, safety and its intended use. This manual cannot cov- er all conceivable applications. For further information or in case of problems that are mentioned not at all or not sufficiently detailed, please contact your ALGE-TIMING representative.
  • Page 3 Wireless Timing Network WTN-DB Declaration of Conformity We hereby declare that the following product complies with the below stated standards. All components used by us are CE certified by their producer and are not modified by ALGE- TIMING GmbH. ALGE-TIMING GmbH...

  • Page 4: Table Of Contents

    Device Description ...................... 5 Operating Elements ....................7 Operation ........................8 Connecting of the WTN-DB at Display Board ............8 Fastening of WTN-DB at Display Board ..............8 Power Supply ....................... 8 Switching the WTN-DB On or Off ................8 Radio Connection ....................

  • Page 5: Device Description

    ALGE GAZ or D-LINE), serial RS232 data (e.g. to a PC), RS485 data, and timing impulses at the same time (e.g. photocell PR1aW). The WTN-DB is specially designed as data-radio for display boards. It receives the data sent from a timing device and feeds a display board.
  • Page 6 Wireless Timing Network WTN-DB Example of a WTN-System:...

  • Page 7: Operating Elements

    With the rotation switch you can select the team in which the device communicates and in which he is member. The teams that you can adjust with the rotation switch of the WTN-DB are identical with the teams that you can adjust with other WTN-devices.

  • Page 8: Operation

    Connect the 4-pin Amphenol plug at the Amphenol socket of the ALGE-TIMING display board (e.g. D-LINE, GAZ5). 3.2 Fastening of WTN-DB at Display Board The WTN-DB has a clip to fasten it at the case of the display board. • open the screw of WTN-DB •...

  • Page 9: Radio Connection

    3.6 Adjusting the Baud Rate It is not possible to adjust the baud rate directly in the WTN-DB. You can adjust it from another device that is operating in the same team (e.g. WTN). If you adjust e.g. the baud rate to 9600 baud for the display board in the WTN, it will also change the baud rate of all other WTN-devices in this team to 9600 baud.

  • Page 10: Updating Of The Wtn-Db

    Wireless Timing Network WTN-DB Updating of the WTN-DB To update a WTN-DB you need a WTN device. First you update the WTN as described in the WTN manual and then you can transmit the new firmware to the WTN-DB. The WTN-DB LED blinks red during the update.

  • Page 11: Technical Data

    Wireless Timing Network WTN-DB Technical Data Frequency: 2.4 GHz band (16 adjustable frequencies) Power Output: 10 mW or 10 to100 mW (adjustable) Maximum Distance: about 350 m at free sight Display board Interface: Display Board Interface RS232 - 2400 to 19200 Baud...
  • Page 12 Wireless Timing Network WTN-DB Subject to changes Copyright by ALGE-TIMING GmbH Rotkreuzstr. 39 A-6890 Lustenau / Austria www.alge-timing.com -12-...
