Summary of Contents for Shenzhen Optostar Optoelectronics OP-OR124RJ

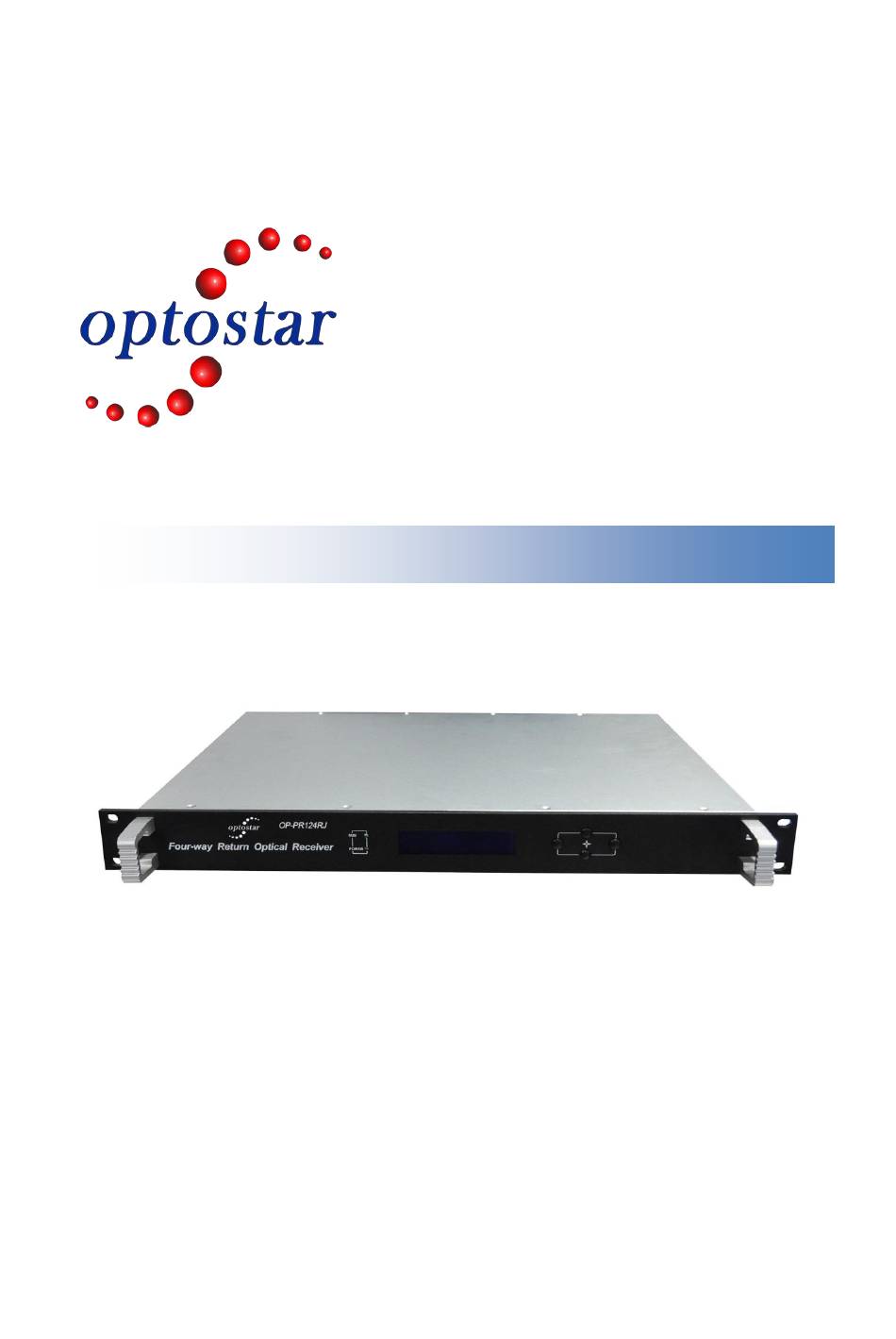

- Page 1 Four-way Return Optical Receiver Manual Transmitter OP-OR124RJ Shenzhen Optostar Optoelectronics Co., Ltd 2016. 7(Version 1)
- Page 2 OP-OR124RJ Four-way Return Path Optical Receiver 1. Summary OP-OR124RJ type is the upgrade product of OP-OR124R type. Can automatically set or manually adjust the input signal on/off function (RFOG), greatly curb the overall network noise. Add optical AGC function, keep the output constant when the signal changed in a wide range;...
-
Page 3: Technique Parameters
OP-OR124RJ Four-way Return Path Optical Receiver 4. Technique Parameters Item Unit Technical Parameters Receiving Optical Power -10～0 Range -10～0 Optical AGC Range 1100～1600 Nominal Optical avelength Optical Fiber Connector FC/APC, SC/APC Type Optical Return Loss >45 5～200 Frequency Range dBμV ≥105... - Page 4 OP-OR124RJ Four-way Return Path Optical Receiver Burst Mode* dBμV ≥70 Laser turn on threshold dBμV ≤62 Laser turn off threshold 0.5≤ t1 ≤1 Laser turn on time (t1) 0.5≤ t2 ≤1.5 Laser turn off time (t2) Note: The part in the virtual frame is the reserved circuit.
-
Page 5: Main Menu
OP-OR124RJ Four-way Return Path Optical Receiver 6. Function Display and Operating Instruction ▲ : up button, increase the parameter value ◀ : ESC button ▶ : Enter button ▼ : down button, decrease the parameter value 6.1 Main menu Displayed parameters... - Page 6 OP-OR124RJ Four-way Return Path Optical Receiver 6.2 The setting menu of the first way return module Displayed parameters Comment Remark Optical Power 1 The input optical power of -99.9dBm the first way return module RF OutPut Level 1 The output level of the first 51.0 dBuv...
- Page 7 OP-OR124RJ Four-way Return Path Optical Receiver 6.3 The setting menu of the second way return module Displayed parameters Comment Remark Optical Power 2 The input optical power of -99.9dBm the second way return module RF OutPut Level 2 The output level of the 51.0 dBuv...
- Page 8 OP-OR124RJ Four-way Return Path Optical Receiver 6.4 The setting menu of the third way return module Displayed parameters Comment Remark Optical Power 3 The input optical power of -99.9dBm the third way return module RF OutPut Level 3 The output level of the third 51.0 dBuv...
- Page 9 OP-OR124RJ Four-way Return Path Optical Receiver 6.5 The setting menu of the fourth way return module Displayed parameters Comment Remark Optical Power 4 The input optical power of the -99.9dBm fourth way return module RF OutPut Level 4 The output level of the fourth 51.0 dBuv...
- Page 10 OP-OR124RJ Four-way Return Path Optical Receiver 6.6 The setting menu of Ethernet parameters Displayed parameters Comment Remark Set IP Addr Set IP address Can change 192 . 168 . 1 . 168 Set Mark Addr Set subnet mask Can change 255 .
-
Page 11: Rear Panel
OP-OR124RJ Four-way Return Path Optical Receiver 7. Product Schematic Diagram 7.1 Front Panel Running indicator Power indicator Esc key Up key Down key Enter key Reserved preposition four-way mixed -20dB test port 7.2 Rear Panel 12 13 14 15 16 17 18... - Page 12 OP-OR124RJ Four-way Return Path Optical Receiver 8. NMS setup instructions If users configured the network management responder, need to do the following settings: Responder IP setup instruction: Network management directly modify: 1. Default IP is 192.168.1.168，default gateway is 192.168.1.1，default subnet mask is 255.255.255.0...
-
Page 13: After-Sales Service Description
OP-OR124RJ Four-way Return Path Optical Receiver 9. Clean and maintenance method of the optical fiber active connector In many times, we misjudge the decline of the optical power or the reduce of optical receiver output level as the equipment faults, but actually it may be caused by the incorrect connection of the optical fiber connector or the optical fiber connector has been polluted by the dust or dirt. - Page 14 OP-OR124RJ Four-way Return Path Optical Receiver 1. We promise: Free warranty for thirteen months (Leave factory time on product qualification certificate as the start date). The extended warranty term based on the supply agreement. We responsible for lifetime maintenance. If the equipment fault is resulted from the users’...
