Houston Radar Armadillo Tracker Quick Start Manual

Houston Radar Armadillo Tracker Quick Start Guide
STEP 1: Select installation location
Pick a location where the traffic is free flowing and the Armadillo has at least
100 feet (30m) of unobstructed road in either direction. Avoid mounting
within 100 feet (30m) of congestion points such as stop signs, sharp turns
and traffic signals. Avoid mounting where trees, branches or other objects
are obstructing the Armadillo's view of the traffic. Best performance is
obtained at locations where traffic volume is under 1000 vehicles/hour.
Mount on the side of a two lane undivided road to measure both
directions. Mount within 12 feet (3.6m) off to the side of the road. We
recommend making the incoming direction the closer lane.
Mount in the median of a four lane divided road to measure both
directions. Pick a location where the median is no more than 12 (3.6m)
feet wide.
Mounting on the side of a 4 lane divided road will allow the Armadillo to
capture only the closest two incoming lanes accurately.
STEP 2: Strap the box to a pole by the side of the road
Using the provided quick release straps, mount the Armadillo at least 6
feet (1.8m) high but no more than 10 feet (3m) high. Adjust the sliding
bracket on the top to tilt the box to point down to look at a spot about 75
to 100 feet (20 to 30m) in front of it (pull the slider plate half way out if
you are mounting about 7 feet (2m) high and all the way if you are
mounting 10 feet (3m) high.
You may mount as low as 5 feet (1.5m) if the location has low traffic
density and you are on an undivided two lane road. Push the plate in all
the way for this mounting height.
When installing on the side of the road point the Armadillo inwards
towards the road by using the guide lines on the top of the box. Do not
point the Armadillo inwards at a 45 degree angle.
When installing in the median between opposite flowing traffic, do not angle the Armadillo towards
either side. You should still tilt the Armadillo down to point about 100 (30m) feet in front of the
mounting location.
To deter theft, the mounting bracket allows the use of a bicycle cable and lock to secure it to the pole.
STEP 3: Power ON and verify proper detection
Turn the key switch to the ON position and verify that you hear just one 1 second beep.
Ten beeps indicate that less than 30% battery capacity is remaining and battery should be re-
charged. A fully charged battery will operate the box for over 2 weeks.
If you have the GPS option, you must turn on the box at the location as the GPS will only geotag
the data when first turned on. The GPS is then switched off automatically to conserve power.
For the next 5 minutes, the box will emit a short beep for every vehicle that it logs allowing you
to verify that the Armadillo is properly detecting traffic. Incoming vehicle will trigger a beep when it
Page 1 of 9 Rev 8.0, 29

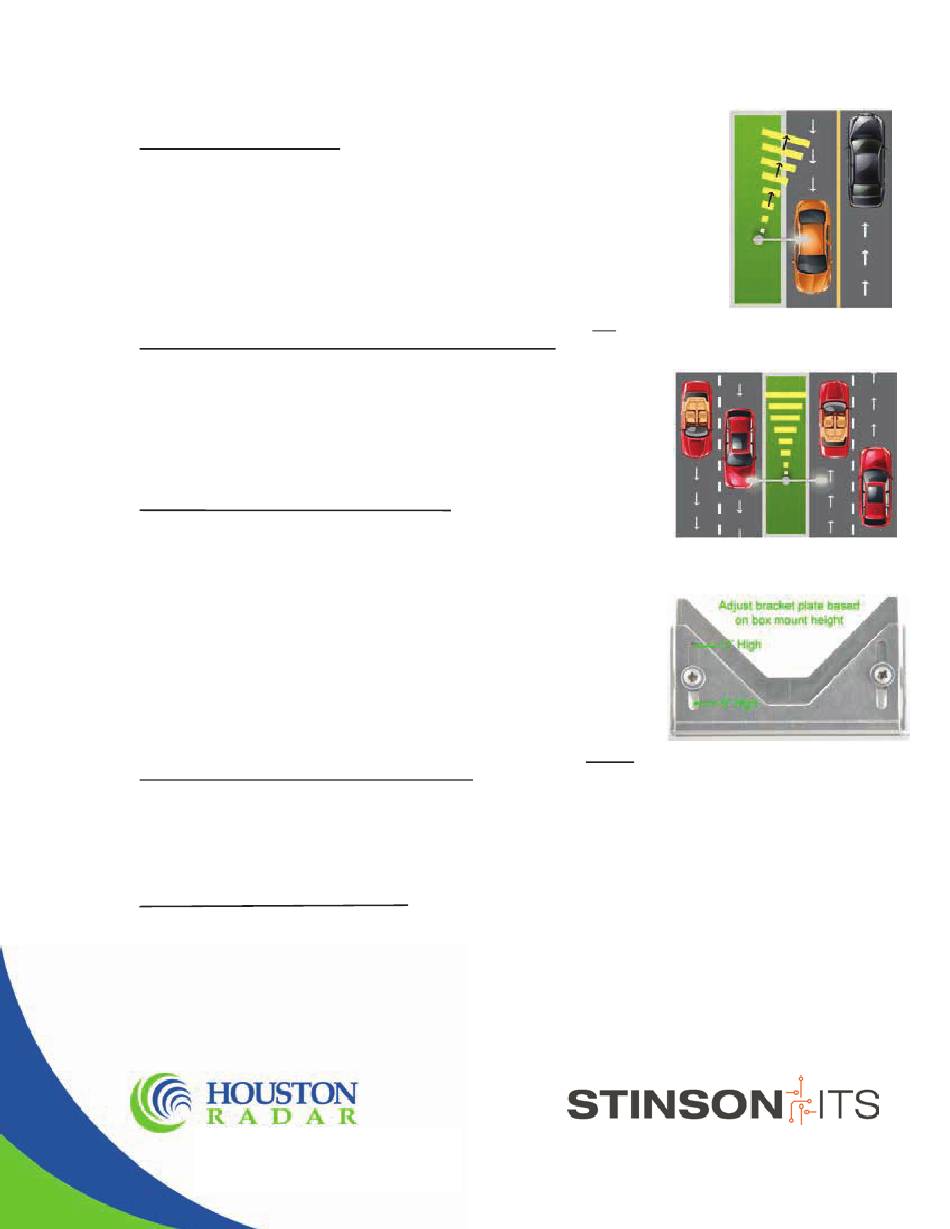

Installation on two
lane undivided road
Installation on four
lane divided road
th
Sep, 2017
