INSTRUCTIONS FOR INSTALLATION, USE AND MAINTENANCE
SQUARE
100
120
130
140
150
170
Via Industriale, 21/23 - 25030 Lograto (BS) Italy - Tel. 030.9972249 - Fax 030.9972818 - ceky@ceky.it | P.I. 03488790175

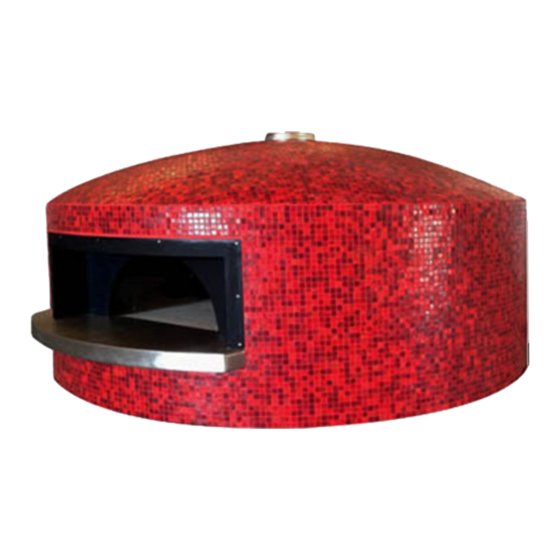

GAS PIZZA OVEN
ROUND
PENTAGONAL
100
120
130
140
150
170
CATEGORY: II2H3+
TYPE OF INSTALLATION: A1 – B11BS
MODEL
GRANVOLTA
100
120
130
140
150
170
SPHERICAL
100
100
120
120
130
130
140
140
150
150
170
170
1
Advertisement
Table of Contents
Summary of Contents for Forni Ceky ROUND Series
- Page 1 INSTRUCTIONS FOR INSTALLATION, USE AND MAINTENANCE GAS PIZZA OVEN MODEL SQUARE ROUND PENTAGONAL GRANVOLTA SPHERICAL CATEGORY: II2H3+ TYPE OF INSTALLATION: A1 – B11BS Via Industriale, 21/23 - 25030 Lograto (BS) Italy - Tel. 030.9972249 - Fax 030.9972818 - ceky@ceky.it | P.I. 03488790175...
-
Page 2: Table Of Contents
TABLE OF CONTENTS INSTRUCTIONS FOR THE INSTALLER I INTRODUCTION AND DESCRIPTION OF THE EQUIPMENT ......3 1.1 General instructions ............................3 1.2 Nameplate and additional plate ........................4 1.3 Drawings ................................. 5 1.4 Technical data ............................... 10 II GENERAL INSTRUCTIONS ................11 2.1 Place of installation ............................ -
Page 3: I Introduction And Description Of The Equipment
It should be stored in a protected and dry place, which can be easily accessed for consultation. In case of deterioration or loss, ask for a copy directly to the manufacturer. If in doubt, go to your nearest service centre or directly to Forni Ceky. ... -
Page 4: Nameplate And Additional Plate
1.2 Nameplate and additional plate Below are the nameplate and the additional plate. The nameplate (Fig. 1) is placed near the control panel of the oven, in a visible position. The additional plate (Fig. 2) is to be placed in a visible position on the equipment and in the documentation that accompanies the packaging. -
Page 5: Drawings
1.3 Drawings... -
Page 10: Technical Data
1.4 Technical data Square Round Pentagonal Granvolta Spherical Models CB 14B – models 140 150 CB 12B – models 100 120 130 Rated thermal input 27 kW 28.5 kW Gas connection ISO 7-1 ¾” ¾” Category II 2H3+ II 2H3+ Type of fabrication A1 –... -
Page 11: General Instructions
II GENERAL INSTRUCTIONS 2.1 Place of installation The user must ensure that the installation complies with local regulations. The equipment must be installed only by qualified personnel and authorised by the manufacturer, which must follow the safety rules in force at the place of installation. -
Page 12: Checks At Commissioning
Make sure there is a good connection between the ground terminal of the device, the metal frame of the burner and the grounding of the electrical system; Avoid putting the detection cable together with the power or ignition cables; Use a cable and a detection electrode, which are heat resistant, well insulated to ground and protected against condensation or water in general;... - Page 13 Figure 3 Figure 4 Gas pressure (mbar) Type of gas Normal Minimum Maximum Methane gas H G20 GPL gas G30/G31 28-30/37 20/25 35/45...
-
Page 14: Transformation Or Adjustment To Another Type Of Gas
After having measured the supply pressure, disconnect the hose, remove the "M" pressure gauge and tighten the seal screw. Then, reset the control panel of the oven. 3.5 Transformation or adjustment to another type of gas This adjustment must be performed by qualified personnel. For the adjustment to another type of gas, refer to the technical data (table of nozzles and primary air regulation) by replacing the nozzles of the main burner and pilot burner. -
Page 15: Adjusting The Minimum
3.5.3 Adjusting the minimum The valve is equipped with an automatic detection function of the minimum, which calculates the correct setting for the minimum pressure sufficient to maintain the burner supplied. This function can be turned off and the minimum can be adjusted manually. -
Page 16: Connection Diagram
4.2 Connection diagram RESET DTMN11 ATTENTION! Follow the connection of the line and neutral as shown in the diagram. ― REG_CK (connections side) Legend REG_CK Thermoregulation device LIGHT Oven light DTMN11 Flame ignition and control device Detection electrode BRAHMA gas valve, type VCMxx Ignition electrodes Thermocouple / Temperature sensor Communication cable DTMN11 ↔... -
Page 17: Operation And First Ignition
4.3 Operation and first ignition The device can work in two different modes, which will be described below. AUTOMATIC MODE This operational mode allows bringing the temperature of the oven to the set point using the "-" and "+" buttons. The REG_CK device will constantly detect the oven temperature by means of the thermocouple and will communicate to the ignition/flame control device the power level to be implemented on the gas valve in order to reach the set point in a controlled manner. - Page 18 AUTOMATIC mode Display Parameter / Description “tC” – Control time The “tC” parameter represents the execution time of the system's PI controller, expressed in seconds. DEFAULT value [s]: Minimum value [s]: Maximum value [s]: Press the “AUTO/MAN” button to go to the next parameter. “cP”...
- Page 19 Press the “AUTO/MAN” button to end the change process and save the set parameters. To change the following data, switch to manual mode and press the "lamp" button for 5 seconds to access the settings listed below MANUAL mode Display Parameter / Description “L1”...
-
Page 20: First Start
mode. DEFAULT value [s]: Minimum value [s]: min_step_auto Maximum value [s]: Press the “AUTO/MAN” button to end the change process and save the set parameters. “MM” – Manual minimum The “MM” parameter represents the minimum value that can be used in regulating the 5 levels of power described above. -
Page 21: Cleaning And Maintenance
Display Description NC – Not Connected The REG_CK regulating device is not connected to the flame ignition and control device. Check the connection between the two devices (“CV” cable, see section “Connection diagram”). OT – Over Temperature Exceeding the intervention temperature at automatic reset (550 °C). The system will automatically restore the heat command when the temperature measured by the probe is lower than 520 °C. - Page 22 The venturi of the burner must be cleaned with soap and water or non-abrasive detergents; Never wash the equipment with direct high pressure jet of water. Warning! If the ignition and control devices show any handling difficulties, contact the manufacturer immediately and it will provide for maintenance.
