User Guide

T OUCH POINTS

The final interpretation of all information is authorized by the company.

All unauthorized and permitted copies are not recognized and prohibited.

【All latest changes which may not completely reflect product in this document shall be based on actual product】

IWB-AT Series

4K LED PANEL

Mohs-7 level

Anti-Glare Glass

Interactive WhiteBoard

Table of Contents

Need help?

Do you have a question about the IWB-AT Series and is the answer not in the manual?

Questions and answers

Summary of Contents for AOV IWB-AT Series

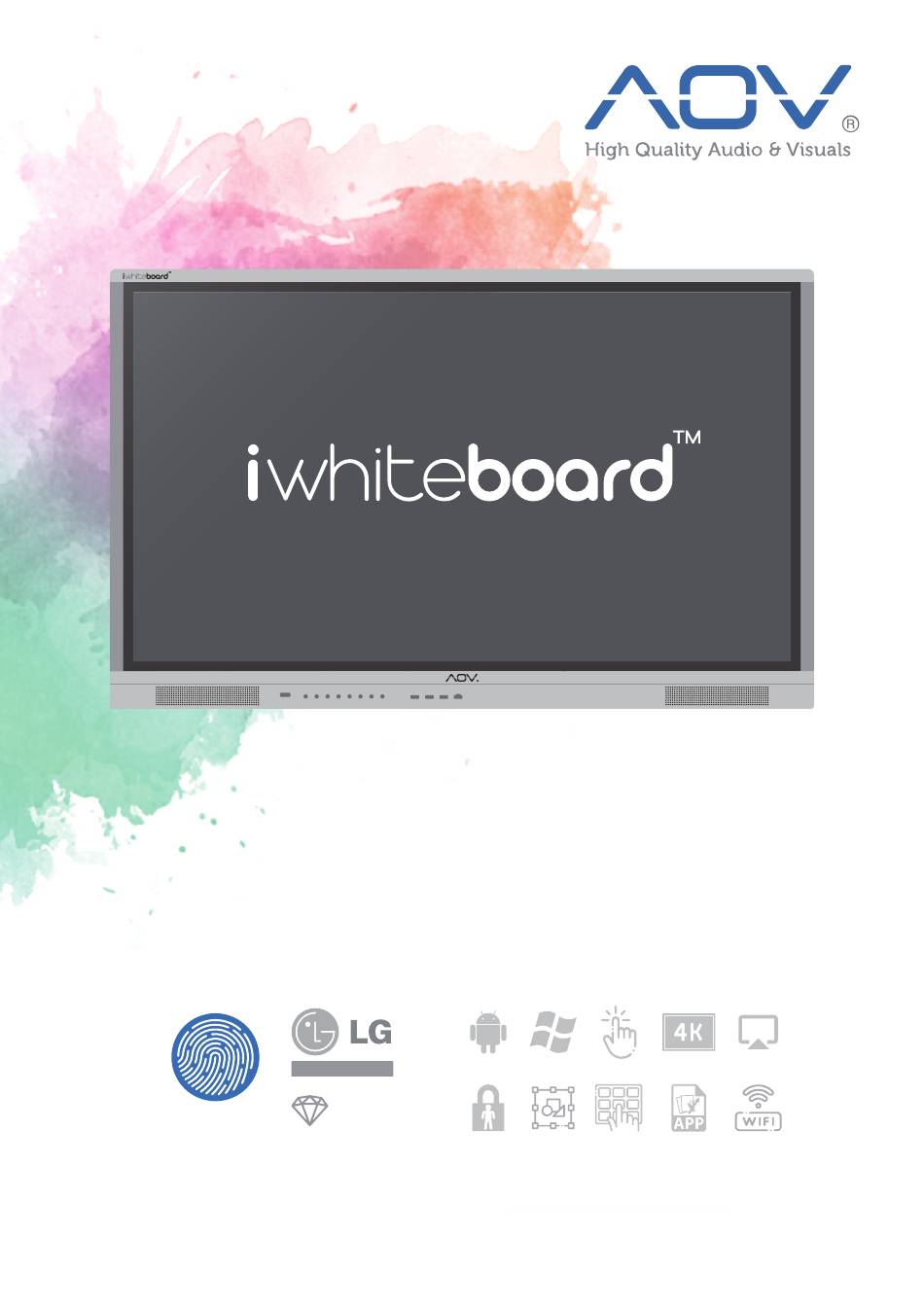

Page 1 IWB-AT Series Interactive WhiteBoard User Guide 4K LED PANEL Mohs-7 level T OUCH POINTS Anti-Glare Glass The final interpretation of all information is authorized by the company. All unauthorized and permitted copies are not recognized and prohibited. 【All latest changes which may not completely reflect product in this document shall be based on actual product】...
Page 2: Table Of Contents
Table of Contents I. Systems Instructions 1.1 AOV iwhiteboard Launcher 1.1.1 Status Bar 1.1.2 Network Bar 1.1.3 Application Bar 1.1.4 Preview Bar 1.1. Channel Switching Shortcut Bar 1.2 Pull Up Touch Menu 1.2.1 Function Introduction 05-09 1.3 System Settings (I) 1.3.1 Sound...
Page 3: Systems Instructions
I. Systems Instructions 1.1 AOV iwhiteboard Launcher The main interface of the AOV iwhiteboard interactive display is as follows: The main interface is mainly divided into a status bar, an application bar, a network bar, and a channel switching shortcut bar.
Page 4: Status Bar
65°C or above, displays red for early warning. Time Status: Set “Automatic date & time” to use network-provided time. ( AOV iwhiteboard is connected to the network. ) 1.1.2. Network Bar a. Visually view the Ethernet / WIFI network connection status;...
Page 5: Preview Bar
1.1.4 Preview Bar You can preview the channel of OPS, HDMI, VGA, and quad screen to switch. 1.1.5 Channel Switching Shortcut Bar First, click the icon at the bottom of the preview window to call upon the channel switching shortcut bar. There are OPS(built-in computer), HDMI, VGA, and Quad Screen to switch.
Page 6: Pull Up Touch Menu
1.2 Pull Up Touch Menu 1.2.1 Function introduction Pull up the menu and pull up from the bottom of the screen to display the sidebar. The expanded function buttons are Back, Home, Task, Input Source, Menu, Volume -, Volume +, Backlight -, Backlight + , whiteboard, annotations, screen- shots.
Page 7 Back Click the icon to return or exit the current program. Homepage Click the icon to enter the main interface of the system. Task Click the icon to enter the task management interface, you can choose to open or close the application. (1) In the multitasking state, touch the task list area and slide up and down to view the task list.
Page 8 System Menu Click the icon to call upon the system menu, and the user can set the corresponding function to the system, see details fo chapter 1.3. The system menu settings mainly include sound, screen, display, adjustment, smart, and channel function settings.
Page 9 Brightness plus Click the icon to increase the screen brightness. Whiteboard Click the icon to enter the AOV iwhiteboard software. Annotation Click the icon to open the annotation for writing on the AOV iwhiteboard Display.
Page 10 Screenshot Click on the icon to capture a screenshot of the current interface, Crop or Full Screen shot is all available.
Page 11: System Settings (I)
1.3 System Settings (I) Click the icon to adjust the system setting. 1.3.1 Sound Sound settings interface, including standard, conference, classroom, custom and other modes. The settings for treble, bass, balance, etc. can be adjusted when switching to custom mode. 1.3.2 Screen Ratio Through the screen setting interface, you can adjust the display ratio of the exter- nal device screen under the current channel.
Page 12: Display
1.3.3 Display In the display setting interface, the image mode and color temperature can be adjusted. (1) Image mode The image mode has standard, bright, soft, and user custom modes. Brightness, contrast, hue, sharpness can only be adjusted when the image mode is in custom mode, otherwise it is not adjustable.
Page 13: Adjustment
1.3.4 Adjustment The adjustment function can be switched to the adjustment interface only under VGA and extended VGA channels. It mainly adjusts the parameters such as clock, phase, horizontal position and vertical position of the display screen of the external device under VGA and extended VGA channel.
Page 14 (1) Auto Identity When smart identification is enabled, when the system detects that a signal source is connected, it will automatically switch to that channel. (2) Energy saving Turn on the energy saving, enter the backlight state of the screen and turn off the light;...
Page 15 (9) Sleep mode After the sleep mode is set, the system will automatically enter the power-saving state when the set time is reached. (10) Auto On: You can set a fixed time to boot. (11) Auto Off: You can set a fixed time to shut down. (12) Power Model 1.
Page 16: Channel
(13) Default channel You can set the channel interface displayed after the boot is completed. 1. Memory Input Source: In which channel to shut down, it will enter the channel after booting. 2. Other source channels: When the boot channel is set to the source, it will be shut down under any interface, and the boot will directly enter the set channel.
Page 17: System Settings (Ii)
1.4 System Settings (II) The system setup menu can be divided into three major modules, namely wireless and network modules, general modules, and system modules. 1.4.1 Wireless and Network In the wireless and network module interface, it is mainly set up for wired network, wireless network, wireless hotspot and other functions.
Page 18 (2) Ethernet (Network Cable Connection) You can view the MAC address, IP address, and other information on the wired network interface. The IP address is automatically enabled by default. After the automatic acquisition is disabled, you can manually modify the IP address and subnet mask.
Page 19: Hotspots
1.4.2 Hotspots The parameters such as hotspot name, security, and password can be changed in the 2.4G hotspot setting interface. 1.4.3 Global General Setting Universal module interface, you can replace the system theme wallpaper, modify the device name, view third-party applications, storage devices and USB, general settings.
Page 20 1. Uart Control: The centralized control function is to remotely control some basic functions such as sound addition and subtraction and channel switching through the R232 serial port. To use the centralized control function, the central- ized control switch needs to be turned on.. 2.
Page 21: System
5) Channel setting: Users can customize the name of each channel. 6) Notification Sound: turn on or off the notification sound. 7) Launcher Preview Window setting: customize quad screen, input source. (4) Apps You can browse the installed third-party applications, view the built-in storage space and traffic usage, as well as the system to third-party applications, uninstall, clean up cache data and other functions.
Page 22 (2) Account Personal account information can be set. (3) Factory data reset Clicking on Factory Reset will erase all user data, including Google Accounts, system and app data and settings, downloaded apps, images, and more. (4) Date and time In the time setting interface, you can choose to change the system time, time zone and time display format.
Page 23: Software Description
II. Software Description 2.1 iWhiteboard hand writing app 2.1.1 Interface Display (For meeting and Educational Instruction) Click the whiteboard on the Android homepage or pull-up menu to launch the whiteboard software. The default interface is shown in the figure. 2.1.2 Function Menu (1) Click (menu icon) in the lower left corner of the interface to pop up and display the subordinate content menu;...
Page 24 3. Exit the whiteboard: Click the icon to exit the whiteboard pop-up opera- tion option if there is content on the whiteboard: “Exit after the saving, Exit, Cancel”, perform function operation according to requirements; if there is no con- tent on the whiteboard, click to “Exit” the whiteboard to exit directly. (2) Cancellation and recovery Click on the far left arrow to withdraw the written error and click on the far right arrow to undo error.
Page 25 3. After the login is successful, the user enters the email address of the recipi- ent, and clicks to send the content recorded in the AOV iwhiteboard to the recipi- ent's mailbox in PDF format and click the setting to modify and replace the current...
Page 26: Annotation
(9) Empty the whiteboard Click to clear the whiteboard content. (10) Board eraser Touch the whiteboard area is greater than or equal to the thresh- old, which can wipe out the content entirely. (11) Page preview 1. Open the page preview popup window: Click display the current page as selected;...
Page 27 (1) Toolbar operation instructions: 1. Click the icon to enable the brush to set the brush shape. 2. Click the icon to set the thickness and transparency of the brush. 3. Click the icon to set the thickness of the eraser. 4.
Page 28: Multi-Screen Interactive
2.3 Multi-screen Interaction Click the main interface icon , then enter the multi-screen interactive inter- face, is shown in the figure, and the multi-screen interaction supports mobile phone projection screen. 2.3.1 Application Interface Introduction (1) Network display Network -Net 1 is a device wireless network. When the device is connected to the wireless network, the network-Net 1 column will display the name of the wire- less network;...
Page 29 (2) Modify the device name Click pen icon of the multi-screen interactive interface to pop up the Modify Device Name dialog box, and the user can customize the device name:...
Page 30: User's Device Screen Cast To Iwhiteboard Screen
2.3.2 User’s Device screen cast to AOV iWhiteBoard Screen (1) Android mobile phone connection network, scanning multi-screen interac- tive interface QR code to download and install the screen assistant software (Apple mobile phone does not need to download), Windows and Mac also can download the same screen assistant software by windows or mac version.
