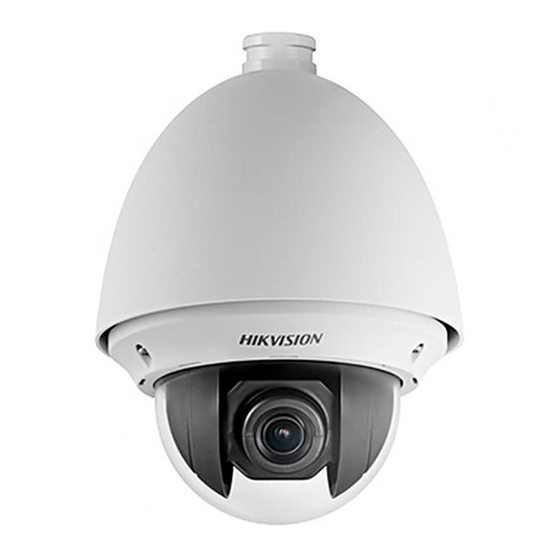

HIKVISION DS-2DE4225W-DE User Manual

Network speed dome
Hide thumbs
Table of Contents

Advertisement

Quick Links

Network Speed Dome
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DS-2DE4225W-DE and is the answer not in the manual?

Questions and answers

Related Manuals for HIKVISION DS-2DE4225W-DE

Summary of Contents for HIKVISION DS-2DE4225W-DE

  • Page 1 Network Speed Dome User Manual...
  • Page 2 WITHOUT LIMITATION, MERCHANTABILITY, SATISFACTORY QUALITY, OR FITNESS FOR A PARTICULAR PURPOSE. THE USE OF THE PRODUCT BY YOU IS AT YOUR OWN RISK. IN NO EVENT WILL HIKVISION BE LIABLE TO YOU FOR ANY SPECIAL, CONSEQUENTIAL, INCIDENTAL, OR INDIRECT DAMAGES, INCLUDING,...

  • Page 3: Regulatory Information

    (Cd), lead (Pb), or mercury (Hg). For proper recycling, return the battery to your supplier or to a designated collection point. For more information, see: www.recyclethis.info. Industry Canada ICES-003 Compliance This device meets the CAN ICES-3 (A)/NMB-3(A) standards requirements. © Hikvision...

  • Page 4: Safety Instruction

     Make sure the power supply voltage is correct before using the product.  Do not drop the product or subject it to physical shock. Do not install the product on vibratory surface or places.  Do not expose it to high electromagnetic radiating environment. © Hikvision...
  • Page 5  Use a soft and dry cloth when clean inside and outside surfaces of the product cover. Do not use alkaline detergents.  Improper use or replacement of the battery may result in hazard of explosion. Use the manufacturer recommended battery type. © Hikvision...

  • Page 6: Table Of Contents

    ........................ 35 TORAGE ETTINGS 5.1.1 Configuring Recording Schedule ..................35 5.1.2 Configuring Capture Schedule ..................37 5.1.3 Configuring Net HDD ....................39 5.1.4 Configuring Cloud Storage..................... 41 ....................41 ASIC VENT ONFIGURATION 5.2.1 Configuring Motion Detection ..................42 © Hikvision...
  • Page 7 ETTINGS 6.3.1 Configuring Display Settings ..................99 6.3.2 Configuring OSD Settings .................... 105 6.3.3 Configuring Image Parameters Switch ................. 106 ..................... 107 ONFIGURING YSTEM ETTINGS 6.4.1 System Settings ......................107 6.4.2 Maintenance ......................112 6.4.3 Security ........................116 © Hikvision...
  • Page 8 6.4.4 User Account....................... 118 APPENDIX ............................123 SADP S ....................... 123 OFTWARE NTRODUCTION ...................... 125 EVICE OMMUNICATION ATRIX .......................... 125 EVICE OMMAND © Hikvision...

  • Page 9: Chapter 1 Overview

    This function allows you to block or mask certain area of a scene, for preventing the personal privacy from recording or live viewing. A masked area will move with pan and tilt functions and automatically adjust in size as the lens zooms telephoto and wide.  3D Positioning © Hikvision...
  • Page 10  Scheduled Task A time task is a preconfigured action that can be performed automatically at a specific date and time. The programmable actions include: auto scan, random scan, patrol 1-8 ,pattern 1-4, preset © Hikvision...
  • Page 11 Comparing with the general 2D digital noise reduction, the 3D digital noise reduction function processes the noise between two frames besides processing the noise in one frame. The noise will be much less and the video will be clearer. © Hikvision...

  • Page 12: Chapter 2 Network Connection

    Figure 2-1.  Refer to the Figure 2-2 to set the network camera over the LAN via a switch or a router. Network Cable Network Speed Dome Computer Figure 2-1 Connecting Directly © Hikvision...

  • Page 13: Activating The Camera

    The password should be something of your own choosing (using a minimum of 8 characters, including upper case letters, lower case letters, numbers and special characters) in order to increase the security of your product. © Hikvision...
  • Page 14  Proper configuration of all passwords and other security settings is the responsibility of the installer and/or end-user. Note: © Hikvision...
  • Page 15 Get the client software from the supplied disk or the official website, and install the software according to the prompts. Follow the steps to activate the camera. Steps: Run the client software and the control panel of the software pops up, as shown in Figure 2-6. © Hikvision...
  • Page 16 Figure 2-7 Device Management Interface Check the device status from the device list, and select an inactive device. Click Activate to pop up the Activation interface. Create a password and input the password in the password field, and confirm the password. © Hikvision...
  • Page 17 Figure 2-9 Modifying the Network Parameters Change the device IP address to the same subnet with your computer by either modifying the IP address manually or checking the Enable DHCP checkbox. Input the password to activate your IP address modification. © Hikvision...

  • Page 18: Setting The Network Camera Over The Wan

    You can also save the static IP in the camera and directly connect it to the internet without using a router. Refer to Section 2.1.2 for detailed IP address configuration of the camera. Network Network Cable Cable Internet Network Speed Dome Figure 2-11 Accessing the Camera with Static IP Directly © Hikvision...

  • Page 19: Dynamic Ip Connection

    Normal Domain Name Resolution Steps: 1. Apply a domain name from a domain name provider. 2. Configure the DDNS settings in the DDNS Settings interface of the network camera. Refer to Section 6.1.1 Configuring DDNS Settings for detailed configuration. © Hikvision...
  • Page 20 3. Visit the camera via the applied domain name. © Hikvision...

  • Page 21: Chapter 3 Accessing To The Network Speed Dome

    6. For certain web browsers, you should install the plug-in before viewing the live video and operating the camera. Follow the installation prompts to install the plug-in. Note: You may have to close the web browser to install the plug-in. Reopen the web browser and log in again after installing the plug-in. © Hikvision...

  • Page 22: Accessing By Client Software

    Follow the installation prompts to install the client software and WinPcap. The configuration interface and live view interface of client software are shown in Figure 3-2. Figure 3-2 iVMS-4200 Control Panel Figure 3-3 iVMS-4200 Main Interface © Hikvision...
  • Page 23 If you use third party VMS software, contact our technical support for camera firmware.  For detailed information about client software of our company, refer to the user manual of the software. This manual mainly introduces accessing to the network camera by web browser. © Hikvision...

  • Page 24: Chapter 4 Basic Operations

    Display POS Information: Enable the function, feature information of the detected target is dynamically displayed near the target in the live image.  Image Format: The captured pictures can be saved as different format. JPEG and BMP are available. © Hikvision...

  • Page 25: Live View Page

    Log in the network camera to enter the live view page, or you can click on the menu bar of the main page to enter the live view page. Note: The functions vary depeding on different camera models. Take the actual interface as standard. Descriptions of the Live View page: © Hikvision...

  • Page 26: Starting Live View

    Live View Parameters: Configure the Image Size, Stream Type, Plug-in Type. 4.4 Starting Live View 4.4.1 Live Operation In the live view window as shown in Figure 4-3, click on the toolbar to start the live view of © Hikvision...
  • Page 27 1. Click the button to enter the regional focus operation mode. 2. Draw a rectangle on the image as the target focus region. Mute/audio on and adjust volume Note: The function is only supported by certain camera models. © Hikvision...
  • Page 28 When the proportion is 100, the redundant data will be as large as the original data. Note: Be sure the bandwidth is sufficient in Error Correction mode. Click to save the settings. © Hikvision HTTP Listening...

  • Page 29: Install Plug-In

    Mozilla Firefox 51 and earlier version  Google Chrome 57+ Click to download and  Mozilla Firefox 52+ install plug-in.  Latest Internet Edge (Windows 10) Follow pop-up prompts to complete  Others Internet Explorer 8+ plug-in installation to obtain high quality © Hikvision...

  • Page 30: Operating Ptz Control

    On the live view page, click to show the PTZ control panel or click to hide it. Click the direction buttons to control the pan/tilt movements. Click the zoom/iris/focus buttons to control lens. Figure 4-4 PTZ Control Panel © Hikvision...
  • Page 31 Refer to Section 4.5.4 Patrol Setting/Calling a Patrol for detailed information of setting patrol. Refer to Section 4.5.6 Setting/Calling a Pattern for Pattern detailed information of setting pattern.  Buttons on the Preset/Patrol/Patterns interface: © Hikvision...

  • Page 32: Auxiliary Functions

    3D Positioning 2. 3D positioning can be operated in three ways:  Click a position of the live video. The corresponding position will be moved to the center of the live video. © Hikvision...

  • Page 33: Setting/Calling A Preset

    4. Edit a preset name by double clicking on the default name such as preset 1. (The pre-defined presets are named already but not configurable. Refer to the user manual for detailed function description.) 5. You can click to delete the preset. © Hikvision...
  • Page 34 Start auto scan filter out) Call pattern 1 Start tilt scan Call pattern 2 Start panorama scan Call pattern 3 Call patrol 5 Call pattern 4 Call patrol 6 One-touch Patrol Call patrol 7 Day/Night Auto Mode Call patrol 8 © Hikvision...

  • Page 35: Setting/Calling A Patrol

    2. Select a patrol number from the list and click 3. Click to enter the adding interface of preset, as shown in Figure 4-9. Figure 4-9 Adding Presets 4. Configure the preset number, patrol time and patrol speed. © Hikvision...

  • Page 36: One-Touch Patrol

    2. Call preset No. 45, and the camera moves as patrol path 8. 3. Click to enter the patrol settings interface and start/stop one-touch patrol, edit the patrol time and the speed. 4. You can click of the PTZ control panel to start one-touch patrol. © Hikvision...

  • Page 37: Setting/Calling A Pattern

    4. Use the PTZ control buttons to move the lens to the desired position after the information of PROGRAM PATTERN REMAINNING MEMORY (%) is displayed on the screen.  Pan the camera to the right or left.  Tilt the camera up or down.  Zoom in or out.  Refocus the lens. © Hikvision...

  • Page 38: Playback

    3D positioning operation is not supported. 4.6 Playback Purpose: This section explains how to view the video files stored in the network disks or memory cards. 4.6.1 Play Back Video Files Steps: Click on the menu bar to enter playback interface. © Hikvision...
  • Page 39 Select the date and click Figure 4-14 Search Video Click to play the video files found on this date. The toolbar on the bottom of Playback interface can be used to control playing process. Figure 4-15 Playback Toolbar © Hikvision...

  • Page 40: Downloading Video Files

    Figure 4-18 Video Types 4.6.2 Downloading Video Files Steps: Click on the playback interface. The pop-up menu is shown in Figure 4-19. Set the start time and end time. Click Search. The corresponding video files are listed on the right. © Hikvision...

  • Page 41: Pictures

    4.7 Pictures Purpose: This section explains how to view the captured picture files stored in the network disks or the memory cards and download the captured pictures. Steps: Click on the menu bar to enter picture interface. © Hikvision...
  • Page 42 Select the file type. Set the start time and end time. Click Search. The corresponding picture files will be listed. Check the checkbox in front of the files that you need to download. Click to download the files. © Hikvision...

  • Page 43: Chapter 5 System Configuration

    Chapter 5 System Configuration 5.1 Storage Settings Before you start: To configure record settings, make sure that you have the network storage device within the network or the memory card inserted in your camera. 5.1.1 Configuring Recording Schedule Purpose: There are two kinds of recording for the camera: manual recording and scheduled recording. In this section, you can follow the instructions to configure the scheduled recording.
  • Page 44 Alarm Type and check the checkbox of Trigger Channel in the Linkage Method of Alarm Input settings interface. For detailed information, refer to Section 5.2.3 Configuring Alarm Input. Note: The function is only supported by certain camera models. © Hikvision...

  • Page 45: Configuring Capture Schedule

    Select the timeline of a certain day, and drag the left button of the mouse to set the capture schedule (the start time and end time of the recording task). After you set the scheduled task, you can click and copy the task to other days © Hikvision...
  • Page 46 Refer to Section 3 Configuring FTP Settings for more details to configure FTP parameters. Check Upload to FTP checkbox in Motion Detection Settings or Alarm Input interface. Refer to Section 5.2.1 Configuring Motion Detection. Check the Enable Event-triggered Snapshot checkbox. © Hikvision...

  • Page 47: Configuring Net Hdd

    After having saved successfully, you need to reboot the camera to activate the settings.  Initialize the added network disk. 1. Enter the HDD settings interface (Configuration > Storage > Storage Management > HDD Management), in which you can view the capacity, free space, status, type and property of the disk. © Hikvision...
  • Page 48 1. Input the quota percentage for picture and for record. 2. Click Save and refresh the browser page to activate the settings. Figure 5-8 Quota Settings Notes:  Up to 8 NAS disks can be connected to the camera. © Hikvision...

  • Page 49: Configuring Cloud Storage

    These events can trigger the alarm actions, such as Send Email, Notify Surveillance Center, etc. For example, when motion detection is triggered, the network camera sends a notification to an e-mail address. © Hikvision...

  • Page 50: Configuring Motion Detection

    You can check the Enable Dynamic Analysis for Motion checkbox if you want the detected object get marked with rectangle in the live view. Select the configuration mode as Normal or Expert and set the corresponding motion detection parameters.  Normal © Hikvision...
  • Page 51 (2) Click to finish drawing. Note: You can click to clear all of the areas. (3) Move the slider to set the sensitivity of the detection.  Expert © Hikvision...
  • Page 52 The less the value is, the easier the alarm will be triggered. Note: Percentage is only supported by certain camera models. Set the Arming Schedule for Motion Detection. Steps: (1) Click tab to enter the arming schedule setting interface. © Hikvision...
  • Page 53 (optional). Figure 5-13 Arming Time Schedule (4) After setting the arming schedule, you can click a segment to display the segment arming settings interface to edit the segment record parameters (optional). Figure 5-14 Segment Arming Settings © Hikvision...
  • Page 54 Track the moving objects automatically when an alarm is triggered. Notes:  To configure the smart tracking, you need to refer to Section Configuring Smart Tracking to set the parameters.  The function is only supported by certain camera models.  White Light Flashing © Hikvision...

  • Page 55: Configuring Video Tampering Alarm

    5.2.2 Configuring Video Tampering Alarm Purpose: You can configure the camera to trigger the alarm actions when the lens is covered. Steps: 1. Enter the Video Tampering settings interface : Configuration > Event > Basic Event > Video Tampering © Hikvision...

  • Page 56: Configuring Alarm Input

    The function is only supported by certain camera models. Steps: 1. Enter the Alarm Input settings interface: Configuration > Event > Basic Event > Alarm Input 2. Choose the Alarm Input No. and the Alarm Type. The alarm type can be NO (Normally Open) © Hikvision...
  • Page 57 6. You can also choose the PTZ linking for the alarm input. Check the relative checkbox and select the No. to enable Preset Calling, Patrol Calling or Pattern Calling. 7. You can copy your settings to other alarm inputs. 8. Click to save the settings. © Hikvision...

  • Page 58: Configuring Alarm Output

    5. Click tab to enter the arming schedule setting interface. The time schedule configuration is the same as the settings of the arming schedule for motion detection. Refer to Section 5.2.1 Configuring Motion Detection for more details. © Hikvision...

  • Page 59: Handling Exception

    The exception type can be HDD Full, HDD Error, Network Disconnected, IP Address Conflicted and Illegal Login. Steps: Enter the Exception settings interface: Configuration > Event > Basic Event > Exception 2. Check the checkbox to set the actions taken for the Exception alarm. Refer to Section 5.2.1 Configuring Motion Detection. © Hikvision...

  • Page 60: Configuring Flashing Alarm Light Output

    Brightness: the brightness of the light. 3. Set the arming schedule for the flashing alarm. The time schedule configuration is the same as the settings of the arming schedule for motion detection. Refer to Section 5.2.1 Configuring Motion Detection for more details. © Hikvision...

  • Page 61: Configuring Audible Alarm Output

    The function is only supported by certain camera models. Purpose: When you enable this function and audio exception occurs, the alarm actions will be triggered. Steps: Enter the video audio exception detection interface: Configuration > Event > Smart Event > Audio Exception Detection © Hikvision...
  • Page 62 Send Email, Notify Surveillance Center, Trigger Alarm Output and Trigger Recording are selectable. Refer to Section 5.2.1 Configuring Motion Detection for more details. Click to save the settings. © Hikvision...

  • Page 63: Configuring Face Detection

    Intrusion detection can set an area in the surveillance scene and once the area is entered, a set of alarm action is triggered. Steps: 1. Enter the intrusion detection interface: Configuration > Events > Smart Event >Intrusion Detection 2. Check the Enable checkbox. © Hikvision...
  • Page 64 Note: For network cameras, regions can be set simultaneously before clicking Save button. For speed domes, you need to set 1 region and save it. Then continue to set and save the next © Hikvision...

  • Page 65: Configuring Line Crossing Detection

    4. The event triggered and park action related PTZ movement will be locked for 180 seconds after you enter the line crossing detection interface. Optionally, you can click the button to manually activate the movement, or lock the movement when the button turns to by clicking it. © Hikvision...
  • Page 66 Refer to Section 5.2.1 Configuring Motion Detection for more details. 8. Click tab to select the linkage method taken for the line crossing detection, © Hikvision...

  • Page 67: Configuring Region Entrance Detection

    Steps: 1. Enter the Region Entrance Detection settings interface: Configuration> Event > Smart Event> Region Entrance Detection 2. Check the checkbox of Enable to enable the Region Entrance Detection function. Figure 5-25 Configuring Region Entrance Detection © Hikvision...

  • Page 68: Configuring Region Exiting Detection

    Steps: 1. Enter the Region Exiting Detection settings interface: Configuration> Event > Smart Event> Region Exiting Detection 2. Check the checkbox of Enable to enable the Region Exiting Detection function. © Hikvision...
  • Page 69 Notify Surveillance Center, Send Email, Upload to FTP, Trigger Channel, Smart Tracking, White Light Flashing, Audible Warning, and Trigger Alarm Output are selectable.  For speed dome, you can also choose to link smart tracking. Smart Tracking should be configured in advance. © Hikvision...

  • Page 70: Unattended Baggage Detection

    The event triggered and park action related PTZ movement will be locked for 180 seconds after you enter the unattended baggage detection interface. Optionally, you can click the button to manually activate the movement, or lock the movement when the button turns to by clicking it. © Hikvision...

  • Page 71: Object Removal Detection

    Click on the live video to specify the four vertexes of the detection region, and right click to complete drawing. Repeat the step to configure other regions. Up to 4 regions can be set. You can click the button to clear all pre-defined regions. © Hikvision...

  • Page 72: Ptz Configuration

    The functions vary depending on different camera models. 5.4.1 Configuring Basic PTZ Parameters Purpose: You can configure the basic PTZ parameters, including proportional pan, preset freezing, preset speed, etc. Steps: 1. Enter the Basic Settings interface: Configuration > PTZ > Basic Settings © Hikvision...
  • Page 73 Non-motor Vehicle: Choose the Non-motor Vehicle when you monitor the non-motor vehicles.  Motor Vehicle: Choose the Motor Vehicle when you monitor the motor vehicles.  Auto: You are recommended to set it as Auto when the application scene of the speed dome is complicated. © Hikvision...

  • Page 74: Configuring Ptz Limits

    3. Click to save the settings. 5.4.2 Configuring PTZ Limits Purpose: The speed dome can be programmed to move within the configurable PTZ limits (left/right, up/down). Steps: Enter the Limit configuration interface: Configuration > PTZ > Limit © Hikvision...

  • Page 75: Configuring Initial Position

    The initial position is the origin of PTZ coordinates. It can be the factory default initial position. You can also customize the initial position according to your own demand.  Customize an Initial Position: Steps: Enter the Initial Position configuration interface: Configuration > PTZ > Initial Position © Hikvision...

  • Page 76: Configuring Park Actions

    Scheduled Tasks function is prior to Park Action function. When these two functions are set at the same time, only the Scheduled Tasks function takes effect.  Park function varies depending on different camera models. Steps: 1. Enter the Park Action settings interface: Configuration > PTZ > Park Action © Hikvision...

  • Page 77: Configuring Privacy Mask

    Privacy mask enables you to cover certain areas on the live video to prevent certain spots in the surveillance area from being live viewed and recorded. Steps: 1. Enter the Privacy Mask settings interface: Configuration > PTZ > Privacy Mask Figure 5-32 Draw the Privacy Mask © Hikvision...

  • Page 78: Configuring Scheduled Tasks

    Check the checkbox of Enable Privacy Mask to enable this function. 5.4.6 Configuring Scheduled Tasks Purpose: You can configure the network speed dome to perform a certain action automatically in a user-defined time period. Steps: Enter the Scheduled Task settings interface: Configuration> PTZ > Scheduled Tasks © Hikvision...
  • Page 79 6. After you set the scheduled task, you can click and copy the task to other days (optional). Figure 5-35 Edit the Schedule and Task Type 7. Click to save the settings. © Hikvision...

  • Page 80: Clearing Ptz Configurations

    The speed dome tracks the moving objects automatically after you configure this function. Note: The VCA speed dome do not support this function. Steps: 1. Enter the Smart Tracking settings interface: Configuration > PTZ > Smart Tracking Figure 5-37 Configure Smart Tracking © Hikvision...

  • Page 81: Prioritize Ptz

    2. Select Network or RS-485 from the dropdown list 3. Set the delay time. 4. Click to save the settings. 5.4.10 Position Settings Purpose: You can configure the position settings in this interface, including the position information of the © Hikvision...

  • Page 82: Rapid Focus

    Rapid Focus is a function to reduce time of focusing comparing with that of normal focusing. To use the function, calibration should be done first. Note: Rapid focus may not be supported by certain camera models. Steps: Enter the rapid focus interface Configuration > PTZ > Rapid Focus © Hikvision...
  • Page 83  If the line is not in the center, use PTZ control to adjust the scene. (3) Click Start Calibration, and calibration status appears on the live image. Save the settings after successful calibration. © Hikvision...

  • Page 84: Chapter 6 Camera Configuration

    Enter TCP/IP settings interface: Configuration > Network > Basic Settings > TCP/IP Figure 6-1 TCP/IP Settings 2. Configure the NIC settings, including the IPv4(IPv6) Address, IPv4(IPv6) Subnet Mask and IPv4(IPv6) Default Gateway. 3. Click to save the above settings © Hikvision...

  • Page 85: Configuring Ddns Settings

    Configuration > Network > Basic Settings > DDNS 2. Check the Enable DDNS checkbox to enable this feature. 3. Select DDNS Type. Two DDNS types are selectable: DynDNS and NO-IP.  DynDNS: Steps: (1) Enter Server Address of DynDNS (e.g. members.dyndns.org). © Hikvision...

  • Page 86: Configuring Pppoe Settings

    Configuration > Network > Basic Settings > PPPoE Figure 6-4 PPPoE Settings 2. Check the Enable PPPoE checkbox to enable this feature. 3. Enter User Name, Password, and Confirm password for PPPoE access. Note: The User Name and Password should be assigned by your ISP. © Hikvision...

  • Page 87: Configuring Port Settings

     Enhanced SDK Service Port: The default server port number is 8443, and it can be changed to any port number ranges from 2000 to 65535. © Hikvision...
  • Page 88 Click to save the settings. Configuring Multicast Purpose: Multicast is group communication where data transmission is addressed to a group of destination devices simultaneously. After setting up active multicast, you can send the source efficiently to multiple devices. © Hikvision...

  • Page 89: Advanced Settings

    SNMP port. By setting the Trap Address, the camera can send the alarm event and exception messages to the surveillance center. Note: The SNMP version you select should be the same as that of the SNMP software. Steps: 1. Enter the SNMP settings interface: Configuration > Network > Advanced Settings > SNMP © Hikvision...

  • Page 90: Configuring Ftp Settings

    Configuring FTP Settings Purpose: You can set a FTP server and configure the following parameters for uploading captured pictures. Steps: 1. Enter the FTP settings interface: Configuration > Network > Advanced Settings > FTP © Hikvision...
  • Page 91  Child directory: It is a sub-folder which can be created in the parent directory. The files will be saved in a sub-folder in FTP server. The name of folder can be defined as shown in Figure 6-11. © Hikvision...

  • Page 92: Configuring Email Settings

    Figure 6-12 Email Settings 2. Configure the following settings:  Sender: The name of the email sender.  Sender’s Address: The email address of the sender.  SMTP Server: The SMTP Server IP address or host name (e.g., smtp.263xmail.com). © Hikvision...
  • Page 93 Purpose: Platform access provides you an option to manage the devices via platform. Note: This function varies depending on different speed dome models. Steps: 1. Enter the Platform settings interface: Configuration> Network > Advanced Settings > Platform Access © Hikvision...

  • Page 94: Configuring Https Settings

     Proper configuration of all passwords and other security settings is the responsibility of the installer and/or end-user. Steps: 1. Enter the HTTPS settings interface. Configuration > Network > Advanced Settings > HTTPS © Hikvision...
  • Page 95 (3) Download the certificate request and submit it to the trusted certificate authority for signature. (4) After receiving the signed valid certificate, import the certificate to the device. (5) Click OK to save the settings. 3. There will be the certificate information after you successfully create and install the certificate. © Hikvision...

  • Page 96: Configuring Qos Settings

     It will ask for a reboot for the settings to take effect. Configuring 802.1X Settings Purpose: The camera supports IEEE 802.1X standard. IEEE 802.1X is a port-based network access control. It enhances the security level of the LAN. © Hikvision...
  • Page 97 Proper configuration of all passwords and other security settings is the responsibility of the installer and/or end-user. Steps: Connect the network camera to your PC directly with a network cable. Enter the 802.1X settings interface: Configuration > Network > Advanced Settings > 802.1X © Hikvision...
  • Page 98  Easy Wi-Fi Connection with WPS function WPS (Wi-Fi Protected Setup) refers to the easy configuration of the encrypted connection between the device and the wireless router. The WPS makes it easy to add new devices to an © Hikvision...
  • Page 99 If you need to access to the camera through the third party platform, you can enable Hikvision-CGI function. And if you need to access to the device through ONVIF protocol, you can configure ONVIF user in this interface. Refer to ONVIF standard for detailed configuration rules.

  • Page 100: Network Service

    Figure 6-20 Integration Protocol Settings 2. Check the Enable Hikvision-CGI checkbox and then select the authentication from the dropdown list. Then you can access to the camera through the third party platform. 3. Check the Enable ONVIF checkbox to enable the function.
  • Page 101 Alarm information can be sent to destination IP or Host via HTTP protocol. Steps: Input destination IP or host name, URL, and port number. Click Test to see if the service is available. Note: HTTP data transmission should be supported by the destination IP or Host. © Hikvision...

  • Page 102: Configuring Video And Audio Settings

    The parameters vary depending on different camera models.  Video Type: Select the stream type to video stream, or video & audio composite stream. The audio signal will be recorded only when the Video Type is Video & Audio. © Hikvision...
  • Page 103 It refers to the smoothness of the stream. The higher value of the smoothing, the better fluency of the stream, though, the video quality may not be so satisfied. The lower value of the smoothing, the higher quality of the stream, though it may appear not fluent. © Hikvision...

  • Page 104: Configuring Audio Settings

    Select LineOut for connected external speaker and Built-in Speaker for the built-in speaker the device has.  Output Volume: Slide the bar to turn up/down the volume. © Hikvision...

  • Page 105: Configuring Roi Settings

    When Dynamic Region is enabled, image quality of tracking target will be enhanced. Note: ROI function varies depending on different camera models. Enter the ROI settings interface: Configuration >Video/Audio > ROI Figure 6-23 Region of Interest (1) © Hikvision...

  • Page 106: Display Info. On Stream

    6.2.4 Display Info. on Stream Check the Enable Dual-VCA checkbox, and the information of the objects will be marked in the video stream. Then, you can set rules on the connected rear-end device to detect the events including line crossing, intrusion, etc. © Hikvision...

  • Page 107: Configuring Image Settings

    The Exposure Mode can be set to Auto, Iris Priority, Shutter Priority, and Manual.  Auto: The iris, shutter and gain values will be adjusted automatically according to the brightness of the environment. You can limit the changing ranges of iris and shutter in Auto mode for better exposure effect. © Hikvision...
  • Page 108 Figure 6-27 Manual Mode  Limit Gain This feature is used to adjust gain of the image. The value ranges from 0 to 100.  Slow Shutter This function can be used in underexposure condition. It lengthens the shutter time to © Hikvision...
  • Page 109 Day: In Day mode, the speed dome displays color image. It is used for normal lighting conditions.  Night: In Night mode, the image is black and white. Night mode can increase the sensitivity in low light conditions. © Hikvision...

  • Page 110: White Balance

    This makes it possible to see the detail of the image that would normally be hidden. White Balance The White Balance mode can be set to Auto, MWB, Outdoor, Indoor, Fluorescent Lamp, Sodium Lamp, and ATW. © Hikvision...

  • Page 111: Image Enhancement

    If you are a professional technician, you can set it to Expert Mode then adjust Space DNR Level and Time DNR Level. The level ranges from 0 to 100. Figure 6-34 Expert Mode  Defog Mode You can set the Defog Mode to Auto, ON or OFF as you need. © Hikvision...

  • Page 112: Video Adjustment

    You can set Zoom Limit value to limit the maximum value of zooming. The value can be selected from the list.  Local Output You can select the output mode to ON or OFF. Note: The functions vary depending on different camera models. © Hikvision...

  • Page 113: Configuring Osd Settings

    5. Select from the dropdown list to set the Time Format, Date Format, Display Mode, OSD Size， Font Color and Alignment. 6. You can use the mouse to drag the text frame IPdome in the live view window to adjust the OSD position. Figure 6-38 Adjust OSD Location 7. Click to activate above settings. © Hikvision...

  • Page 114: Configuring Image Parameters Switch

    3. When you enable the function of Link to Preset, select one preset from the dropdown list, check the corresponding checkbox, set the time period and the linked scene for the selected preset. (Up to 4 periods can be configured for one preset.) Figure 6-39 Link to Preset © Hikvision...

  • Page 115: Configuring System Settings

    Web Version, Plugin Version, Number of Channels, Number of HDDs, Number of Alarm Input, Number of Alarm Output, and Firmware Version Property are displayed. The information cannot be changed in this menu. It is the reference for maintenance or modification in future. © Hikvision...

  • Page 116: Time Settings

    Configuration > System > System Settings > Time Settings Figure 6-43 Time Settings  Configuring Time Synchronization by NTP Server Steps: 1. Check the radio button to enable the NTP function. 2. Configure the following settings: Server Address: IP address of NTP server. © Hikvision...
  • Page 117 When the camera is taken to another time zone, you can use the Time Zone function to adjust the time. The time will be adjusted according to the original time and the time difference between the two time zones. © Hikvision...
  • Page 118 Transparent channel: Connect a serial device directly to the camera. The serial device will be controlled remotely by the computer through the network. Note: RS-232 function varies depending on different speed dome models. Steps: 1. Enter RS-232 Port setting interface: Configuration> System > System Settings > RS-232 © Hikvision...
  • Page 119 Figure 6-49 RS-485 Settings 2. Set the RS-485 parameters and click to save the settings. Note: The Baud rate, PTZ Protocol and PTZ Address parameters of the camera should be exactly the same as those of the control device. © Hikvision...

  • Page 120: Maintenance

    Set the saving path to save the configuration file in local storage. Click Diagnose Information to download the log and system information.  Importing Configuration File Steps: Enter the Maintenance interface: Configuration > System > Maintenance > Upgrade & Maintenance © Hikvision...

  • Page 121: Upgrading The System

    Before you start: Configure network storage for the camera or insert a memory card in the camera. Steps: 1. Enter the Log interface: Configuration > System > Maintenance > Log © Hikvision...
  • Page 122 4. (Optional) Third Stream: For certain models, the third stream is not enabled by default. If the third stream is required, enable the function. Note that other function may be mutually exclusive with the third stream. 5. Click button to activate the settings. © Hikvision...
  • Page 123 2. Input Log Server IP and Log Server Port. 3. Click Test to test settings. 4. Install certificates. Client certificate and CA certificate are required.  Client Certificate (1) Click Create button to create the certificate request. Fill in the required © Hikvision...

  • Page 124: Security

    Purpose: With this function on, the camera allows certain IP addresses whether to log in or not. Steps: 1. Enter IP Address Filter interface: Configuration > System > Security > IP Address Filter Figure 6-54 IP Address Filter © Hikvision...
  • Page 125 Configuration> System > Security > Security Service Check the checkbox to enable the Illegal Login Lock function. Illegal Login Lock: Enabling illegal login lock function is to automatically lock the device IP after the user performing certain failed password attempts. The number of allowed © Hikvision...

  • Page 126: User Account

    Enter the User Management interface: Configuration > System > User Management The admin user has access to create, modify or delete other accounts, and grant different permission to different user levels. We highly recommend administrator to manage the device © Hikvision...
  • Page 127 The level indicates the permissions you give to the user. You can define the user as Operator or User. In the Basic Permission field and Camera Configuration field, you can check or uncheck the permissions for the new user. Click to finish the user addition. © Hikvision...
  • Page 128 1. Click to select the user from the list and click 2. Modify the User Name, Level or Password. 3. In the Basic Permission field and Camera Configuration field, you can check or uncheck the permissions. 4. Click to finish the user modification. © Hikvision...
  • Page 129 1. Click Account Security Settings to enter setting interface. Configuration > System > User Management > User Management 2. Select security questions and input your answers. 3. Input your E-mail address for password recovery. 4. Save the settings.  Password Recovery Operation © Hikvision...

  • Page 130: Online Users

    User information, such as user name, level, IP address, and operation time, is displayed in the User List. Click Refresh to refresh the list. Note: Administrator can control the Simultaneous Login. Click General on User Management page, and set desired number. Admin password is required for this operation. Figure 6-61 Simultaneous Login © Hikvision...

  • Page 131: Appendix

    Device can be searched and displayed in the list in 15 seconds after it went online; it will be removed from the list in 45 seconds after it went offline.  Search online devices manually You can also click to refresh the online device list manually. The newly searched devices will be added to the list. © Hikvision...
  • Page 132  Proper configuration of all passwords and other security settings is the responsibility of the installer and/or end-user. Figure A.1.2 Modify Network Parameters © Hikvision...
  • Page 133 Note that the matrix contains all communication ports of Hikvision network cameras. Device Command Scan the following QR code to get device common serial port commands. Note that the command list contains the commonly used serial port commands for all Hikvision network cameras. © Hikvision...
  • Page 134 UD14905B © Hikvision...
