ACE AUDIO KIT

P/N 2879703

Application

SPORTSMAN ACE MODELS

Before you begin, read these instructions twice and check to be sure all parts and tools are accounted for. Please

retain these installation instructions for future reference and parts ordering information.

IMPORTANT:

• Mirror kit (PN 2879712) will not work with the audio system.

• Roof, windshield, rear panels will work with audio system

• Refer to manual included with the audio kit for system operation.

• Two people are required to install this kit. Do not attempt to install this kit by yourself.

• Main system is controlled by keyed power, so when the vehicle is off the stereo is also. However,

the LED lights are powered constantly, so remember to turn those off after using them.

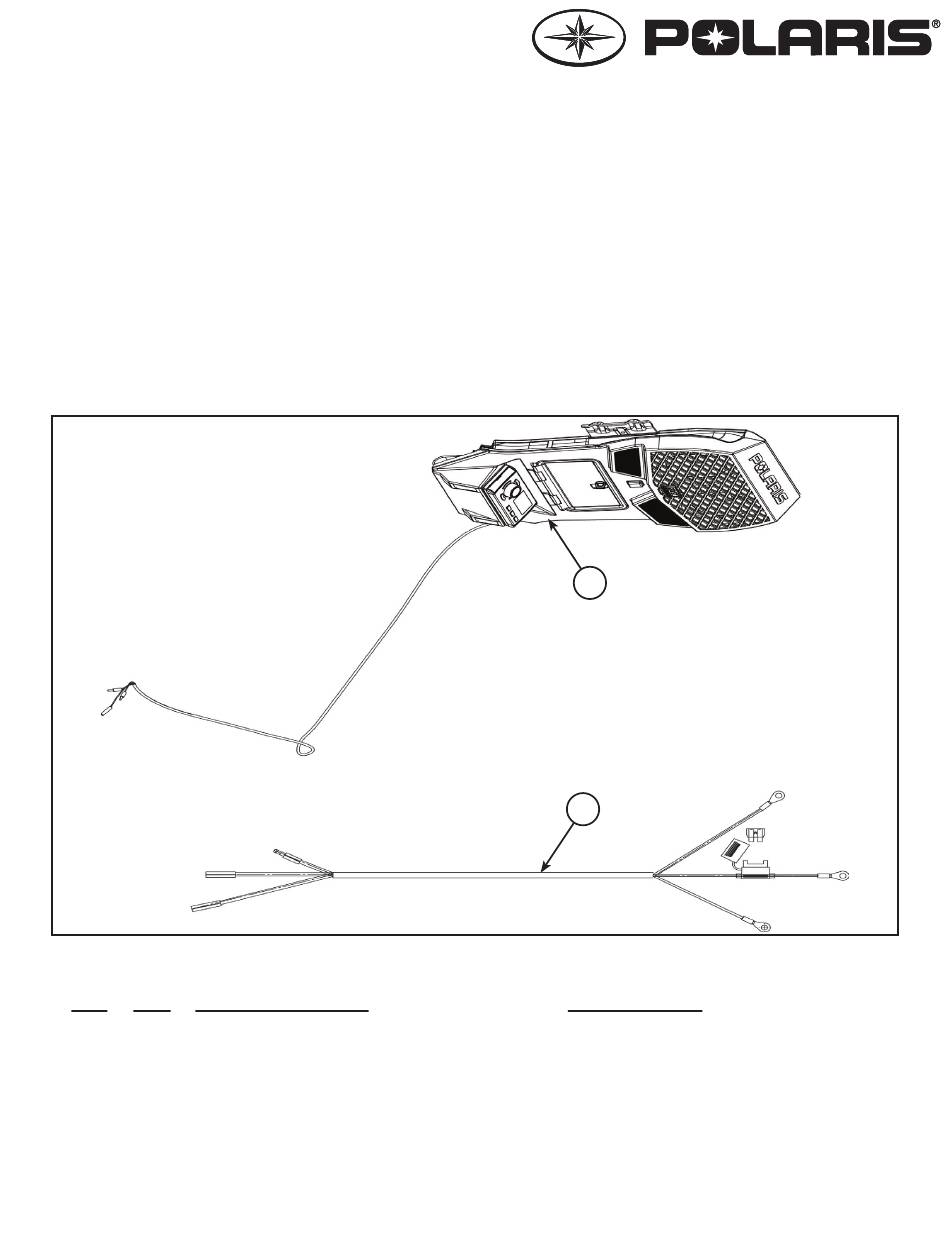

Kit Contents:

Ref

Qty

P/N 9924924 Rev 01 12/13

Part Description

ACE Audio Base System

Harness-Audio

Instructions

Service Hardware Kit

Part Number

2879703

2412730

9924924

2205570

-1-

Table of Contents

Page 1: Kit Contents
ACE AUDIO KIT P/N 2879703 Application SPORTSMAN ACE MODELS Before you begin, read these instructions twice and check to be sure all parts and tools are accounted for. Please retain these installation instructions for future reference and parts ordering information. IMPORTANT: • Mirror kit (PN 2879712) will not work with the audio system.
Page 2: General Installation
Phillips Screwdriver APPROXIMATE ASSEMBLY TIME: 30 minutes IMPORTANT: Your Polaris ACE AUDIO KIT is exclusively designed for your vehicle. Please read the installation instructions thoroughly before beginning. Installation is easier if the vehicle is clean and free of debris. For your safety, and to ensure a satisfactory installation, perform all installation steps correctly in the sequence shown.
Page 3: Electrical Connections
7. Have a second person hold the audio system in place while the brackets are installed from the top using the six screws removed previously. Figure 3. Bracket NOTE: Torque the screws to 6 ft. lbs. (8.1 Nm). ROPS Figure 3 8.
Page 4 10. Connect wire harness from audio system to harness extension. Route harness over main strut tube and into bus bar area. Figure 6. Wire Harness Strut Tube Figure 6 11. Connect red (main power) wire to battery power terminal on bus bar. Connect black (ground) and orange (keyed power) wires to corresponding posts on bus bar.
Page 5: Service Kit
SERVICE KIT: 2205570 Antenna Plug Connector Cap Screw Bracket Foam Strip P/N 9924924 Rev 01 12/13...
