U s e r M a n u a l

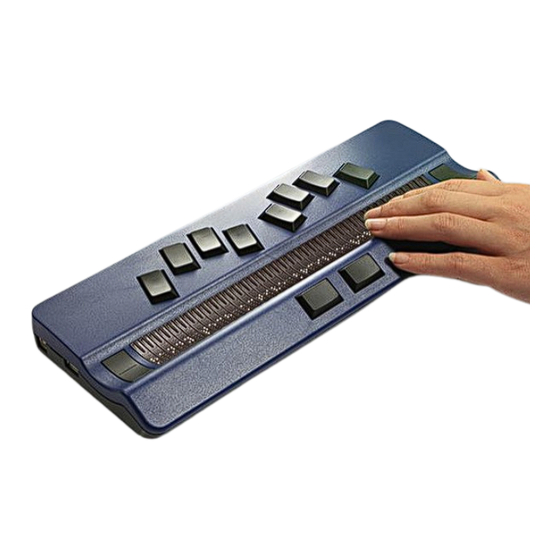

C o n n e c t B r a i l l e
Handy Tech is a trademark of Help Tech GmbH
©
Help Tech GmbH; Brunnenstraße 10; 72 160 Horb, Germany
Phone : +49 7451 55 46 0; Fax: +49 7451 55 46 67
E-Mail:
Version 1.0
Horb, January 2019
All Rights Reserved
inf o@helptech.de
- Internet:
www.helptech.de
