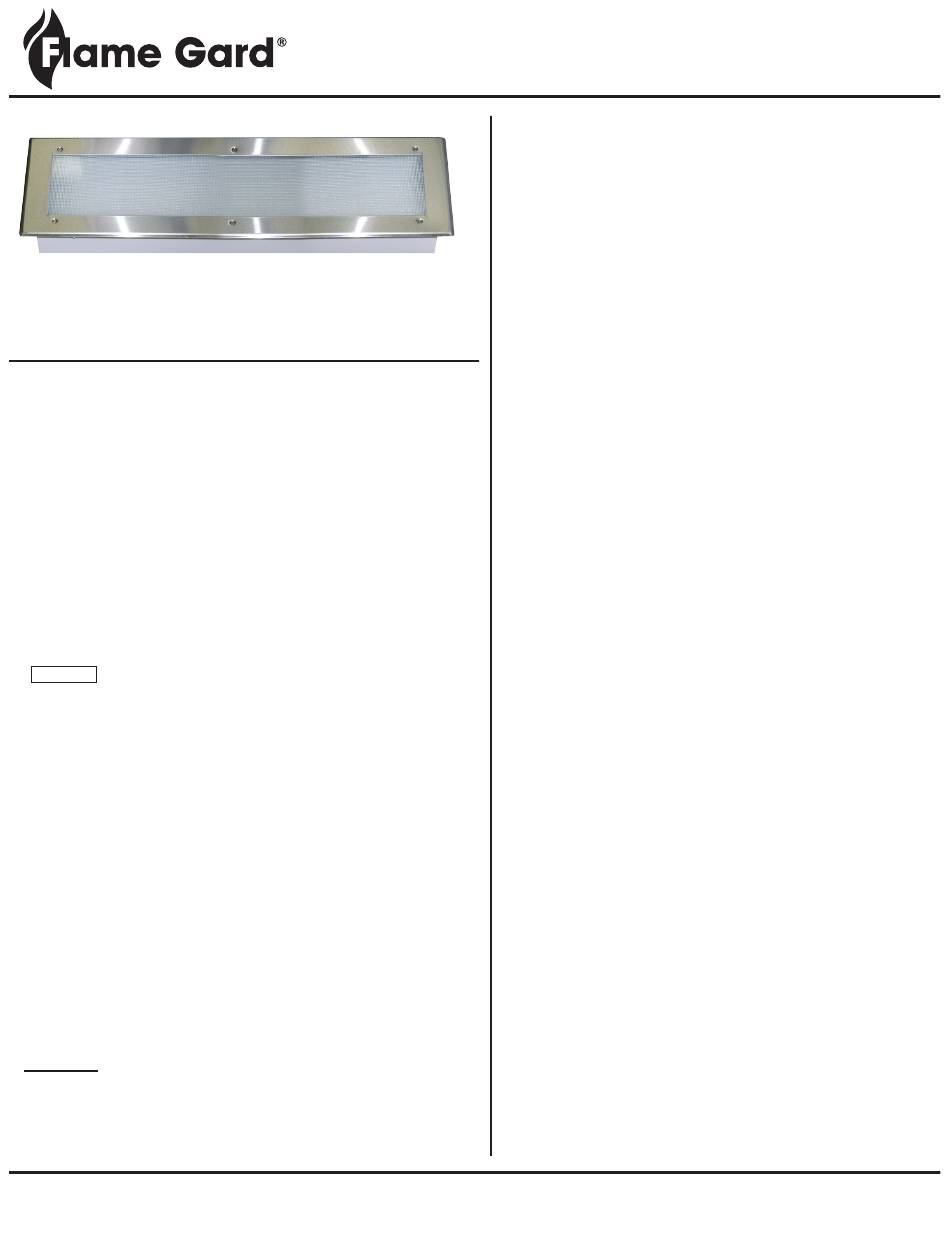

Flame Gard L82-1030-CE Installation Instructions

MODEL NO. L82-1030-CE
L82-1040-CE

WARNINGS:

• Risk of fire or electric shock.
• Installation to be performed by a qualified electrician with
knowledge of luminaire electrical systems.
• Do not attempt installation if not qualified.
• All installation work must comply with local and national electrical
c odes, the manufacturer assumes no responsibility for improper
installation or application.
• The mounting surface must be strong enough to minimize the risk of
light fixture falling down.
• All Supply Wires must be H05VVF-3G1.0 degree or higher. They must
withstand 90°C.
• Electrical supply to fixture must be turned off before attempting to
service the fixture.
• Always make sure that the supply voltage matches the LED
driver voltage.
• CAUTION - RISK OF DAMAGE. Use ONLY LED light plate specified
on fixture.
• FIXTURE MUST BE GROUNDED.
• THIS DEVICE NOT INTENDED FOR USE WITH EMERGENCY EXITS.
• THIS DEVICE NOT INTENDED FOR USE WITH DIMMERS.
• THIS DEVICE IS FOR INDOOR USE ONLY
CAUTION
INSPECT CONTENTS IMMEDIATELY AND FILE A CLAIM WITH
DELIVERING CARRIER FOR ANY DAMAGE.
SAVE YOUR BOX AND ALL PACKING MATERIALS.
YOU ARE RESPONSIBLE FOR DAMAGE TO YOUR UNIT
IF RETURNED IMPROPERLY PACKED.
CHG Europe B.V. Hazeldonk 6475 • 4836 LH Breda • The Netherlands • Phone +31 76 596 8699 • Fax +31 76 596 3114
L82 Recessed Canopy Hood Fluorescent Lights
INSTALLATION INSTRUCTIONS
www.keilhardware.com • www.componenthardware.com
INSTALLATION INSTRUCTIONS:

Step 1

TURN OFF ELECTRICITY AT BREAKER OR FUSE BOX.

Step 2

Determine which cutout to use for the fixture.

Step 3

Remove lens cover by turning out flat head screws.
(Lens cover is retained by 2 cables to limit movement)

Step 4

Determine which knock out to use and install the grommet which
is supplied with fixture. Feed supply wires through the grommet
into fixture. The grommet should be cut at the position between
the largest circle and the middle one.

Step 5

Install fixture, apply RTV (DOW Corning 732 or equiv.) to
perimeter of mounting flange. Fit into cutout, secure from far side
using screws or bolts (not supplied).
Screws or bolts (not supplied): Thread outer diameter 4mm min.,
thread length 20mm min.

Step 6

Remove 2 screws retaining reflector plate, remove reflector plate.

Step 7

All supply wires should be H05VVF-3G1.0 degree or higher. They
must withstand 90°C. They must be three-core wires. The cross-
sectional area of each core is 1mm
ground wire ~9.5mm (3/8"). Connect blue supply wire on terminal
block to blue lead wire. Repeat procedure with brown supply wire
connection to brown lead wire. Secure green/yellow ground lead
to fixture ground stud.

Step 8

Place Reflector Plate back into original position and fasten the
2 screws.

Step 9

Install Lamps, twist to lock.

Step 10

Align lens cover to fixture flange. Turn flat head screws into
plastic nut retainers. Adjust screw torque to provide even contact
of beveled stainless frame to surface.
CAUTION: DO NOT OVER TORQUE.

MAINTENANCE AND REPAIR:

Only carry out maintenance and repair that is described in these
instructions. In case of malfunctions and damage please contact
an authorized electrician.
Please turn off power supply before maintenance and let the
product cool down.
min. Strip supply wires, and
2
INS-L82-10x0-CE Rev. 6/2017
