Summary of Contents for Safety View SVM-070C

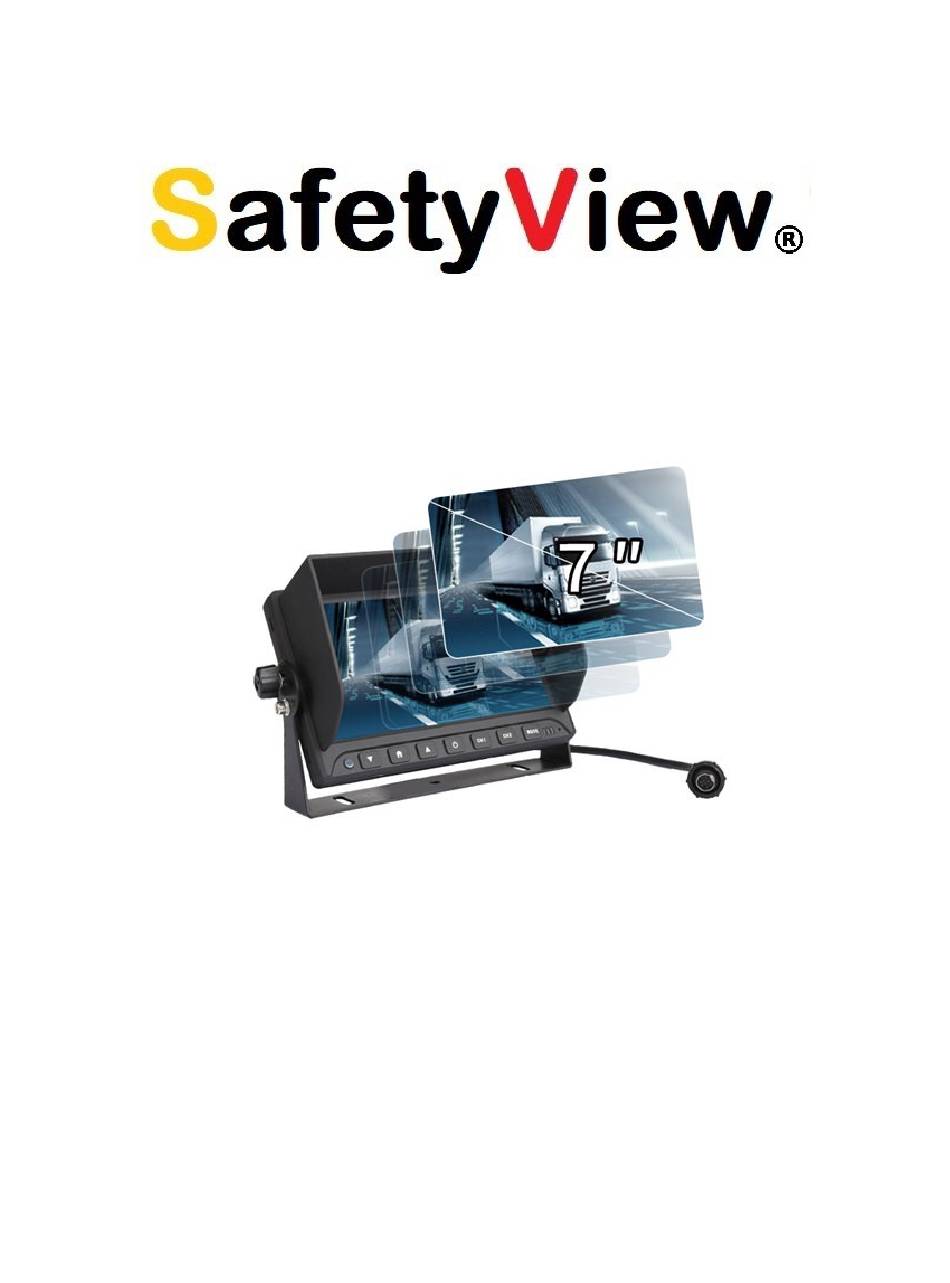

- Page 1 7” LCD Color Monitor SVM-070C Operating and Installation Instructions Please read this instruction manual carefully before installing and operating this device Installation only to be carried out by qualified technicians...
- Page 2 Thank you for purchasing Safety View backup camera monitor model SVM-070C2. Please read through this manual before installing and operating this equipment. CAUTIONS: Please read the operating manual carefully and keep the manual in the cab for future reference Please do not install this monitor where it can ob- ...
-
Page 3: What's In The Box
Before you begin to install your new Safety View backup camera system, please check that you have everything needed for the installation. What’s in the box One 7” color monitor with remote One Steel U-Bracket or Ram mount Four bolts (butterfly or cap screws) for mounting... -
Page 4: Appearance And Function
Appearance and Function SVM-070C 7” AHD/CVBS Video monitor Steel U-bracket, bracket to hold monitor Down button, Decreases menu functions Home button, accesses the monitor menu Up button, Increases menu functions Power button, turn monitor on and off Ch 1, Input video camera 1... -
Page 5: Monitor Installation
Monitor Installation Step 1 Find a safe suitable location for mounting the monitor. Make sure it does not interfere with the opera- tor’s view. Mark the three holes in the u bracket (1) where the monitor will be permanently fastened. Drill three pilot holes for the bracket. - Page 6 Monitor Installation Step 3 Mount video camera as per manufactures in- structions. Route camera cables through equipment/ machine being careful not to come into contact with hot machine parts, moving parts or sharp objects. Find a suit- able opening through the cab. Try routing the cable along side with other cables or hydraulic lines.
- Page 7 Monitor Installation Step 6 Connect the 4 pin female camera cable to 4 pin male camera input on the wiring harness marked AV2. If you are connecting two cameras to this system, repeat steps 3 and 4. and connect the 4 pin female from the second camera to AV1.
-
Page 8: Hand Held Remote Control
Hand Held Remote Control... -
Page 9: Specifications
Specifications Display screen size: 7” Display format: 16:9,4/3 Video system: NTSC/PAL Automatic Power Supply: 9v to 36 volt DC Power Consumption: Less than 3 watts Power dissipation: 7.5 watts Video resolution: 800 RGB 480/1024 RGB600 ... - Page 12 Leaskdale, Ontario, Canada, L0C1C0 1 (888) 341-9224 www.safetyview.ca info@safetyview.ca Safety View is a registered trademark Copyright 2019 safety View. No part of this manual may be reproduced, modified or otherwise used without prior written notice. Specifications subject to change without notice...
