Risk of fire or electric shock. The electrical rating of these products are 120-277 Vac.
Risk of fire or electric shock. LED Commercial High Bay installation requires knowledge of luminaires electrical systems.
If not qualified, do not attempt installation. Contact a qualified electrician.
To prevent wiring damage or abrasion, do not expose wiring to edges of sheet metal or other sharp objects.
Disconnect power before installing the product or servicing it.
Wait until fixture has cooled down before installing or servicing the fixture.

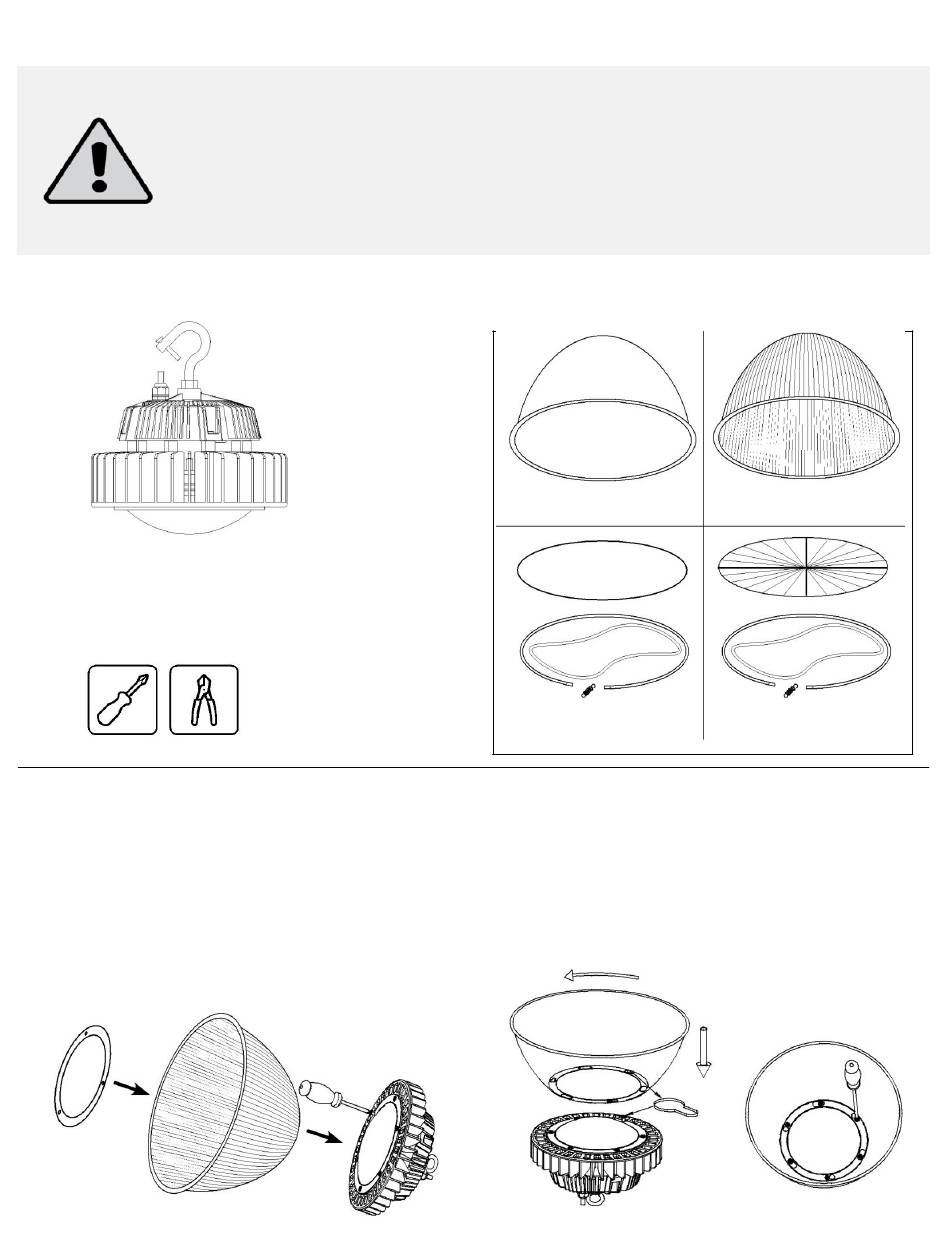

High Bay Fixture Top
Required Tools
Philips Screwdriver (to install diffuser) and Wire Stripper
(to connect wires to power source)
Installing Diffuser
1a
PC Diffuser:
Remove (3) protruding screws from High Bay top.
Place diffuser ring on PC diffuser and install it on
the fixture top.
MHTL-HB-PRM INSTALLATION INSTRUCTIONS
Diffusers and Optional Bottom Lens
Aluminum Diffuser
Bottom Lens Kit for Al
(Lens, Gasket, Spring)
1
Aluminum Diffuser:
Loosen (3) protruding screws on High Bay top.
Place aluminum diffuser over the screws, turn-n-
lock the diffuser in place. Secure the three screws.
PC Diffuser
Bottom Lens Kit for PC
(Lens, Gasket, Spring)
Advertisement
Table of Contents
Summary of Contents for MHT Lighting MHTL-HB-PRM
- Page 1 MHTL-HB-PRM INSTALLATION INSTRUCTIONS Risk of fire or electric shock. The electrical rating of these products are 120-277 Vac. Risk of fire or electric shock. LED Commercial High Bay installation requires knowledge of luminaires electrical systems. If not qualified, do not attempt installation. Contact a qualified electrician.
- Page 2 Installing Bottom Lens (if lens in included) - Place gasket on the lens - Place lens on the diffuser - Place ring over diffuser - Secure with spring hook Installing Fixture Remove fixture from the box. Install diffuser as instructed above. Turn off power.
