Summary of Contents for Pro 2 HA03

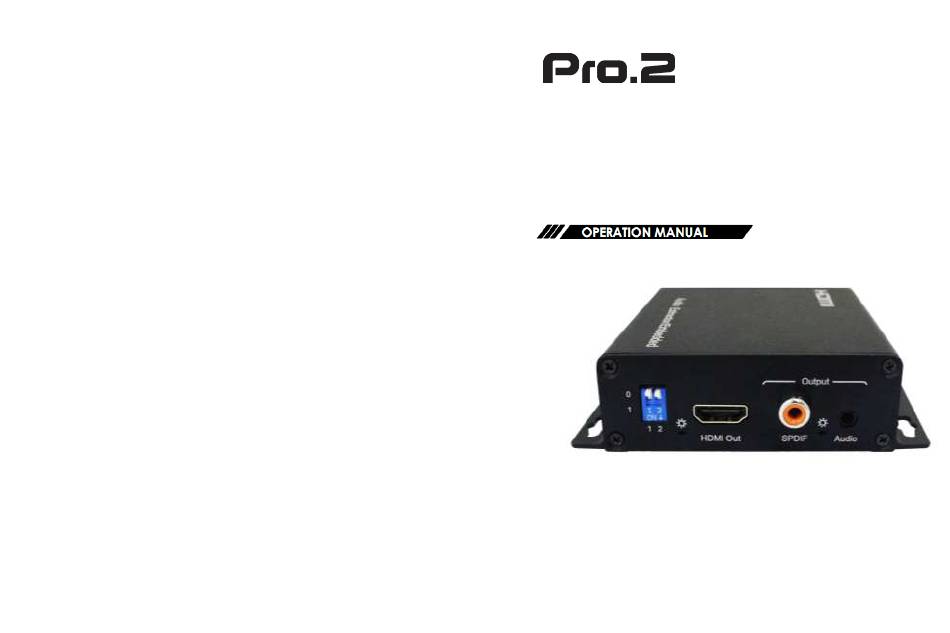

- Page 1 HDMI2.0 Audio Inserter & Extractor, 4K@60HZ YUV4:4:4 Model: HA03...
- Page 2 Operating Instruction Dear Customer Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. FEATURES Support audio embedding, AUTO, SPDIF5.1, Analog Audio PCM2.0 output ...
- Page 3 Operating Instruction Operating Instruction TABLE OF CONTENTS Specifications Panel Descriptions Connecting and Operating Application Diagram Maintenance Product service Warranty Specifications -5 to +40℃(+23 to +104℉) Operating Temperature Range Operating Humidity Range 5 to 90%RH (No Condensation) Input Video Signal 0.5-1.0 Volts P-P Input DDC Signal 5 volts p-p(TTL) 4Kx2K/1080P/1080i/720P/576P/576i/480P/480i...
- Page 4 Operating Instruction Operating Instruction PANEL DESCRIPTIONS Connecting and Operating Front Panel 1) Connect the HDMI signal source (Such as PS3, STB etc) into HDMI input of 4K HDMI Audio Extractor & Embedded. 2) Connect the HDMI display device (such as: HD-LCD, HD-DLP) into HDMI output of 4K HDMI Audio Extractor &...
