Page 2: Table Of Contents
Table Of Contents Hardware Description··················································································· 2 Typical Connection·······················································································3 Connection Configuration·············································································· 3 3.1. Reset································································································ 3 3.2. Log In Control Panel············································································ 4 Decoder Settings························································································· 8 4.1. Status······························································································· 8 4.2. Network·····························································································9 4.3. Decoder Setting·················································································· 9 4.3.1 Input Settings····································································································· 9 4.3.2 Output Settings································································································· 10 4.3.3 OSD Settings···································································································... -
Page 3: Hardware Description

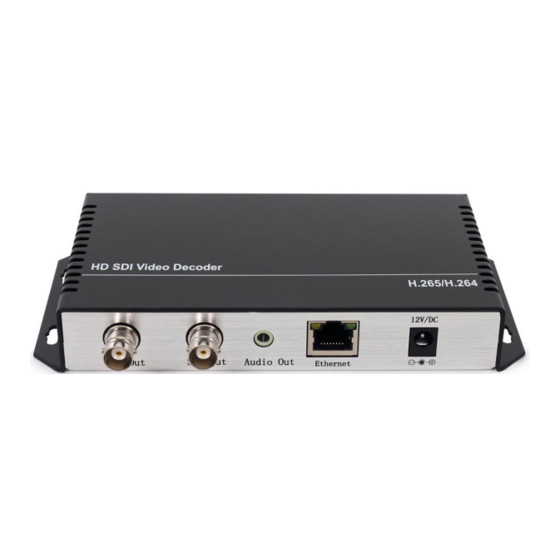

Preface Many thanks for your support to URayTech video encoder and video decoder. For optimum performance, please read the instruction before connecting or operating the device. Please keep this manual for future reference. 1. Hardware Description • SDI Out1: SDI output. For connecting to the device which has SDI interface •... -
Page 4: Typical Connection
Typical Connection Step 1. Connect the decoder to 12V /1A power adapter Step 2. Connect the decoder to router or switch by Ethernet cable Step 3. Connect the decoder to SDI displayer by BNC cable 3. Connection Configuration 3.1 Reset Insert a needle into the ‘RST’... -
Page 5: Log In Control Panel
be initialized. The default IP address of the control panel is 192.168.0.35 The default log in ID and password is ‘admin’ 3.2 Log In Control Panel Most of customers can’t log in the control panel of video decoder by directly enter 192.168.0.35 in browser. - Page 6 Step 4. Click ‘‘Details’’ You can see the IP address and default gateway of your PC(laptop) here. For example, the IP address of my PC(laptop) is 192.168.1.100, the gateway of of my PC(laptop) is 192.168.1.1. Please remember the IP address and default gateway of your PC(laptop), it will be used in step 10.
- Page 7 Step 7. Choose ‘‘Use the following IP address’’ Step 8. Change the IP address of PC(laptop), and click ‘’OK’’ You can set the IP address to 192.168.0.** (** is a number from 2 to 255 except for 35) and set the default gateway to 192.168.0.1. Step 9.
- Page 8 Now you can log in the control panel of video decoder, but you can’t use your PC(laptop) in wide area network. So now you need to change the IP address of video decoder. Step 10. Change the IP address of video decoder In step 4, you already knew the IP address and default gateway of your PC(laptop).
-
Page 9: Decoder Settings
Step 12. Choose ‘‘Obtain an IP address automaticlly’’, and then click ‘’OK’’ Congratulation! You can use the PC(laptop) in wide area network and log in the control panel of video decoder simultaneously. Please remember IP address of video decoder. 4. Decoder Setting 4.1 Status You can see the input status and output status here. -
Page 10: Network
4.2 Network • DHCP: If you choose ‘enable’, the IP address of video decoder will be random • IP: You can change the log in IP address of video decoder here • Gateway: You can change the gateway of video decoder here 4.3 Decoder Setting 4.3.1 Input Settings •... -
Page 11: Output Settings
4.3.2 Output Settings • Audio Source: You can choose audio source from Media url1 to Media url9 as output audio. If choose ‘None’, no audio output. • Audio Out: If choose ‘SDI’, there is no audio output from 3.5mm external audio interface;... -
Page 12: System
4.4 System 4.4.1 Change Password You can change the log in ID and password. The default ID and password is ‘’admin’’. 4.4.2 System Information You can see the firmware version of video decoder here. Please send us the screenshot of the firmware version if you need new firmware. 4.4.3 Auto Reboot １１... -
Page 13: Upgrade Settings
4.4.4 Upgrade Setting Please upload the entire .rar file. Please don’t upgrade the wrong firmware, otherwise it is easy to make the device dead. 4.4.5 System Setting Reboot: Please reboot the device after you have changed the setting. Reset: All parameters will be initialized after you click ‘Reset’. The default IP address of video decoder is 192.168.0.35, and the default log in ID and password is ‘admin’. -
Page 14: Contact
If you still have problem of using the device after reading this user manual, please contact us. We will arrange an engineer to help you solve the problem. Here is the contact method of Linda. Linda Zheng ------------------------------------------------- Shenzhen URay Technology Co., Ltd Email: linda@szuray.com Skype: .linda_go@yeah.net...
