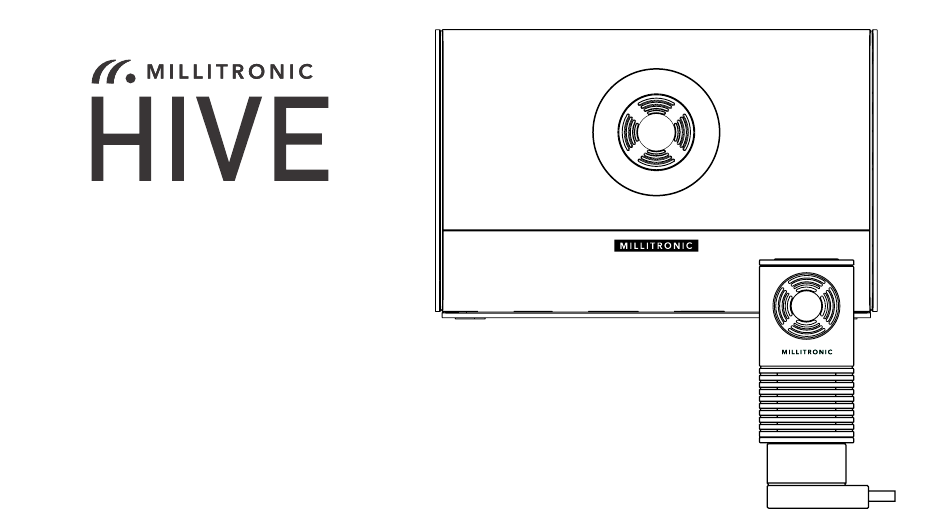

- Page 1 Wireless USB3.0 transmitter Wireless Dock receiver Driver Installation & User Manual Supervised By MILLITRONIC Co., LTD August, 2019 Version: 3.0 7AD000000003(A)
-
Page 2: Table Of Contents
Step 4 - Choosing Install Location And Start To Install ......09 ™ MILLITRONIC CO., LTD Step 5 - Installation Complete ..............10 Logo are owned by MILLITRONIC CO., Chapter 2 – User Manual ............10 LTD Any non MILLTRONIC trademarks Using The “MilliDock”... -
Page 3: Overview
- One laptop - One displayer with HDMI / VGA connector UNIVERSAL DOCKING STATION: The Millitronic - One HDMI / VGA cord Hive WiGig Docking station is compatible with all PC laptops (Windows 10 64bit) that are equipped with Features: USB3.0 ports. - Page 4 Specification Wireless Dock Receiver Wireless 60GHz Radio Adaptive 180 Degree Beamforming Connection Interface Compliant with USB 3.0 / 2.0 Compliant with HDMI/VGA (Single output) Ethernet Dimension Size: 185 x 120.7 x 40.3 mm Weight: 246 g Certification FCC approved for indoor use Power DC 12V-1A in Overview...
-
Page 5: Specification
Specification Wireless 60GHz Radio Wireless USB3.0 Transmitter Adaptive 360 Degree Beamforming Features USB 3.0 plug and play, driver included Storage: 8GB Connection Interface Compliant with USB 3.0 Type A Driver Support Windows 10, 64-bit RS3 v1709 above only Dimension Size: 110.3 x 59.3 x 17.3 mm Weight: 65 g Certification FCC approved for indoor use... -
Page 6: The Working Area
The Working Area Clear This Area The working range of the dock is a half-circle in front of itself, with a radius of 5 meters. The dock should be placed as the same level as the dongle or within 1m higher than the dongle Our dongle is omnidirectional and can be plugged Dock Dongle... -
Page 7: Chapter 1 - Installing The Dock
Chapter 1 – Installing the dock Step 1 – Setting Up The Dock To set up the dock, do the following: External Monitor ◘ Connect the power adapter to the power VGA Table connector of the dock. HDMI Table ◘ Plug the power adapter to an electrical socket. Dock ◘... -
Page 8: Step 2 - Execution The Installer
PC”. When your laptop displays the contents as below, please double click to continue. Please note that the installer only installs the drivers for Hive. If your USB device requires vendor driver, install your USB device driver. Visit：http://millitronic.com.tw for new updates. - Page 9 ◘ After executing the installer, it will guide you ◘ It will then display the screen below. Please click through the installation of the MilliDock application. the “Next” button to continue with installation. Click “Yes” to continue the installation Chapter 1 - Installing the dock...
-
Page 10: Step 3 - License Agreement And Choose Components
Step 3 - License Agreement And Choose components ◘ The License Agreement is then shown. Choose ◘ The user can select the components to install “I accept …” and click “Next” to continue. during this phase. All of these drivers are needed for MillitronicDock to operate. -
Page 11: Step 4 - Choosing Install Location And Start To Install
Step 4 - Choosing Install Location And Start To Install ◘ Choose the install path and Click “Install” to ◘ Please wait for the installation process to start begin installation. complete. Chapter 1 - Installing the dock... -
Page 12: Step 5 - Installation Complete
Chapter 2 – User Manual Step 5 - Installation Complete Using The “MilliDock” App ◘ Click “OK” to close this window and complete ◘ After finishing the installation, the icon installation. of the App will appear on your desktop. Click the icon to start the App. ◘... -
Page 13: Waiting For The First Time Auto Initializing
Waiting For The First Time The Status Of The MilliDock App Auto Initializing ◘ For the first time launch, the MilliDock will There are several messages which indicate the status of the MilliDock App. The explanations connect, then initialize and display automatically. for the different statuses are shown below:. - Page 14 Loading: Waiting: ◘ When the dongle is detected, ◘ If the App shows this status, it will display a “Loading” wait for a moment and it will message while the computer change to other status. If the checks the settings of the status keeps over mins, exit dongle.
-
Page 15: Connection Success
Connection Success ◘ After few seconds, it would display a “Connect server” message and the screen will be shown at the second monitor. ◘ You can check the status of the 2nd monitor under Windows advanced display settings Chapter 2 - User Manual... -
Page 16: Stop And Exit
Settings Stop and Exit ◘ Right click the icon ◘ If you want to finish on the toolbox, click the display, you can “Setting” on the menu click the “Stop” button and a form as shown to finish. below will appear. You can change the settings through the following ◘... -
Page 17: Uninstalling Millidock App
Uninstalling MilliDock App 1. Open “Apps & feature”, and then find “MilliDock”. 2. Reboot your system to finish the uninstallation Click the “Uninstall” button to uninstall MilliDock process. App. Chapter 2 - User Manual... -
Page 18: Federal Communication Commission Interference Statement
Federal Communication Commission Interference Statement Millitronic MG360 FCC ID: 2AJASU3WG360 ● Reorient or relocate the receiving antenna. ● Increase the separation between the equipment This equipment has been tested and found to and receiver. comply with the limits for a Class B digital device, ●... -
Page 19: Federal Communication Commission Interference Statement
Federal Communication Commission Interference Statement Millitronic Hive Wireless Dock Receiver ● Reorient or relocate the receiving antenna. Contains FCC ID: 2AJAS2019M2 ● Increase the separation between the equipment and receiver. Federal Communication Commission Interference Statement ● Connect the equipment into an outlet on a... - Page 20 USERS MANUAL OF THE END PRODUCT: FCC Radiation Exposure Statement: This equipment complies with FCC radiation In the user manual of the end product, the end user exposure limits set forth for an uncontrolled has to be informed to keep at least 20cm separation environment.
-
Page 21: Appendix 1: Wireless Usb3.0 Transmitter Light Signals
Model Name Connector Gain (dBi) Type Ready to Use Connecting Printed Millitronic MLPBM2 antenna If the signal is not green or blue, unplug This Module may not be integrated into host devices and reconnect the transmitter. that are addressed for operation inside airplanes/ satellites. -
Page 22: Appendix 2: Safety Information
Appendix 2: Safety Information 1.This product can only be used in rooms at 26 degrees Celsius (Fahrenheit 78.8), please do not use the product in a non-ventilated environment. 2. Avoid covering the machine when the machine is in use. 3.Pull out from the bottom when removing the dongle Appendix 3: Troubleshooting Not Detection Of The Driver Of The Components:... - Page 23 Display Card Initialization Failed: Unpredictable Error Has Occurred: In this case, wait for 10 seconds In this case, exit the App and restart the and reconnect again. App again. If this error message still shows, follow the steps of “Uninstall MilliDock App” to uninstall restart the laptop.
- Page 24 My USB device does NOT work: There is another user connected to this dock. The The Hive installer only installs the drivers for Hive. If dock is occupied by another user. If the dongle is your USB device requires vender driver, install your unplugged before you stop the app or before the USB device driver.
- Page 25 Fail To Connect No image or if the image is stuck, or is blank on the To The Dock: 2nd monitor: T h e s t a t u s k e e p s i n If the image on the 2nd monitor is not working properly, “Scanning”.
