E-MOTIVE iS2LX Installation Manual

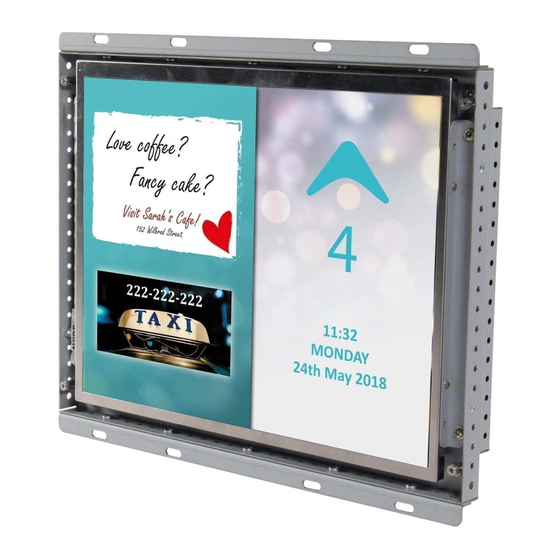

iS2LX Multimedia Display

Installation Guide

03-E-01-IG-01-GB

Items Required for Installation

+ Screen
+ Lens
+ Power Supply
+ Cable*
+ Processer**
+ Processer Power Supply**

Mounting Instructions (Display Panel and Power Supply)

1. Before installation please ensure there is sufficient air space around LCD unit for ventilation
2. Remove from box and unpackage lens and screen panel
3. Carefully remove protective film from both sides of lens
4. Mount the lens by screwing the lens to the panel using four screws (one per corner). These should be counter sunk,
10mm M3 screws
5. Attach the screen with mounted lens to the fixing studs behind COP panel using a flat and spring washer on each stud
before engaging nut
6. Mount speaker if desired
7. Power supply must be mounted within 1.5m but no closer than 1m
8. Plug power socket into display
9. Connect 240V main power to the power supply*
*Please adhere to instructions on power supply

Mounting Instruction (Processor)

1. Mount Processor using mounting holes on the fixed bracket and add a flat and a spring washer before engaging nut
2. Processor's power supply must also be mounted within 1.5m but no closer than 1m
3. Plug power supply into processor
4. Plug cable (HDMI/VGA) into processor and connect to display
5. Power up the system
6. The screen should become active
* Required only if display screen is Open Frame.
** If master and open frame installation then the
additional processor and powe supply will not be
required.
