FLEXEO BP 210 FL 3V

Need help?

Do you have a question about the Flexeo BP 210 FL 3V and is the answer not in the manual?

Questions and answers

Summary of Contents for Soler & Palau Flexeo BP 210 FL 3V

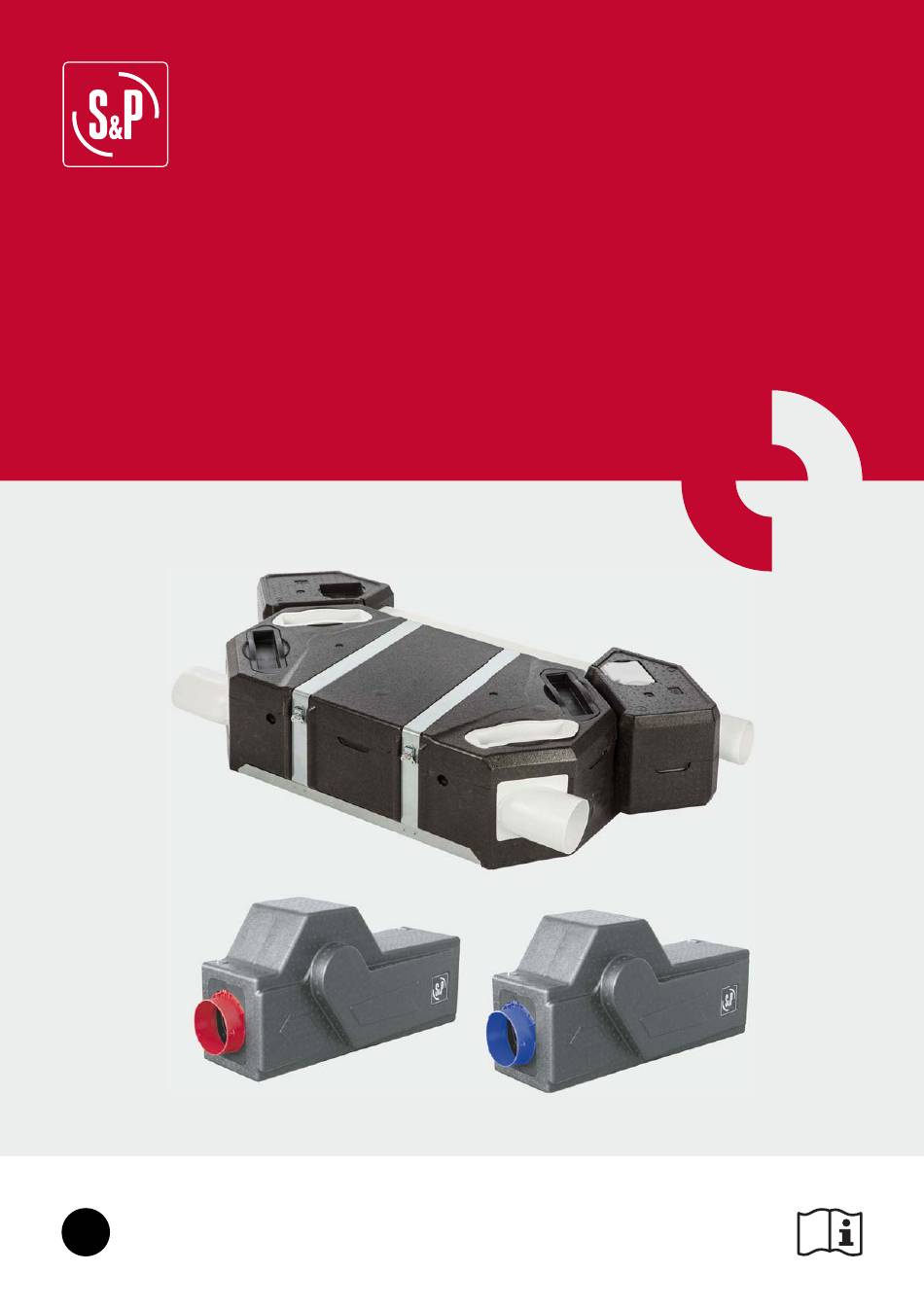

Page 1 FLEXEO BP 210 FL 3V...
Page 2 Summary General information Technical details Installation Commissioning Maintenance The kit contains: 1st Package: 1. Heat exchanger with bypass x 1 2. Heat exchanger support x 1 3. Condensate drain pipes x 2 4. Condensate drain fittings x 2 2nd Package: 1.
Page 3 1- GENERAL INFORMATION 1.1 - Introduction This is an instruction manual for FLEXEO and adjoining parts (mains network, hydrants, regulators, etc.). The manual aims to offer clear instructions and safety advice when preparing, installing and using the system. As our products are constantly evolving, Soler & Palau reserves the right to make changes to the manual without prior notice.
Page 4 2 - TECHNICAL INFORMATION 2.1- General description The FLEXEO system ensures optimal ventilation with maximum energy recovery. The system extracts air from wet rooms (bathrooms, toilets, kitchens and wet rooms) and replaces it with fresh air from outdoors which it supplies to the other rooms (the living room, bedroom(s), study, etc.).
Page 5 Fresh air intake: This connection is to connect to the supply duct of fresh air from outside. Be sure to position the fresh air outlet (on a wall or roof) at a sufficient distance from any areas with air pollution (trees, chimneys, roads, etc.). This duct should be thermally insulated and sealed to prevent condensation forming on the inside or outside of the duct.
Page 6 2.3 - Size and weight: 2.3.a – Heat exchanger + bypass Weight: 13 Kg: 2.3.b – Fans 2.3.c – Wired remote control...
Page 7 3 - COMMISSIONING 3 .1- General requirements: • The instructions include all the possible options for implementation. • Position the FLEXEO system in a heated room. If this is not possible, make sure to insulate the device to stop condensation. •...
Page 8 Use the template printed on the packaging Mounting the fans: 3.3 - The fan bracket offers the option of two mounting heights: 1 - Mounted at the same height as the heat exchanger. 2 - Mounted separately, meaning they can be installed at the lowest possible height. The fans can be mounted together or separately, and the position of the fans can be adapted to your needs without any restrictions in terms of the the heat exchanger.
Page 9 Use the 4 screws to attach the two fans. Attach the bracket, observing the direction of airflow marked on the fan and the arrow on the bracket. Fix the two fans by tightening the 4 outer screws. - 2 - - 3 - - 4 - Mounted separately:...
Page 10 3.4- Installing and connecting the condensate drain: The choice of position for the condensate drain depends on the type of mount (see section 3.5).
Page 11 3.5- Choice of mounting options for the heat exchanger: 3.5.a- Ceiling mounted (Type A): Factory setting mounting TYPE A Second syphon for an air-conditioned building Filtro G4 Filtro F5...
Page 12 3.5.b- Ground mounted (Type B): -10-...
Page 13 3.5.c- Ground mounted (continued): filtro F5 filtro G4 Second syphon for an air-conditioned building...
Page 14 3.5.d- Wall mounted with an external air inlet on the right (Type A): Not for use in air- conditioned houses. filtro G4 filtro F5...
Page 15 3.5.e- Wall mounted with an external air inlet on the left (Type B): Not for use in air- conditioned houses. -10-...
Page 16 3.5.f- Wall mounted with an external air inlet on the left (continued): Not for use in air- conditioned houses. filterG4 filter F5...
Page 17 3.6- Example of a “DIVIDED” mount Kitchen Living room BDO or BOAP BDO or TPM 80 RDBP RDBP Bedroom Exhaust plenum Fresh air plenum Extractor Induction CPR or CT 125 APC 125 PAF 125 APC 125 When using an insulated flexible duct, it is extremely important to stretch it well.
Page 18 3.7- Example of a “SPLIT” mount BDO or BOAP Kitchen BDO or BOAP Living Room BDOP D80 BDOP D80 + RDBP80 RDBP80 Bedroom CPR or CT 125 APC 125 PAF 125 APC 125 Extractor fan Induction fan When using an insulated flexible duct, it is extremely important to stretch it well.
Page 19 3.8- Electrical connections:...
Page 21 4- COMMISSIONING 4.1- During installation: The control panel allows you to adjust the installation settings, and lets you see the different operational settings. Display Up button screen Confirm Down button button FACTORY MENU OPTIONS VALUES SETTINGS English, Francais, Español, Deutsch, Language English Italiano, Nederlands...
Page 22 4.1.a- Adjusting the settings: 1. To connect the control panel, go into the circuit board connector housing and connect the control panel to the RJ45 jack located on the right side of the circuit board. Adjusting the installation settings: Choosing the language: Enter with the key.
Page 23 Connection type: Depending on whether an A or B type mount is used, you must confirm the connection. Use the button and make any changes using the buttons, then confirm with button. Units: You can choose to see the airflow in m3/hour or litres/second. Use the button, then choose the units you want with the buttons, then confirm...
Page 24 Minimum airflow air quality sensor*: Diagram showing the Setting the minimum airflow. air quality sensor (0-10V)* Use the button and choose the minimum airflow with buttons Flow (m then confirm with the button. Qmax. Maximum airflow air quality sensor*: Setting the maximum airflow. Use the button and choose the minimum airflow with buttons...
Page 25 Temperature to turn ON the battery: Allows you to set the temperature that activates the battery preheating. Factory settings = 0ºC Temperature range: -15ºC – +5ºC Use the button, then control the temperature with the buttons, then confirm with the button.
Page 26 3 Consulting the status settings. See status: Allows you to see all the FLEXEO status settings. Enter with the key. To move around, use the buttons. Current flow: Allows you to see the operating flow Defrost: Allows you to see if the FLEXEO is in defrost mode. ON = Defrost activated OFF = Defrost deactivated Battery status:...
Page 27 Extraction temperature sensor: Allows you to see the temperature of the extraction upstream of the heat exchanger. Temperature range: -30ºC – +50ºC. Extracted air temperature sensor: Allows you to see the temperature of the extracted air downstream of the heat exchanger. Temperature range: -30ºC –...
Page 28 4.1.b- Filter alarm timers: It is possible to adjust the alarm filter timers to 6, 9, 12 or 15 months (factory setting 9 months). A dirty filter is linked to environment outside the house (pollution, pollen, etc.) and to the use of the house (dust, kitchen grease, etc.).
Page 29 4.1.c- During use: The remote control allows you to: • change speed, • activate the equipment’s stop • manually override the bypass, • see the filter alarms, • reset the filter alarms. By-pass Reset filters Stop (-) Airflow adjustments (+) Airflow modification (green LED) Pressing on buttons the airflow can vary as follows: Minimum airflow...
Page 30 5 - MAINTENANCE 5.1- Changing the filters: Check, clean or change the filters, where necessary, every 6 months. 5.2- Cleaning/Dismantling the heat exchanger: Check and clean the heat exchanger, where necessary, every 5 years. - 4 - Use a household vacuum cleaner to clean all 4 sides of the heat exchanger.
Page 31 5.3- Cleaning/Dismantling the fans: Check and clean the fans, where necessary, every 5 years. - 1 - - 2 - - 4 - - 3 -...
Page 32 S&P SISTEMAS DE VENTILACIÓN, S.L.U. C. Llevant, 4 Polígono Industrial Llevant 08150 Parets del Vallès Barcelona - España Tel. +34 93 571 93 00 Fax +34 93 571 93 01 www.solerpalau.com Ref. 9023059300...
