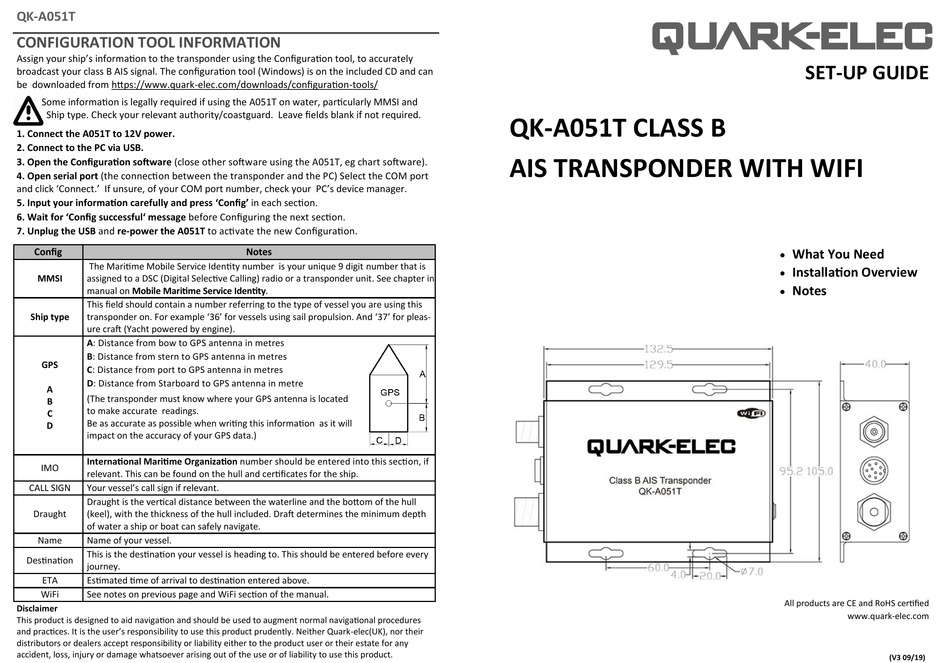

Quark-Elec QK-A051T Setup Manual

QK-A051T
CONFIGURATION TOOL INFORMATION
Assign your ship's information to the transponder using the Configuration tool, to accurately
broadcast your class B AIS signal. The configuration tool (Windows) is on the included CD and can
be downloaded from https://www.quark-elec.com/downloads/configuration-tools/
Some information is legally required if using the A051T on water, particularly MMSI and
Ship type. Check your relevant authority/coastguard. Leave fields blank if not required.
1. Connect the A051T to 12V power.
2. Connect to the PC via USB.
3. Open the Configuration software (close other software using the A051T, eg chart software).
4. Open serial port (the connection between the transponder and the PC) Select the COM port
and click 'Connect.' If unsure, of your COM port number, check your PC's device manager.
5. Input your information carefully and press 'Config' in each section.
6. Wait for 'Config successful' message before Configuring the next section.
7. Unplug the USB and re-power the A051T to activate the new Configuration.
Config
The Maritime Mobile Service Identity number is your unique 9 digit number that is
MMSI assigned to a DSC (Digital Selective Calling) radio or a transponder unit. See chapter in
manual on Mobile Maritime Service Identity.
This field should contain a number referring to the type of vessel you are using this
Ship type transponder on. For example '36' for vessels using sail propulsion. And '37' for pleas-
ure craft (Yacht powered by engine).
A: Distance from bow to GPS antenna in metres
B: Distance from stern to GPS antenna in metres
GPS
C: Distance from port to GPS antenna in metres
D: Distance from Starboard to GPS antenna in metre
A
(The transponder must know where your GPS antenna is located
B
to make accurate readings.
C
Be as accurate as possible when writing this information as it will
D
impact on the accuracy of your GPS data.)
International Maritime Organization number should be entered into this section, if
IMO
relevant. This can be found on the hull and certificates for the ship.
CALL SIGN Your vessel's call sign if relevant.
Draught is the vertical distance between the waterline and the bottom of the hull
Draught (keel), with the thickness of the hull included. Draft determines the minimum depth
of water a ship or boat can safely navigate.
Name Name of your vessel.
This is the destination your vessel is heading to. This should be entered before every
Destination
journey.
ETA Estimated time of arrival to destination entered above.
WiFi See notes on previous page and WiFi section of the manual.
Disclaimer
This product is designed to aid navigation and should be used to augment normal navigational procedures
and practices. It is the user's responsibility to use this product prudently. Neither Quark-elec(UK), nor their
distributors or dealers accept responsibility or liability either to the product user or their estate for any
accident, loss, injury or damage whatsoever arising out of the use or of liability to use this product.

Notes

QK-A051T CLASS B
AIS TRANSPONDER WITH WIFI
SET-UP GUIDE

