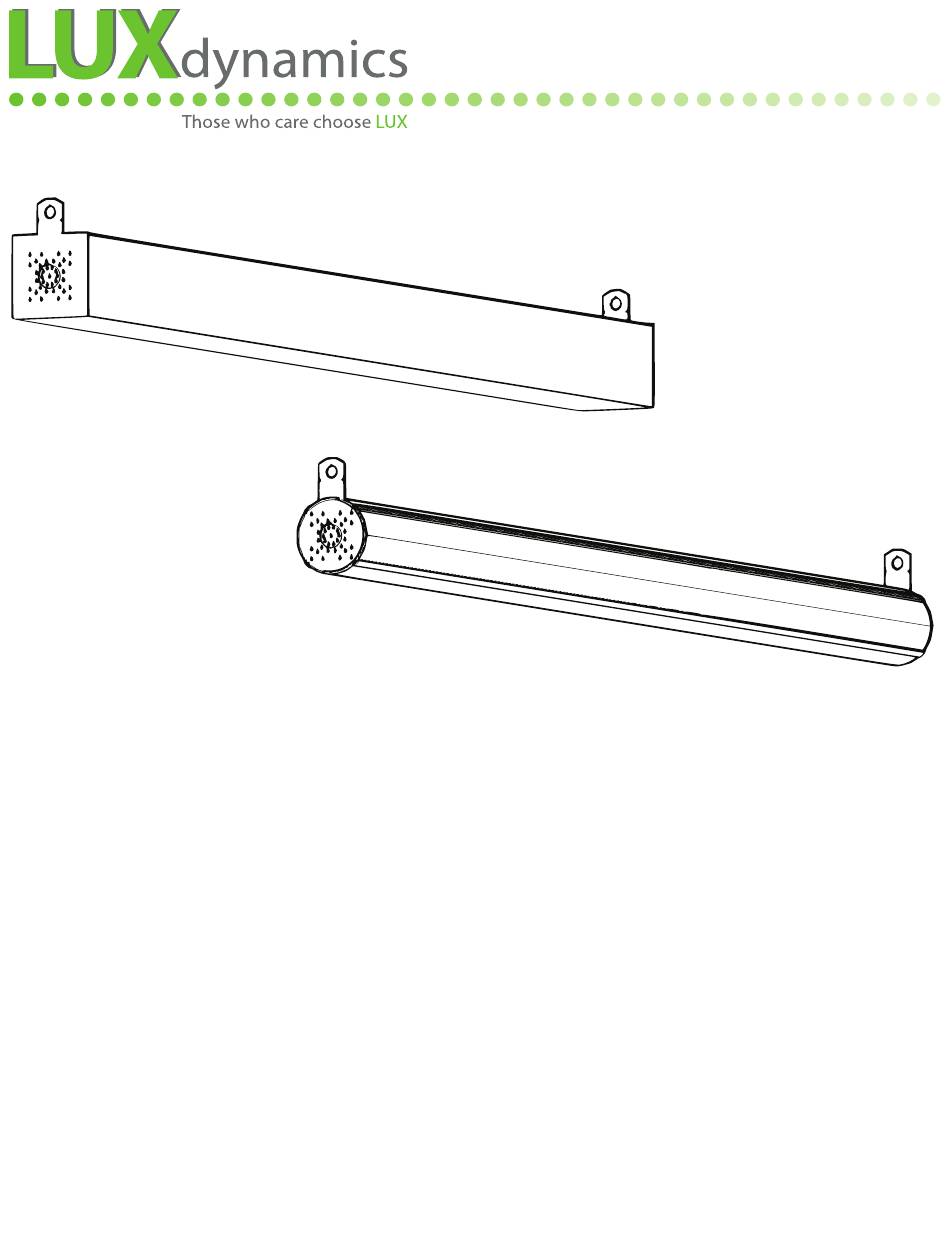

LUX dynamics LED-360 Series Installation Instructions

Hide thumbs

IMPORTANT SAFEGUARDS

When using electrical equipment, the following safety precautions should always be taken:

READ AND FOLLOW ALL SAFETY INSTRUCTIONS

To avoid the possibility of electrical shock, turn off power supply before

installation or servicing.

Product must be installed in accordance with NEC and your local

electrical code. If you are not familiar with these codes and

requirements, consult a qualified electrician.

Ensure the mounting surface is capable of supporting the weight of the

luminaire before installation.

Due to the weight of the luminaire, as many as 3 people may be necessary

during TANDEM installation.

SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE

Installation Instructions

LED-360° Series

04 May 2017

Table of Contents

Need help?

Do you have a question about the LED-360 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for LUX dynamics LED-360 Series

Page 1 LED-360° Series Installation Instructions IMPORTANT SAFEGUARDS When using electrical equipment, the following safety precautions should always be taken: READ AND FOLLOW ALL SAFETY INSTRUCTIONS To avoid the possibility of electrical shock, turn off power supply before installation or servicing. Product must be installed in accordance with NEC and your local electrical code.
Page 2 To Install Aircraft Cable Mounting for use with options: CS10’360° Thread the unfinished end of the aircraft Pass the unfinished end of the aircraft cable through one end of AC cable cable around the mounting point. friction lock Snap hook through the hanging braket Thread end of cable through other on the end of each fixture. mouth of AC cable friction lock. Ensure the fixture is hanging level before proceeding.
Page 3 To Install Surface Mounting for use with options: Fasten the fixture directly to the Ensure the fixture is firmly mounted, mounting surface using the endcap will all hardware flush to the mounting brackets surface...
Page 4 To Install Tandem Mounting for use with options: Near-Seamless Runs Tandem installations will have luminaire After connecting all luminaire wiring segments with Tandem Mounting between segments, align the teeth of Brackets. These brackets allow for th- one luminaire segment with the ru-wiring and and fixture mating.
Page 5 Electrical Connections Make the following Electrical Connections: Connect the green or green/yellow ground lead to the green wire position of the terminal block. Connect the black fixture lead to the voltage supply position or Hot 1 (for 208/240V wiring). b1. If applicable, connect the Red fixture lead to the voltage supply position or Hot 2 (for multiple-switch installations). Connect the white fixture lead to the neutral supply position or Hot 2 (for 208/240V wiring). Connect the purple/blue dimming positive lead to the supply dimming positive lead.
