Summary of Contents for ETS 5532

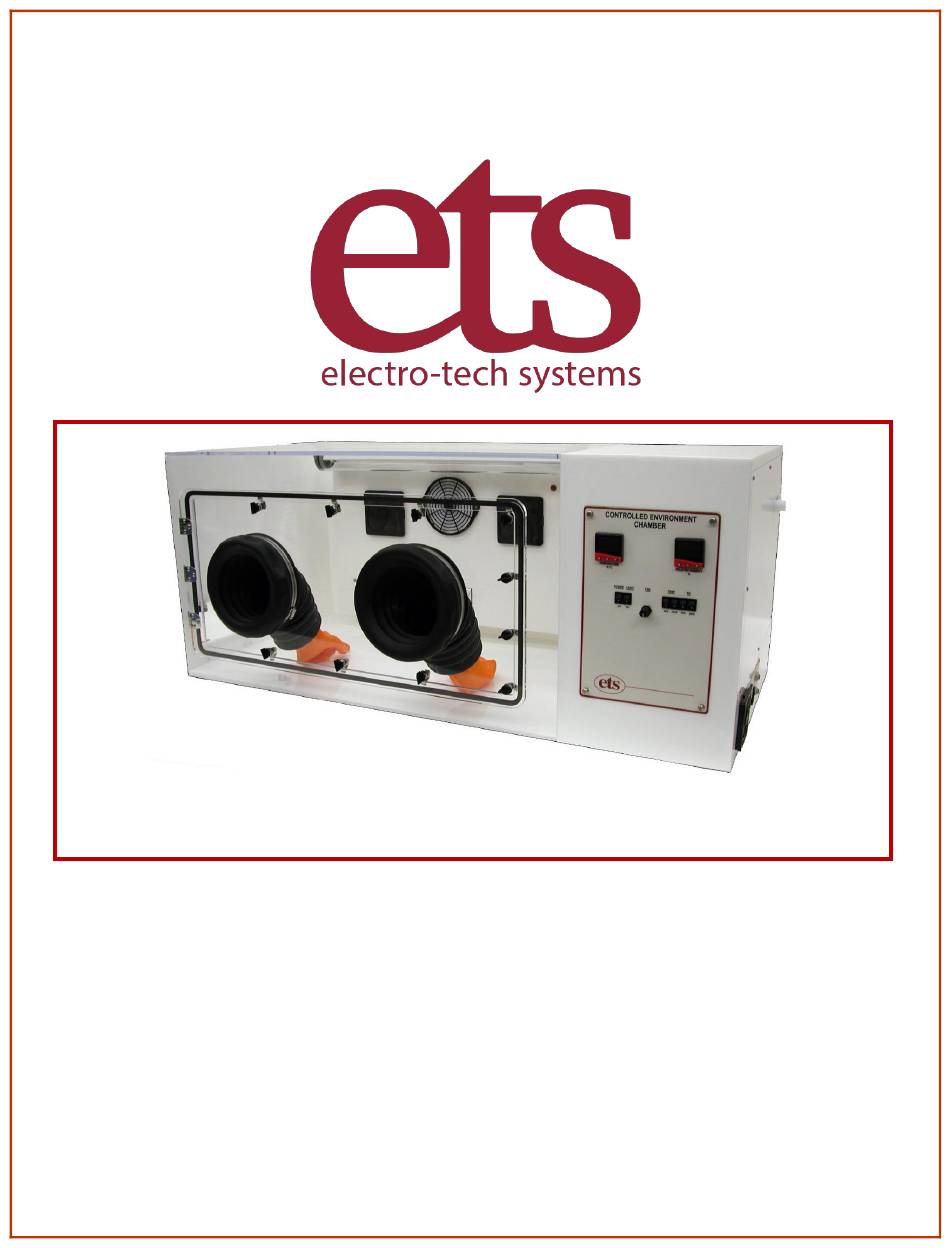

- Page 1 ETS 5532/5533 Environmental Chamber Family Start-up Manual Document D01042 Revision B D01042B – 2019-11-12...
-
Page 2: Table Of Contents
For more details and step-by-step instructions, consult the 5532/5533 Operating Manual D01011. This manual covers the ETS 5532 chamber and the ETS 5533 chamber. Operating systems and set-up are identical for these two chambers. The essential difference is the depth of the environmental chamber – 6” larger in the case of 5533. -
Page 3: Important Safety Information
DO NOT USE IN ANY MANNER NOT SPECIFIED OR APPROVED BY THE MANUFACTURER: Unapproved use may result in damage to the equipment or present an electrical shock or fire hazard. D01042 Revision B - ETS 5532-5533 Startup - Page 3 of 15... -
Page 4: Description Of System Components
If requested, Gloves attach to removable ports. Ready to exchange with Pair of Glove Ports Iris ports. Pair of Glove hands If requested, Extra pair of glove hands for replacement. D01042 Revision B - ETS 5532-5533 Startup - Page 4 of 15... -
Page 5: Set-Up Guide
Take pictures of any abnormalities observed. Save all cartons until it is certain that they will no longer be needed. If the Chamber has to be returned to ETS for any reason, the original packaging must be used. - Page 6 Step 3 – Connect main power 1. Plug in the AC cable to the chamber. 2. Plug in the to an electrical outlet. Note: Using 10A 120VAC 60Hz service. D01042 Revision B - ETS 5532-5533 Startup - Page 6 of 15...
-
Page 7: Quick Start Guide
Flip ONLY the operating system needed to the ON position (I = on): Heating: TEMP INCR ON Cooling: TEMP INCR & DECR ON Humid.: RH INCR ON Dehumid.: RH DECR ON D01042 Revision B - ETS 5532-5533 Startup - Page 7 of 15... -
Page 8: Functional Description
All systems are accessible via the removable white acrylic panel on the right side of the Chamber. Controllers and operating systems that are available with the Model 5532/5533 are as follows: 1. Microprocessor Temperature Controller (multi ramp/soak, set point display; Std.) 2. - Page 9 NOTE: The entire humidity range cannot be obtained at all temperatures due primarily to dew point considerations as shown below. Achievable RH % Figure 5-1: Model 5532 Dew point performance chart D01042 Revision B - ETS 5532-5533 Startup - Page 9 of 15...
- Page 10 Operating Systems: Heating The Model 5532/5533 Chamber contains two (2), 250 Watt Electric Heaters (500 Watts total). The Heater is an integral part of the Chamber, located inside the chamber workspace. Since the Heater is already installed, there is no additional set-up required.
- Page 11 The Dehumidification System is closed loop designed to reduce the relative humidity in the Model 5532/5533 Chamber to less than 10%. When paired with the Microprocessor Humidity Controller, the humidity inside the chamber can be controlled, without disturbance, to within +/- 0.2% RH of the set point at the sensor.
-
Page 12: Calibration / Maintenance / Troubleshooting
They should be within the combined tolerance of the two measuring devices. To return equipment to ETS for calibration or repair it is first necessary to obtain a RMA number. Call 215-887-2196. To remove the Control Panel and sensor, first turn off and unplug the chamber, then gain access to the operating systems compartment by removing the 8 screws holding the right side panel in place. - Page 13 Does the light on the heater panel illuminate when the temperature microprocessor green indicator light illuminates? Insufficient Cooling Review controller setup and connections. Is the lab ambient temperature higher than expected? Is there a heat load inside the chamber? D01042 Revision B - ETS 5532-5533 Startup - Page 13 of 15...
- Page 14 Is there 2’ of clearance behind the chamber with good air flow? Excessive noise / vibration Check for sources such as an item contacting fan blades. If the problem persists, contact ETS for support. D01042 Revision B - ETS 5532-5533 Startup - Page 14 of 15...
-
Page 15: Warranty
(such as gloves, iris ports and desiccants), sixty (60) days from date of shipment and (ii) for all standard equipment and otherwise nonrenewable items, one year from date of shipment. D01042 Revision B - ETS 5532-5533 Startup - Page 15 of 15...
