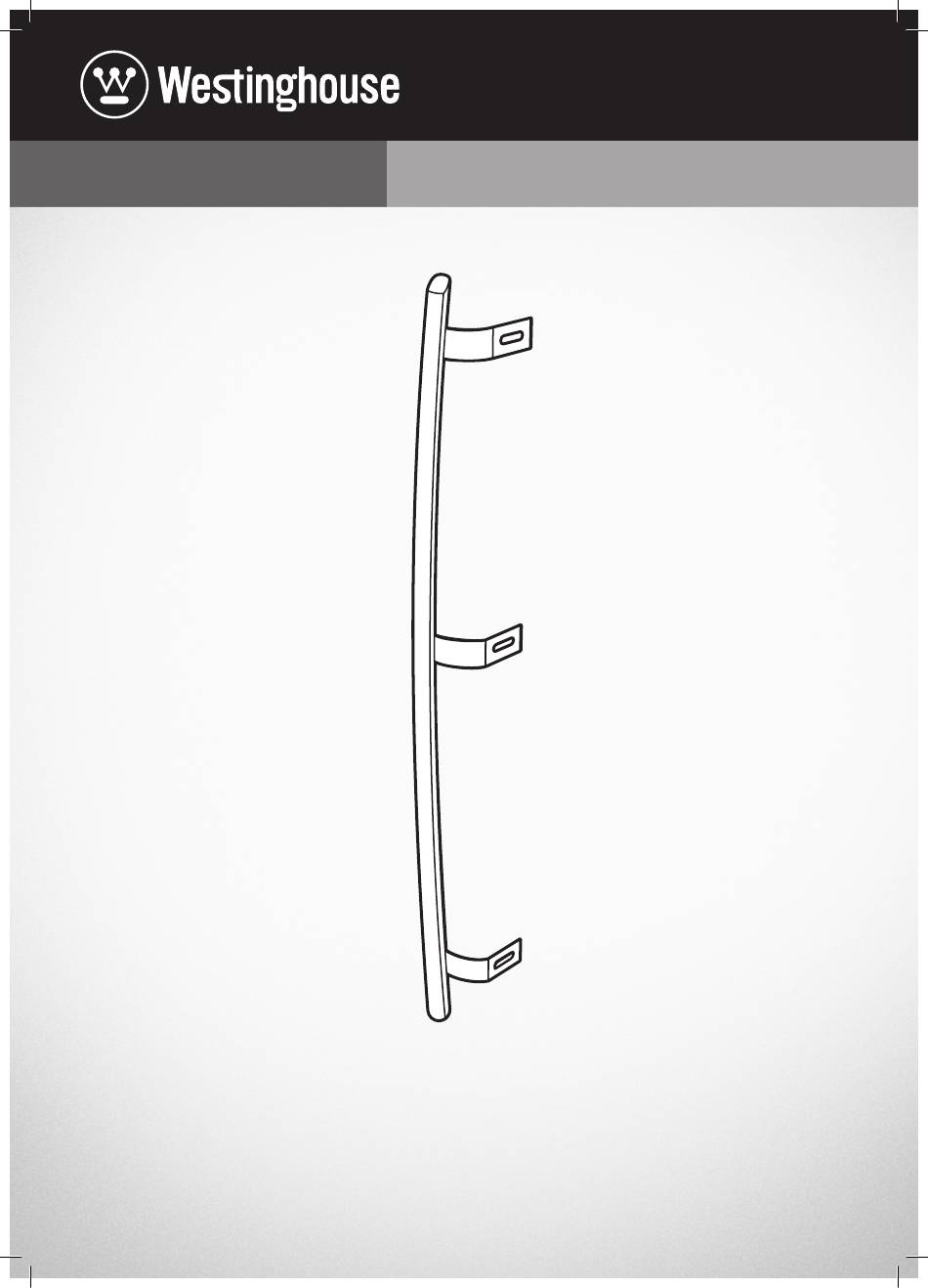

- Page 1 USER MANUAL INSTRUCTIONS HANDLE INSTALLATION WRB5004S, WRB5004W, WFB4204S, WFB4204W...
-
Page 2: General Warnings
GENERAL WARNINGS LOCATE HANDLE BAR AND HANDLE KIT Please read the user manual carefully and store in a handy place for later reference. Pass the user manual on to • The bar handle is securely packed in the rear left possible new owners of the appliance. -
Page 3: Kit Contents
KIT CONTENTS Read and follow instructions carefully when installing Handle bracket (A) x1 the handles on this appliance, you may not be eligible to make a claim under warranty for damage caused by incorrect installation techniques. Please refer to warranty card in the product user manual for further warranty information. -
Page 4: Installation
INSTALLATION NOTE: To change your appliance door opening from left hand to right hand or vica versa you will need to purchase a door reversal kit part number A05807201. Please contact 131350 or http://shop.electrolux.com.au Bar handle assembly • Using a suitable work space, place handle bar with screw holes facing up on a soft surface to prevent damage to handle. - Page 5 • Identify the correct side of the door to fit handle (opposite hinge). • Align screw holes on handle with holes in door. • Using Allen key attach handle assembly to the door with M4 screws provided. Fit one screw finger tight to middle bracket ‘B’. Fit one screw finger tight to top and bottom brackets ‘A’...
- Page 6 INSTALLATION (CONTINUED) • Select plugs of correct colour to match your refrigerator. • Push plugs into screw holes on hinge side of door. Your handle installation is now complete. INSTALLATION...
- Page 7 NOTES...
- Page 8 ELECTROLUX (NZ) Limited electrolux.co.nz (New Zealand only) (New Zealand only) and WESTINGHOUSE are trademarks of Westinghouse Electric Corporation. Used under license by Electrolux Home Products Pty Ltd. All Rights Reserved. © 2019 Electrolux Home Products Pty Ltd. Part Number: A05761801...
