BRUEL
&
KJA:R
Nc:erUlj'l - Denmark

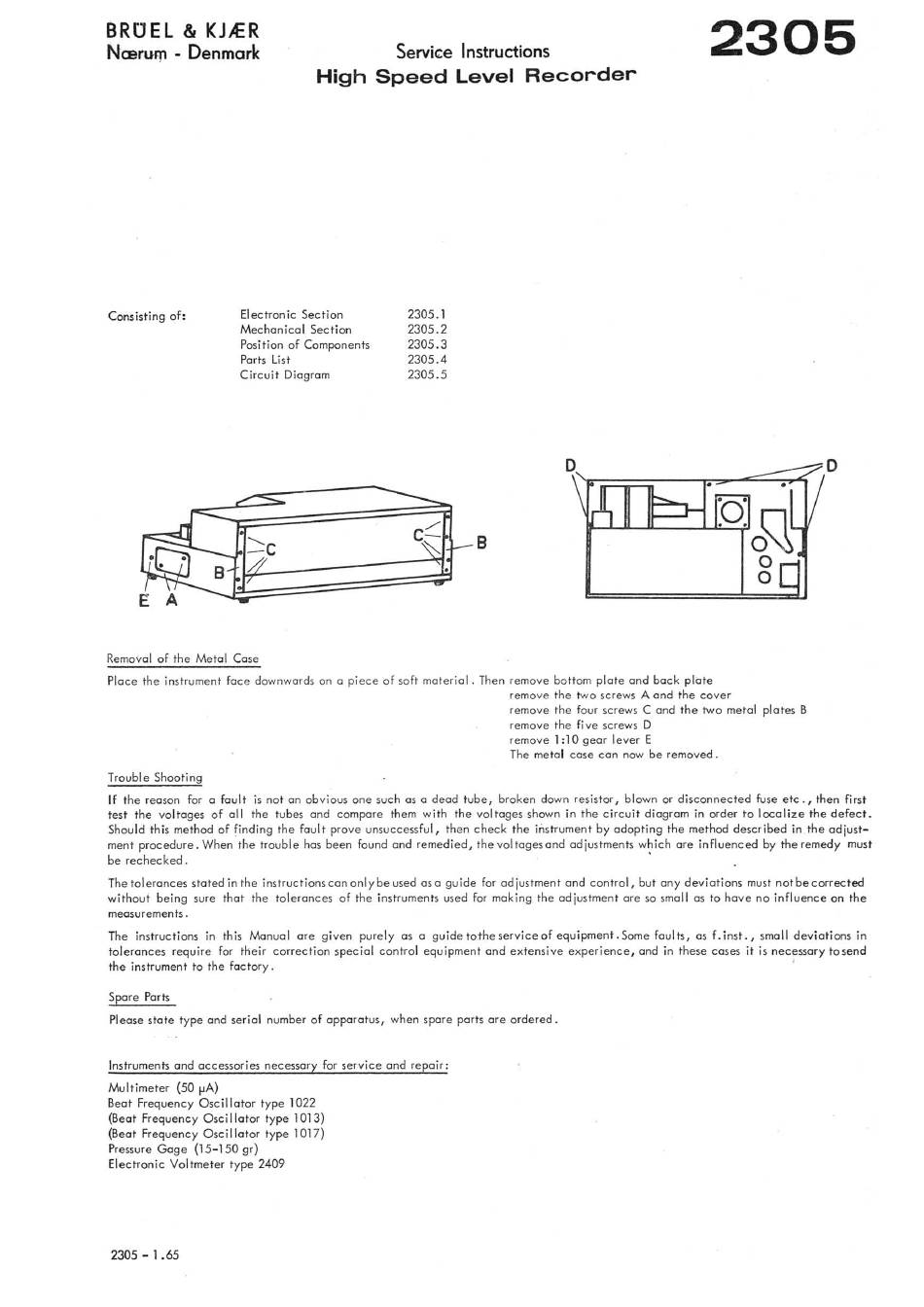

Service Instructions
2305

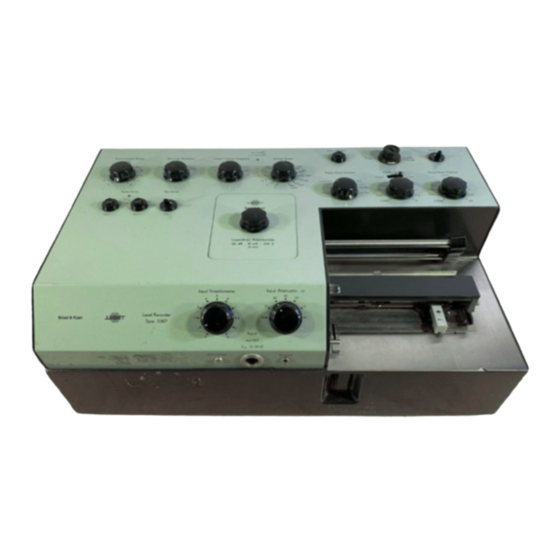

High Speed Level Recorder
Cons isting
of:
Electronic
Section
Mechanica
l
Sect ion
Position
of Components
Parts list
Circuit
Diagram
Removal of the Metal
Case
2305.1
2305.2
2305.3
2305.4
2305.5
Place the instrument
foce downwards on a piece of
50ft
material.
Then
remove bottom
plate and back plate
remove the
MO
screws A and the cover
Troub
le
Shooting
remove the four
screws
C and
the
two metal
plates B
remove
the
fi
ve screws D
remove
1 :10
geor
lever
E
The meta
l
case con
now
be removed.
o
If th
e
reason for a fault is not on
obvious one such
as
0
dead tube,
broken
down resistor
I
blown or disconnected
fuse
etc., then
first
test the voltages
of
all the tubes and compare
them
with
the
vo ltages shown
in the
circuit
diagram in
order
to loca
lize
the defec
t.
Shou
ld this method of finding the
fa
u
lt
prove unsuccessful
t
then check the
instrument
by adopting
the method
described
in the ad
just-
ment procedure. When the trouble has been found and remedied, thevoltagesand adjustments wh ich are
influenced by the remedy
mus
t
be rechecked.
•
The tolerances
stated
in th
e
instructions can only be used as a
guide
for
adjustment
and control, but any deviations must
not
be
corrected
w
ithout
being sure
that
the
to lerances of
the instruments used for making the adjustment ore sa small as
to
have
no influence on the
measurements.
The instructions in this Manual
are given purely as a guide
tothe service of
equipment.
Some faults, as
f. inst., small deviations in
tolerances
require
for
thei
r
correct ion special control equipment and
extensive
experience, and
in
these cases
it is necessary to send
the
instrument
to
the factory.
'
Spare Ports
Pl
ease state
type
and serial
number of apparatus, when spare parts are ordered.
Instruments and accessories necessary
for service
and
repair:
Mu
lt
imeter (50 I-IA)
Beat Frequency Oscil lator type
1022
(Beat Frequency Oscillator
type 1013)
(Beat Frequency Osc
i
Ilator
type
1017)
Pressure Gage
(15-1
50
gr)
Electron
ic Voltmeter
type 2409
2305 -1
.65
