Summary of Contents for VSDIGITAL V31

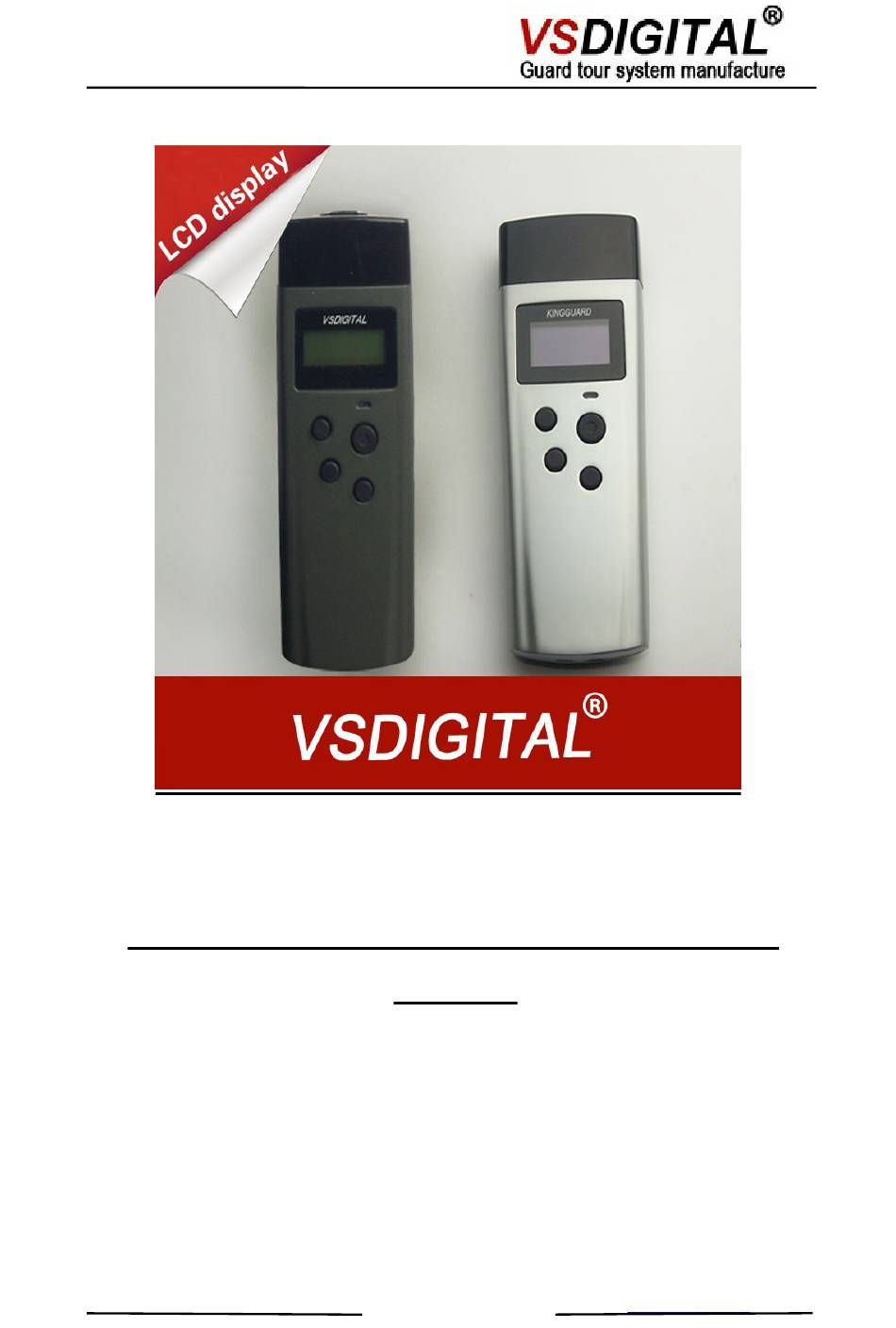

- Page 1 V31 USER MANUAL Shenyang VS DIGITAL Technology Development CO.,LTD Website ： www.vsdigital.com Tel:+86-24-24500650 Website: www.vsdigital.com...
-
Page 2: Table Of Contents
System composition Part one Hardware..................3 1.1 One Set includes................3 1.2 V31 Operation................3 1.3 V31 Setting in Software.............. 4 1.4 Read Tags and checkpoint tag installation ......5 1.5 Entry Checkpoint Tag in Software ...........7 1.6 Download Patrol Data ............... 9 1.7How to Charge................10 Part Two FAQ.................. -
Page 3: Part One Hardware
Part one Hardware 1.1 The whole set 1.2 V31 Operation Power/ok back down The operation of V31is very simple, you just need to press the power/ok button to start and it can read the checkpoint tags immediately. Tel:+86-24-24500650 Website: www.vsdigital.com... -
Page 4: V31 Setting In Software
Run your management software and move your cursor to reader, you will see the picture below You can choose the one you are using here by clicking it. Clicking V31, you will see the picture below Click here, it will generate the parameter of your using reader The setting order of “1”... -
Page 5: Read Tags And Checkpoint Tag Installation
Please refer to the software user manual. 1.4 Read Tags and checkpoint tag installation KingGuard-V31 with the USB port is the read head, click “power/ok” button, read the tags from 3- 5cm. the V32 vibrates and blue light is flashing. Show as the following picture.. - Page 6 ▲ Patrolman Tag Attention: Please scan the patrolman tag before patrolmen making their rounds or the patrolman tag will not work. Tel:+86-24-24500650 Website: www.vsdigital.com...
-
Page 7: Entry Checkpoint Tag In Software
, you can set one new site or several sites by filling the blank with user information. 2.Click the “Update”, the information above will generate records automatically as the arrow “3” shows. 1. Transmit with USB cable-you need to move your cursor to the “Download” Tel:+86-24-24500650 Website: www.vsdigital.com... - Page 8 1.You need to choose the site that you want to input the tag data. 2.You can choose all the un-registered tags with a “√” 3.Click “ ” to add the below un-registered tags to be registered tags, show as following picture. Tel:+86-24-24500650 Website: www.vsdigital.com...
-
Page 9: Download Patrol Data
<picture 1> Patrol Data Transmission Connect the USB cable well with the V31 guard tour system,show as <picture 1>. Run the software and choose the guard tour system model (V32). Scan the communication port. The V31 guard tour system will show as picture 11. This means the USB cable connects successfully. -
Page 10: How To Charge
2.2 Can not transmit the patrol data 1.Whether the USB cable is connected With the computer correctly; 2.Whether click the “power/ok” button on the guard tour system; 3. whether choose the right guard tour system model in the software. Tel:+86-24-24500650 Website: www.vsdigital.com...
