VADDIO Quick-Connect 4 Manual

Camera and Electronic Products for Integrators
Quick-Connect™ 4
Video, Power and Control Wiring Center

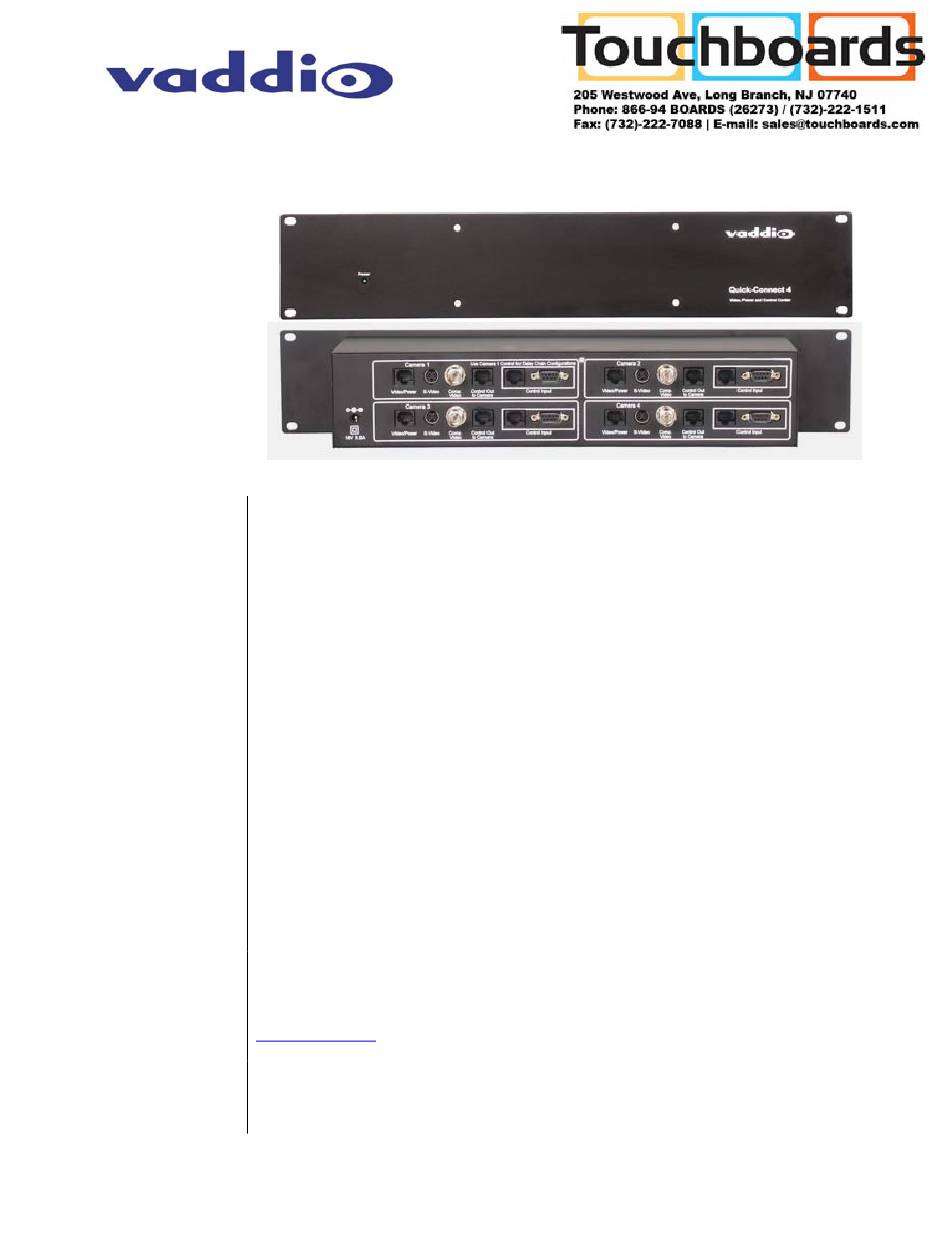

Figure 1:
Vaddio Quick-Connect 4
Video, Power and Control
Wiring Center
Front Panel (above) and
Back Panel (below) shown
The Vaddio™ Quick-Connect 4, Video, Power and Control Wiring Center (Figure 1)
INTRODUCTION
simplifies Operator and Presenter camera systems using the Vaddio EZCamera™
Cabling standard. The Quick-Connect 4 can accommodate up to four separate
Vaddio PTZ cameras, combining and consolidating four Vaddio Quick-Connect
Boxes, four PowerRite™ power supplies and four EZCamera Control Adapters used
with the EZCamera cable system.
Each camera port has an individual 18VDC supply to power a single PTZ camera.
Power is provided to the camera and S-Video and Composite video are both
returned to the Quick-Connect 4 on the same single Cat. 5 cable for Power/Video.
Individual control ports are supplied for camera control systems like the
ProductionVIEW™ and camera control daisy chaining is accommodated through the
first camera control port as well.
Control inputs are either DB-9 or RJ-45 and control outputs are RJ-45, which
connect easily with all Vaddio WallVIEW™, CeilingVIEW™, EZCamera and
HideAway series cameras.
Before operating the Vaddio Quick-Connect 4, please read the entire manual
INTENDED USE
thoroughly. The wiring system was designed, built and tested for use indoors.
Outdoor operation is not recommended, has not been tested and could damage the
unit and/or create a potentially unsafe operating condition. Use only the Vaddio
provided power supply.
The information contained in this manual will help you install and operate your
SAVE THESE
Vaddio Quick-Connect 4. For reference, Vaddio keeps copies of Specifications,
INSTRUCTIONS
Installation and User Guides and most pertinent product drawings for the Vaddio
product line on the website.
www.vaddio.com
Read and understand all instructions before using. Do not operate the device if it
IMPORTANT
has been dropped or damaged. In this case, a Vaddio technician must examine the
SAFEGUARDS
product before operating. To reduce the risk of electric shock, do not immerse in
water or other liquids and avoid extremely humid conditions.
free of charge.
Vaddio Quick-Connect 4 - Document 341-256-1 Rev C
Installation and User Guide
These documents can be downloaded from
