wAP LoRa8 kit
The wAP is a small weatherproof device with integrated LoRa8 card for UDP packet forwarding to chosen server.
Quickstart
Please follow these quick steps to set up your device:
Open the bottom lid (see
•
Connect an external antenna to the SMA connector (see
•
Connect the device to the power source (see "Powering").
•
Open network connections on your PC, mobile phone or other device and search for MikroTik wireless
•
network and connect to it.
The Configuration has to be done through the wireless network using a web browser or mobile app - (see
•
"MikroTik mobile
Ethernet port access is blocked by a firewall.
Once connected to the wireless network, open http://192.168.88.1 in your web browser to start
•
configuration, user name: admin and there is no password by default.
When using mobile application choose Quick setup and it will guide you through all necessary configuration
•
in six easy steps.
Find your LoRa Gateway ID on the label within the product and register it in your Network Server.
•
To make the device connect to the LoRa Network Server, please see "Configuration".
•
We recommend clicking the "Check for updates" button and updating your RouterOS software to the latest
•
version to ensure the best performance and stability.
Choose your country, to apply country regulation settings and set up your password in the screen that
•
loads.
Expansion slots and ports

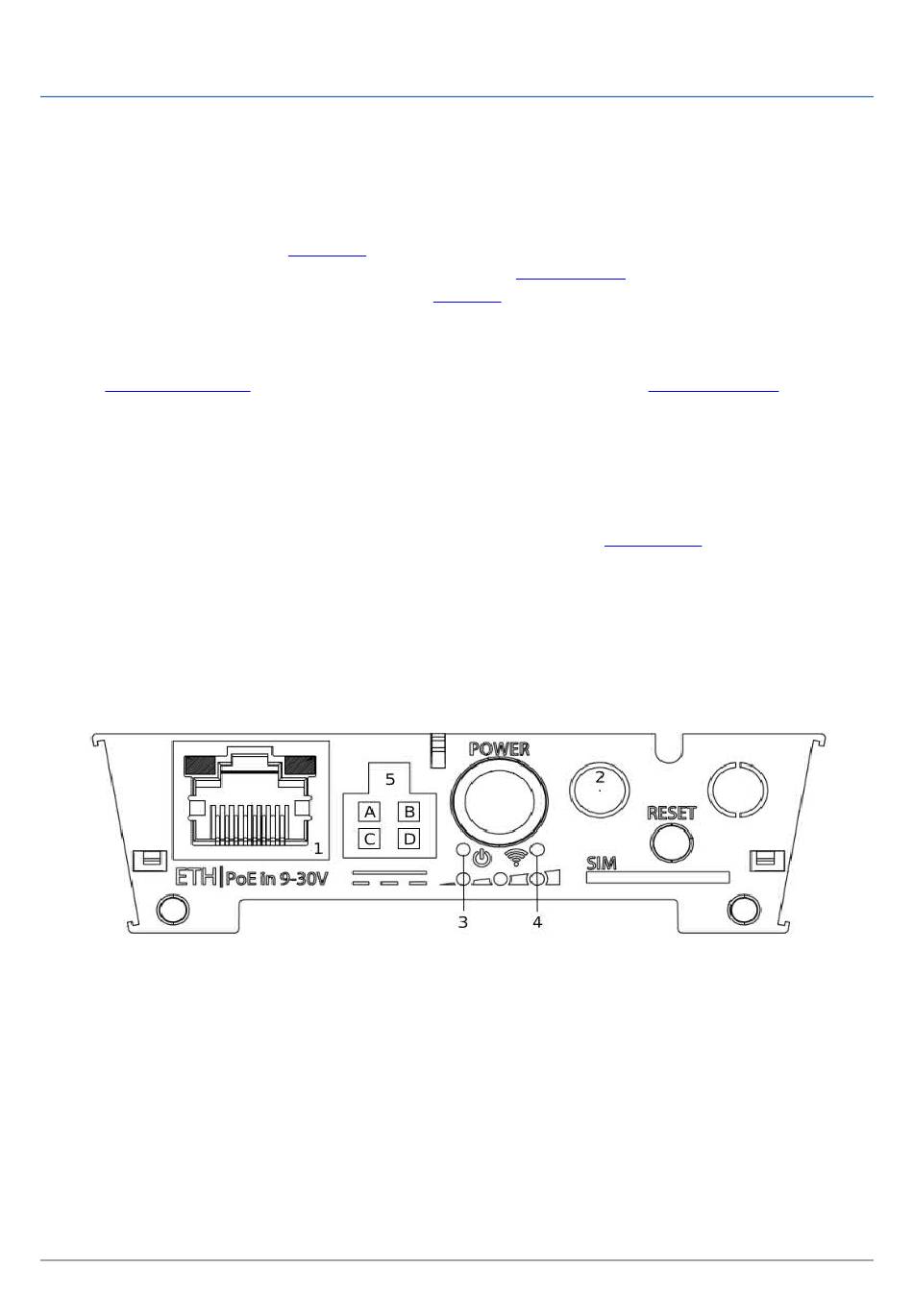

1. 10/100 Ethernet port, supporting automatic cross/straight cable correction (Auto MDI/X). Either straight or
crossover cable can be used for connecting to other network devices.
2. External SMA antenna connector already connected to the LoRa card.
3. LED indicating a power state of the device.
4. LED Indicating the activity of Wireless network.
5. Automotive connector. Pinout: A - reserved for future use (orange), B - reserved for future use (blue),
C - ground (black), D – power in (red).
MiniPCIe slot with integrated LoRa8 card.
•
Integrated Wireless module operating at 2.4 GHz, 802.11b/g/n protocol.
•
SIM Slot.
•
See mikrotik.com/products for the latest version of this document.
"Bottom
Lid").
app"). Alternatively, you can use WinBox configuration tool http://mt.lv/winbox. By default,
"Antenna
usage").
Page 1, Document #51335 Modified on: 12.SEP.2019
Advertisement
Table of Contents
Summary of Contents for MikroTik wAP LoRa8
- Page 1 • Connect the device to the power source (see “Powering”). • Open network connections on your PC, mobile phone or other device and search for MikroTik wireless • network and connect to it. The Configuration has to be done through the wireless network using a web browser or mobile app - (see •...
- Page 2 3. Connect the power cord to the adapter, and then plug the power cord into a power outlet. Mounting The device can be mounted in several ways: pole, wall, ceiling or it can be placed in specially designed Mikrotik holder which comes with the package. The package also includes a drill hole template with detailed mounting instructions, to help you with the Ethernet cable installation and attachment to a ceiling or a wall.
- Page 3 Ethernet port. 5. Mount the device on the steel bracket. 6. Secure it in place with the screw. 7. Close bottom latch. See mikrotik.com/products for the latest version of this document. Page 3, Document #51335 Modified on: 12.SEP.2019...
- Page 4 2. Use Torx T20 screwdriver to unscrew it, but do not remove the screw completely. 3. Pull the cover to the opposite direction from the device to remove it. 4. Reassemble in back order. See mikrotik.com/products for the latest version of this document. Page 4, Document #51335 Modified on: 12.SEP.2019...
- Page 5 Buttons and Jumpers. MikroTik mobile app Use the MikroTik smartphone app to configure your router in the field, or to apply the most basic initial settings for your MikroTik home access point. 1. Scan QR code and choose your preferred OS.
-
Page 6: Antenna Usage
Disassemble upper case from the bottom by sliding them to opposite sides. • Locate internal antenna cable and replace with SMA cable connector on the LoRa card. • Reassembly. • See mikrotik.com/products for the latest version of this document. Page 6, Document #51335 Modified on: 12.SEP.2019... -
Page 7: Buttons And Jumpers
The device supports RouterOS software version 6.44.5. The specific factory-installed version number is indicated in the RouterOS menu /system resource. Other operating systems have not been tested. See mikrotik.com/products for the latest version of this document. Page 7, Document #51335 Modified on: 12.SEP.2019... -
