YLI YK-668 Quick Manual

Access Control Keypad with Waterproof

INTRODUCTION

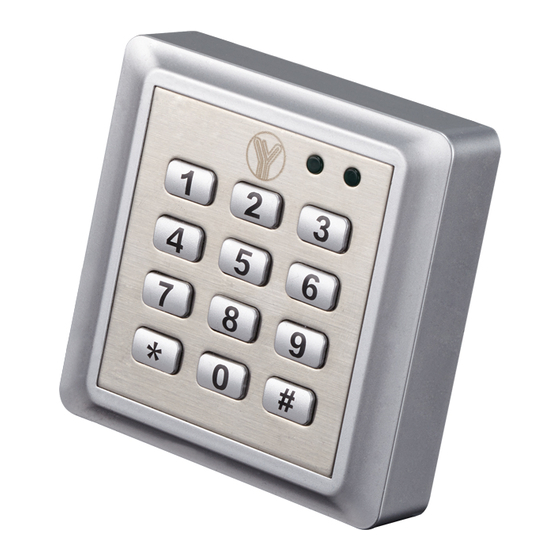

YK-668 is the newest keypad for single door,there are 4 operation mode .Keyboard of YK-668
is made by mobile technology, with blue backlit and color never fade .Program of YK-668 is
produced by the newest MCU.

FEATURE

2000 pcs IC Card Capacity
Read Card and Register Card Continuously, Submit Card No. and Card Code Automatically
Read Card to Open and Close
Door Opening Signal Output by Relay Directly(NO/NC optional)
Operation Mode: Card, Code, Card or Code, Card +Code

SPECIFICATION

Size:
Operating Voltage:
Operating Current:
Capacity of Recording:
SOUND & LED INDICATION
EXPLANATION
Work State
Program Mode
Under Program Mode
Read Unregistered Card
Read Registered Card
Card or Code(Operation Mode)
Card +Code(Operation Mode)
Code(Operation Mode)
Press Keyboard
Setting Success
Setting Failure
Invalid Enter
Alarm
www.yli.cn
Model:YK-668
86x86x20(mm)
12V 10%
<0.1A
2000 ID Cards and
1 Group Code
RED LED
ON
ON
Red LED and Green LED
twinkle alternately
Twinkle 1 time
per 0.5 secretary
Twinkle 1 time
per 1 secretary
Operating Temperature: -10 50
Operating Humidity:
Card Reading Distance: 5-15cm
Weight:
GREEN LED
Twinkle
ON
DI(Long)
DI DI(Short)
ON
DI(Short)
DI DI(Short)
DI(Long)
DI(Long)
DI DI DI...(repeatedly)
We create security
R
EMC
tested
Germany
20%80%
0.15kg
BUZZER
P 1
