Build Your Own Clone

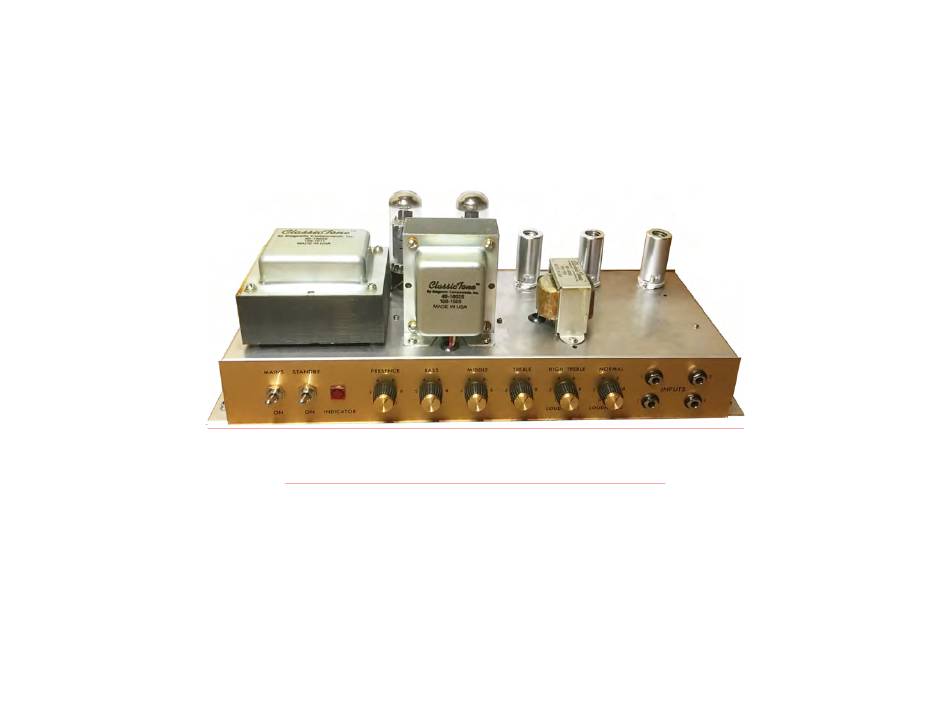

Classic Brit 50
Kit Instructions
(Revision 1.0)
WARNING!!! HIGH VOLTAGE!!!!
Tube amplifiers contain high voltage that can cause injury and even death. Please use extreme caution and common sense when
building this kit. Do not attempt to do anything to your amp while it is plugged in other than take voltage readings as necessary or
actually playing an instrument through it as it was intended.
Don't just turn the power off!!! Always unplug the power cord from the socket before working on your amp!!! The mains supply can
still electrocute you AND the power filter capacitors can still retain a charge powerful enough to kill you. Always unplug the power
cord from the socket before working on your amp.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Classic Brit 50 and is the answer not in the manual?

Questions and answers

Related Manuals for BYOC Classic Brit 50

Summary of Contents for BYOC Classic Brit 50

  • Page 1 Build Your Own Clone Classic Brit 50 Kit Instructions (Revision 1.0) WARNING!!! HIGH VOLTAGE!!!! Tube amplifiers contain high voltage that can cause injury and even death. Please use extreme caution and common sense when building this kit. Do not attempt to do anything to your amp while it is plugged in other than take voltage readings as necessary or actually playing an instrument through it as it was intended.
  • Page 2 DISCLAIMER Build at your own risk!!! BYOC, Inc. is not liable or responsible for any damages, injuries, or deaths that may incur from or while building this kit. It is your own responsibility to follow proper safety precautions. Never attempt to build, modify, repair, or perform any sort of maintenance on your amplifier while the power cord is plugged into an AC power source.
  • Page 3 That being said, we will do our best to help you as much as we can. Our philosophy at BYOC is that we will help you only as much as you are willing to help yourself. We have a wonderful and friendly DIY discussion forum with an entire section devoted to the technical support and modifications of BYOC kits.
