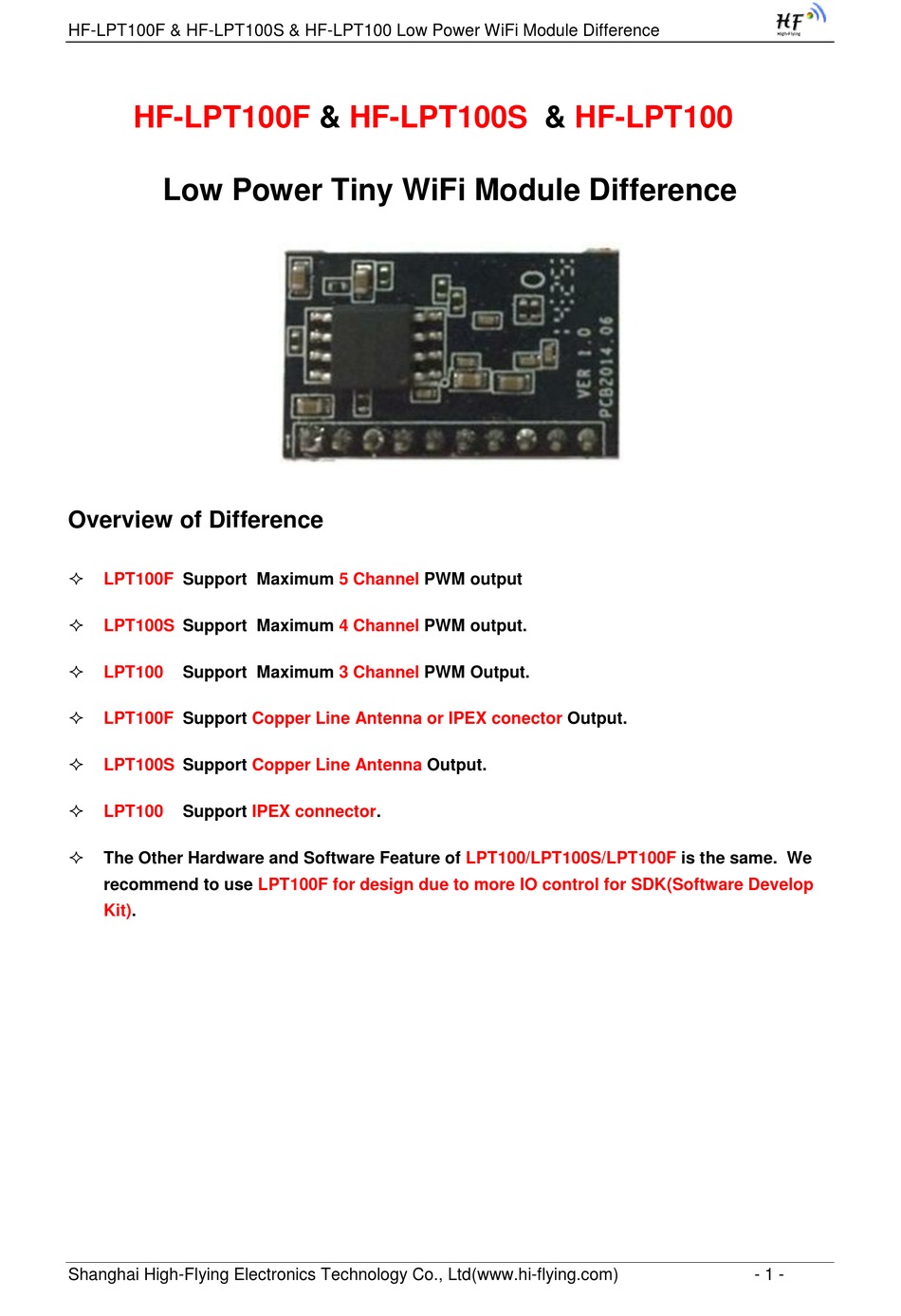

HF-LPT100F & HF-LPT100S & HF-LPT100 Low Power WiFi Module Difference
HF-LPT100F
Low Power Tiny WiFi Module Difference
Overview of Difference
LPT100F
Support Maximum
LPT100S
Support Maximum
LPT100
Support Maximum
LPT100F
Support
LPT100S
Support
LPT100
Support
The Other Hardware and Software Feature of
recommend to use
Kit).
Shanghai High-Flying Electronics Technology Co., Ltd(www.hi-flying.com)
&
HF-LPT100S
5 Channel
4 Channel
3 Channel
Copper Line Antenna or IPEX conector
Copper Line Antenna
IPEX
connector.
LPT100F for design due to more IO control for SDK(Software Develop
&
HF-LPT100
PWM output
PWM output.
PWM Output.
Output.
Output.
LPT100/LPT100S/LPT100F
is the same. We
- 1 -

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HF-LPT100F and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for High-Flying HF-LPT100F

Summary of Contents for High-Flying HF-LPT100F

  • Page 1 HF-LPT100F & HF-LPT100S & HF-LPT100 Low Power WiFi Module Difference HF-LPT100F & HF-LPT100S & HF-LPT100 Low Power Tiny WiFi Module Difference Overview of Difference  LPT100F Support Maximum 5 Channel PWM output  LPT100S Support Maximum 4 Channel PWM output.

  • Page 2: Product Overview

    HF-LPT100F & HF-LPT100S & HF-LPT100 Low Power WiFi Module Difference 1. PRODUCT OVERVIEW 1.1. Hardware Introduction 1.1.1. Pins Definition Figure 1. HF-LPT100F Pins Map Table 2 HF-LPT100F Pins Definition Description Net Name Signal Comments Type Ground Power +3.3V Power DVDD Power 3.3V@250mA...
  • Page 3 HF-LPT100F & HF-LPT100S & HF-LPT100 Low Power WiFi Module Difference Figure 2. HF-LPT100S Pins Map Table 2 HF-LPT100S Pins Definition Description Net Name Signal Comments Type Ground Power +3.3V Power DVDD Power 3.3V@250mA Detailed functions see <Notes> Restore nReload I,PU Configuration “Low”...
  • Page 4 HF-LPT100F & HF-LPT100S & HF-LPT100 Low Power WiFi Module Difference Figure 3. HF-LPT100 Pins Map Table 2 HF-LPT100 Pins Definition Description Net Name Signal Comments Type Ground Power +3.3V Power DVDD Power 3.3V@250mA Restore nReload I,PU Detailed functions see <Notes>...
  • Page 5 HF-LPT100F & HF-LPT100S & HF-LPT100 Low Power WiFi Module Difference 1.1.2. Order Information Base on customer detailed requirement, HF-LPT100 series modules provide different variants and physical type for detailed application. Figure 4. HF-LPT100F Order Information Figure 5. HF-LPT100S Order Information Shanghai High-Flying Electronics Technology Co., Ltd(www.hi-flying.com)
  • Page 6 HF-LPT100F & HF-LPT100S & HF-LPT100 Low Power WiFi Module Difference Figure 6. HF-LPT100 Order Information 1.1.3. Module Application Please refer to LPT100 User Manual for moudle application. Shanghai High-Flying Electronics Technology Co., Ltd(www.hi-flying.com) - 6 -...
  • Page 7 Support Dial Switch Power Control.(Reserved)  Support External I-PEX or Pad Interface Antenna Option  Single +3.3V Power Supply  Smallest Size: 22mm x 13.5mm x 6mm, 1x10 2mm Connector  FCC/CE Certificated - 1 - Shanghai High-Flying Electronics Technology Co., Ltd(www.hi-flying.com)

  • Page 8: Table Of Contents

    Open Web Management Interface ...................24 3.1.2. System Page........................25 3.1.3. Work Mode Page ......................25 3.1.4. STA Setting Page ......................25 3.1.5. AP Setting Page .......................26 3.1.6. Other Setting Page ......................26 3.1.7. Account Management Page .....................27 - 2 - Shanghai High-Flying Electronics Technology Co., Ltd(www.hi-flying.com)
  • Page 9 AT+CFGFR ........................41 4.2.2.16. AT+CFGTF ........................41 4.2.2.17. AT+UART ........................42 4.2.2.18. AT+UARTF ........................42 4.2.2.19. AT+UARTFT ......................43 4.2.2.20. AT+UARTFL ......................43 4.2.2.21. AT+UARTTE ......................43 4.2.2.22. AT+SEND ........................43 4.2.2.23. AT+RECV ........................44 4.2.2.24. AT+PING ........................44 4.2.2.25. AT+NETP ........................44 - 3 - Shanghai High-Flying Electronics Technology Co., Ltd(www.hi-flying.com)
  • Page 10 AT+WEBU .........................55 4.2.2.60. AT+MSLP ........................55 4.2.2.61. AT+NTPRF ........................56 4.2.2.62. AT+NTPEN ........................56 4.2.2.63. AT+NTPTM ........................56 4.2.2.64. AT+NTPSER ......................57 4.2.2.65. AT+WRMID .......................57 4.2.2.66. AT+RLDEN ........................57 4.2.2.67. AT+ASWD .........................57 4.2.2.68. AT+MDCH .........................58 4.2.2.69. AT+TXPWR .......................58 - 4 - Shanghai High-Flying Electronics Technology Co., Ltd(www.hi-flying.com)
  • Page 11 AT+ HTTPDT ........................69 C.2. HTTP Example ...........................69 APPENDIX D:REFERENCES ......................71 D.1．High-Flying Mass Production Tool ..................71 D.2．SmartLink APP Config Tool ....................71 D.3．EVK Quick Start Guide ......................71 D.3．SDK Download ........................71 APPENDIX E: CONTACT INFORMATION ..................72 - 5 - Shanghai High-Flying Electronics Technology Co., Ltd(www.hi-flying.com)

  • Page 12: List Of Figures

    HF-LPT100 Default UART Port Parameters ..............34 Figure 33. Switch to Configuration Mode ...................34 ”AT+H” Instruction for Help ....................35 Figure 34. Figure 35. Reflow Soldering Profile ....................60 Figure 36. Shipping Information ......................61 - 6 - Shanghai High-Flying Electronics Technology Co., Ltd(www.hi-flying.com)

  • Page 13: List Of Tables

    HF-LPT100 GPIO/PWM Pin Mapping Table .................22 Table 8 HF-LPT100 Web Access Default Setting ................24 Table 9 Error Code Describtion ......................36 Table 10 AT+Instruction Set List ......................36 Table 11 Reflow Soldering Parameter ....................60 - 7 - Shanghai High-Flying Electronics Technology Co., Ltd(www.hi-flying.com)

  • Page 14: History

    Ed. V1.5 01-02-2014.Update AT command, add AT+SMTLK、AT+LPTIO. Ed. V1.51 01-22-2014.Update shipping information. Update GPIO description. Update SDK download. Add “AT+UDPLCPT”, Ed. V1.6 05-10-2014. “AT+NTPSER” command. Update Shipping information. - 8 - Shanghai High-Flying Electronics Technology Co., Ltd(www.hi-flying.com)

  • Page 15: Product Overview

    Compact surface mount module 22mm x 13.5mm x 6mm  Full IPv4 stack.  Low power RTOS and drivers.  FCC Certified.  RoHS and CE compliant.  Single supply – 3.3V operation. - 9 - Shanghai High-Flying Electronics Technology Co., Ltd(www.hi-flying.com)

  • Page 16: Device Paremeters

    User Configuration Smart Link APP tools 1.1.3 Key Application  Remote equipment monitoring  Asset tracking and telemetry  Security  Industrial sensors and controls  Home automation  Medical devices - 10 - Shanghai High-Flying Electronics Technology Co., Ltd(www.hi-flying.com)

  • Page 17: Hardware Introduction

    After module is powered up, short press this button ( “Low” < 3s ) to make the module go into “Smart Link “ config mode, waiting for APP to set password and other information. (See Appendix D to download SmartLink APP) - 11 - Shanghai High-Flying Electronics Technology Co., Ltd(www.hi-flying.com)

  • Page 18: Electrical Characteristics

    After module is powered up, long press this button ( “Low” > 3s ) to make the module recover to factory setting. High-Flying strongly suggest customer fan out this pin to connector or button for “Manufacture” and “ Smart Link” application.

  • Page 19: Mechanical Size

    PAD interface(remove the I-PEX connector). The user may choose one of them. If user select external antenna, HF-LPT100 modules must be connected to the 2.4G antenna according to IEEE 802.11b/g/n standards. The antenna parameters required as follows: Figure 3. HF-LPT100 External Antenna picture - 13 - Shanghai High-Flying Electronics Technology Co., Ltd(www.hi-flying.com)

  • Page 20: Evaluation Kit

    I-PEX or populate directly 1.2.5. Evaluation Kit High-Flying provides the evaluation kit to promote user to familiar the product and develop the detailed application. The evaluation kit shown as below, user can connect to HF-LPT100 module with the RS- 232 UART, or Wireless interface to configure the parameters, manage the module or do the some functional tests.

  • Page 21: Order Information

    HF-LPT100 Low Power WiFi Module User Manual 1.2.6. Order Information Base on customer detailed requirement, HF-LPT100 series modules provide different variants and physical type for detailed application. Figure 5. HF-LPT100 Order Information - 15 - Shanghai High-Flying Electronics Technology Co., Ltd(www.hi-flying.com)

  • Page 22: Typical Application

    HF-LPT100 Low Power WiFi Module User Manual 1.3. Typical Application 1.3.1. Hardware Typical Application Figure 6. HF-LPT100 Hardware Typical Application 1.3.2. Smart LED Application Hardware Typical Connection Figure 7. HF-LPT100 Smart LED Application Hardware Connection - 16 - Shanghai High-Flying Electronics Technology Co., Ltd(www.hi-flying.com)
  • Page 23 When module connects to AP (AP associated), this pin will output “0”. This signal used to judge if module already at WiFi connection status. Thers is pull-up resister internal and no external pull-up required. If nLink function not required, can leave this pin open. - 17 - Shanghai High-Flying Electronics Technology Co., Ltd(www.hi-flying.com)

  • Page 24: Functional Description

    HF-LPT100 Basic Wireless Network Structure 2.1.2. Wireless Network Based On AP+STA HF-LPT100 module support AP+STA network mode, means module support one AP interface and one STA interface at the same time, as following figure, - 18 - Shanghai High-Flying Electronics Technology Co., Ltd(www.hi-flying.com)

  • Page 25: Work Mode : Transparent Transmission Mode

    The parameters which need to configure include:  Wireless Network Parameters  Wireless Network Name（SSID）  Security Mode  Encryption Key  TCP/UDP Linking Parameters - 19 - Shanghai High-Flying Electronics Technology Co., Ltd(www.hi-flying.com)

  • Page 26: Uart Frame Scheme

    Detailed UART auto-frame function can refer to AT+ instruction set “UARTF/UARTFT/UARTFL” introduction. 2.4. Encryption Encryption is a method of scrambling a message that makes it unreadable to unwanted parties, - 20 - Shanghai High-Flying Electronics Technology Co., Ltd(www.hi-flying.com)

  • Page 27: Parameters Configuration

    (“config.txt”), then download the upgrade file base on the URL address listed in the configure file. General “config.txt” file format as following example: [URL]=”http://10.10.100.100:80/lpb.bin” [URL]= the URL address of Application. - 21 - Shanghai High-Flying Electronics Technology Co., Ltd(www.hi-flying.com)

  • Page 28: Gpio/Pwm Function

    After excuate this command, the module will directly download the “lpb.bin” file from remote directory and start upgrade Application. Notes: please contact with high-flying technical people before upgrade firmware, or maybe damage the module and can’t work again. 2.7. GPIO/PWM Function HF-LPT100 module can provide many GPIOs, which include max 3 PWM control pins.

  • Page 29: Multi-Tcp Link Connection

    Downstream: All data from serial port (user) will be duplicate and broadcast to every TCP connection or client. Detailed multi-TCP link data transmition structure as following figure: Figure 11. Multi-TCP Link Data Transmition Structure - 23 - Shanghai High-Flying Electronics Technology Co., Ltd(www.hi-flying.com)

  • Page 30: Operation Guideline

    Setting”, “Account”, “Upgrade SW”, “Restart”, “Restore”. (HF-LPT100 exists 1M Flash and 2M Flash version, 1M Flash is only with internal upgrade webpage while 2M Flash is with internal and external webpage. Please contact High-Flying to confirm physical type.) - 24 -...

  • Page 31: System Page

    User can push “Scan” button to auto search Wi-Fi AP router nearby, and can connect with associate AP through some settings. Please note the encryption information input here must be fully same with Wi-Fi AP router’s configration, and then it can link with AP correctly. - 25 - Shanghai High-Flying Electronics Technology Co., Ltd(www.hi-flying.com)

  • Page 32: Ap Setting Page

    HF-LPT100 usually works at data transparent transmission mode. At this mode, the user device which connected with HF-LPT100 will connect and communicate with remote PC or server. At this page, user need setting serial port communication parameters and defines TCP related protocal parameters. - 26 - Shanghai High-Flying Electronics Technology Co., Ltd(www.hi-flying.com)

  • Page 33: Account Management Page

    Figure 17. Other Setting Page 3.1.7. Account Management Page This page set web server’s user name and password. Figure 18. Account Page 3.1.8. Upgrade Software Page User can upgrade new software (firmware) version through Wi-Fi. - 27 - Shanghai High-Flying Electronics Technology Co., Ltd(www.hi-flying.com)

  • Page 34: Restart Page

    After module restore factory default setting, all user configuration profile will lose. to set again, and user name and password is “admin”. HF- User can access http://10.10.100.254 LPT100 will restore to AP mode for factory default setting. - 28 - Shanghai High-Flying Electronics Technology Co., Ltd(www.hi-flying.com)

  • Page 35: Internal Webpage

    After wireless connection is OK. Open Wen browser and access “http://10.10.100.254 ”; It /iweb.html is for upgrading application and external webpage. Please contact High-Flying if need support on custimization for external webpage. Figure 22. Internal Webpage 3.2. HF-LPT100 Usage Introduction 3.2.1.

  • Page 36: Network Connection

    Module IP address: dhcp,0.0.0.0,0.0.0.0,0.0.0.0; 3.2.4. Module Debug PC1 open “CommTools” program, setting the same serial port parameters with HF-LPT100 module and open serial port connection. Figure 25. “CommTools” Serial Debug Tools - 30 - Shanghai High-Flying Electronics Technology Co., Ltd(www.hi-flying.com)

  • Page 37: Figure 26. "Tcpudpdbg" Tools Create Connection

    “TCPUDPDbg” Tools Create Connection Figure 26. Then setting the TCP/UDP connection parameters. Default as following: “TCPUDPDbg” Tools Setting Figure 27. Then, click “Create” button to create a connection. “TCPUDPDbg” Tools Connection Figure 28. - 31 - Shanghai High-Flying Electronics Technology Co., Ltd(www.hi-flying.com)

  • Page 38: Typical Application Examples

    So, user device’s data or sampling information can send to remote TCP server for storage or processing. Also remote TCP server can send command to control and manage the user device through the wireless network. - 32 - Shanghai High-Flying Electronics Technology Co., Ltd(www.hi-flying.com)

  • Page 39: Transparent Serial Port Application

    For this transparent serial port application, two HF-LPT100 modules connect as below figures to build up a transparent serial port connection. HF-LPT100 works as Ad-Hoc mode to connect each other. Figure 31. Transparent Serial Port Application - 33 - Shanghai High-Flying Electronics Technology Co., Ltd(www.hi-flying.com)

  • Page 40: At+Instruction Introduction

    Figure 33. Switch to Configuration Mode Notes: 1. When user input “+++” (No “Enter” key required), the UART port will display feedback information “a”, and not display input information”+++” as above UART display. - 34 - Shanghai High-Flying Electronics Technology Co., Ltd(www.hi-flying.com)

  • Page 41: At+ Instruction Set Overview

    AT+Instruction protocol is based on the instruction of ASCII command style, the description of syntax format as follow.  Format Description  < >: Means the parts must be included  [ ]: Means the optional part  Command Message - 35 - Shanghai High-Flying Electronics Technology Co., Ltd(www.hi-flying.com)

  • Page 42: At+ Instruction Set

    AT+Instruction Set List Instruction Description <null> NULL Managment Instruction Set Open/Close show back function WMODE Set/Query Wi-Fi work mode (AP/STA/APSTA) ENTM Set module into transparent transition mode TMODE Set/Query module data transfer mode - 36 - Shanghai High-Flying Electronics Technology Co., Ltd(www.hi-flying.com)
  • Page 43 Set/Query STA’s Static DNS server address WSDNS Wi-Fi AP Instruction Set (Effective when module works as AP) Set/Query AP’s network parameters LANN Set/Query AP Wi-Fi parameters WAKEY Set/Query AP security parameters - 37 - Shanghai High-Flying Electronics Technology Co., Ltd(www.hi-flying.com)

  • Page 44: At+E

    Close echo When HF-LPB100 module firstly switch from transparent transmission to configuration mode, show back status is open, input “AT+E” to close show back function, input“AT+E” again to open show back function. - 38 - Shanghai High-Flying Electronics Technology Co., Ltd(www.hi-flying.com)

  • Page 45: At+Wmode

     throughput: throughput mode  cmd: command mode  pwm: PWM/GPIO mode 4.2.2.5. AT+MID  Function: Query module ID information;  Format:  Query Operation AT+MID<CR> +ok=<module_id><CR><LF><CR><LF> - 39 - Shanghai High-Flying Electronics Technology Co., Ltd(www.hi-flying.com)

  • Page 46: At+Ver

     Set Operation AT+RELD<CR> +ok=rebooting…<CR><LF><CR><LF> When operate this command, module will restore to factory default setting and reboot. 4.2.2.10. AT+FCLR  Function: Erase factory setting;  Format:  Query Operation AT+FCLR<CR> - 40 - Shanghai High-Flying Electronics Technology Co., Ltd(www.hi-flying.com)

  • Page 47: At+Z

    Format:  Query Operation AT+CFGFR<CR> +ok=<config><CR><LF><CR><LF>  Parameters:  config: the first two bytes means the length of configuration parameters; 4.2.2.16. AT+CFGTF  Function: Copy User Parameters to Factory Default Parameters; - 41 - Shanghai High-Flying Electronics Technology Co., Ltd(www.hi-flying.com)

  • Page 48: At+Uart

    4.2.2.18. AT+UARTF  Function: Open/Close UART auto-frame function;  Format:  Query Operation AT+UARTF<CR> +ok=<para><CR><LF><CR><LF>  Set Operation AT+UARTF=<para ><CR> +ok<CR><LF><CR><LF>  Parameters:  para:  disable - Close auto-frame function; - 42 - Shanghai High-Flying Electronics Technology Co., Ltd(www.hi-flying.com)

  • Page 49: At+Uartft

    10ms;  normal: free-frame trigger time between two bytes is 50ms; 4.2.2.22. AT+SEND  Send Data to SOCKA at Command Mode Function:  Format: AT+SEND=<data_lenth><CR> +ok<CR><LF><CR><LF> - 43 - Shanghai High-Flying Electronics Technology Co., Ltd(www.hi-flying.com)

  • Page 50: At+Recv

    Function: Set/Query network protocol parameters, Setting is valid after reset.  Format:  Query Operation AT+NETP<CR> +ok=<protocol,CS,port,IP><CR><LF><CR><LF>  Set Operation AT+NETP=<protocol,CS,port,IP><CR> +ok<CR><LF><CR><LF>  Parameters:  protocol:    CS: Network mode:  SERVER  CLIENT - 44 - Shanghai High-Flying Electronics Technology Co., Ltd(www.hi-flying.com)

  • Page 51: At+Maxsk

    Function: Set/Query TCP timeout; Setting is valid after reset.  Format:  Query Operation AT+TCPTO<CR> +ok=<time><CR><LF><CR><LF>  Set Operation AT+TCPTO=<time ><CR> +ok<CR><LF><CR><LF>  Parameters:  time: TCP timeout time.  <= 600, (600s); - 45 - Shanghai High-Flying Electronics Technology Co., Ltd(www.hi-flying.com)

  • Page 52: At+Tcpdis

    If set as UDP SERVER, the module will save the IP address and port of the latest UDP packet received. The data will be sent to the saved IP address and port. If the module hasn’t - 46 - Shanghai High-Flying Electronics Technology Co., Ltd(www.hi-flying.com)

  • Page 53: At+Tcpdisb

    The module will not connect SOCKB after TCP timeout. The module will make connection after another “TCPDISB” command. 4.2.2.33. AT+TCPLKB  Function:Query SOCKB connection status  Format: AT+TCPLKB<CR> +ok=<sta><CR><LF><CR><LF>  Parameters:  sta.: SOCKB connection status  on: TCP connected - 47 - Shanghai High-Flying Electronics Technology Co., Ltd(www.hi-flying.com)

  • Page 54: At+Udplcpt

    If not receive any data in 3 second, then feedback +ok=0. 4.2.2.37. AT+WSSSID  Function: Set/Query Wi-Fi associated AP SSID parameters. Setting is valid after reset.  Format:  Query Operation AT+WSSSID<CR> +ok=<ap’s ssid><CR><LF><CR><LF>  Set Operation AT+WSSSID=<ap’s ssid ><CR> +ok<CR><LF><CR><LF> - 48 - Shanghai High-Flying Electronics Technology Co., Ltd(www.hi-flying.com)

  • Page 55: At+Wskey

    DHCP: Dynamic IP  address: STA IP address;  mask: STA subnet mask;  gateway: STA gateway address; 4.2.2.40. AT+WSMAC  Function: Set/Query STA MAC address parameters. Setting is valid after reset. - 49 - Shanghai High-Flying Electronics Technology Co., Ltd(www.hi-flying.com)

  • Page 56: At+Wslk

    ”AP’s WiFi signal strength” , if WiFi connection available; 4.2.2.43. AT+WSCAN  Function: Scan AP;  Format: AT+WSCAN<CR> +ok=<ap_site><CR><LF><CR><LF>  Parameters:  ap_site: AP searched; 4.2.2.44. AT+WSDNS  Function: Set/Query STA static DNS server address;  Format: - 50 - Shanghai High-Flying Electronics Technology Co., Ltd(www.hi-flying.com)

  • Page 57: At+Lann

    AP mode  channel: Wi-Fi channel selection:  AUTO  CH1~CH11; (Default CH1) 4.2.2.47. AT+WAKEY  Function: Set/Query AP Wi-Fi secruity parameters. Setting is valid after reset.  Format: - 51 - Shanghai High-Flying Electronics Technology Co., Ltd(www.hi-flying.com)

  • Page 58: At+Wamac

     mac_address:AP’s MAC address; Note: Module AP mode’s MAC address is related to STA mode’s MAC address. If user need changeto others, please contact with high-flying technical people. 4.2.2.49. AT+WADHCP  Function: Set/Query AP DHCP server status; Setting is valid after reset.

  • Page 59: At+Walk

    Disable nLink indication function. (default mode). 4.2.2.53. AT+PLANG  Function: Set/Query webpage language option;  Format:  Query Operation AT+PLANG<CR> +ok=<language> <CR><LF><CR><LF>  Set Operation AT+PLANG=<language> <CR> +ok<CR><LF><CR><LF>  Parameters:  language: webpage’s language - 53 - Shanghai High-Flying Electronics Technology Co., Ltd(www.hi-flying.com)

  • Page 60: At+Upurl

     Parameters:  status:  on: Open. The UART Port will print some upgrade status when upgrading. the log file will be sent to UDP Port after successfully  off: Close. - 54 - Shanghai High-Flying Electronics Technology Co., Ltd(www.hi-flying.com)

  • Page 61: At+Logport

    User Name, within 15 characters, not support empty.  password: password, within 15 characters, support empty. 4.2.2.60. AT+MSLP  Function: Set/Query deep sleep/standby mode parameters;  Format:  Query Operation AT+MSLP<CR> +ok=<ret><CR><LF><CR><LF>  Set Operation AT+MSLP=<mode><CR><LF><CR><LF> - 55 - Shanghai High-Flying Electronics Technology Co., Ltd(www.hi-flying.com)

  • Page 62: At+Ntprf

     Parameters:  time：networ time, for example: 2013-10-9 16:10:42 Wed，if it shows Not Available means that the time calibration function is not enabled or the module doesn’t connect to the internet. - 56 - Shanghai High-Flying Electronics Technology Co., Ltd(www.hi-flying.com)

  • Page 63: At+Ntpser

    4.2.2.67. AT+ASWD  Function: Set/Query WiFi Configuration Password;  Format:  Query Operation AT+ASWD<CR> +ok=<aswd> <CR><LF><CR><LF>  Set Operation AT+ASWD=<aswd> <CR><LF><CR><LF>  Parameters:  aswd: WiFi Configuration Password (within 20 characters). - 57 - Shanghai High-Flying Electronics Technology Co., Ltd(www.hi-flying.com)

  • Page 64: At+Mdch

    SmartLink function , the module work in SmartLink status and nLink LED is fast flashing waiting for APP to push information. See the Appendix for more details. 4.2.2.71. AT+WPS  Function: Start WPS function - 58 - Shanghai High-Flying Electronics Technology Co., Ltd(www.hi-flying.com)

  • Page 65: At+Wpsbtnen

    WPS function are mapping to HF-LPB100 corresponding pin.(Pin44, Pin43, Pin15)  on/lpt100: nReady,nLink, WPS function are mapping to HF-LPT100 corresponding pin.(Pin9, Pin10, Pin8)  lpt200: nReady,nLink, WPS function are mapping to HF-LPT200 corresponding pin.(Pin11, Pin13, Pin14) - 59 - Shanghai High-Flying Electronics Technology Co., Ltd(www.hi-flying.com)

  • Page 66: Package Information

    Case 2: Wifi module mounted on bottom side, follow normal bake rule before process Note: Window time means from last bake end to next reflow start that has 168 hours space. - 60 - Shanghai High-Flying Electronics Technology Co., Ltd(www.hi-flying.com)

  • Page 67: Shipping Information

    Size: 350*260*20 mm Size: 350*260*160 mm (inside) Figure 36. Shipping Information Note: 1 tray = 20*6pcs = 120 pcs 1 box = 8 trays = 8 * 120 pcs = 960pcs - 61 - Shanghai High-Flying Electronics Technology Co., Ltd(www.hi-flying.com)

  • Page 68: Appendix A: Hw Reference Design

    HF-LPT100 Low Power WiFi Module User Manual APPENDIX A: HW REFERENCE DESIGN Detailed HF-LPT100 Evluation Board design source files, pls access High-Flying web download page or contact with High-Flying technical support people to acquire. - 62 - Shanghai High-Flying Electronics Technology Co., Ltd(www.hi-flying.com)

  • Page 69: Appendix B: Control Gpio/Pwm Function With Network Commands

    Function: Query GPIO Channel value  Parameters:  channel: GPIO Channel number,it can be 11、12、18(GPIO Pin Number )  Return Data:  +ok=<value>  value:GPIO Channel value  GPIO NOK: Command failed - 63 - Shanghai High-Flying Electronics Technology Co., Ltd(www.hi-flying.com)
  • Page 70 Channel number, it can be 11、12、18(GPIO Pin Number )  frequency:PWM Channel frequency, it can be 500~60000  duty:PWM Channel duty, it can be 0~100.  Return Data:  PWM OK: Command successful  PWM NOK: Command failed - 64 - Shanghai High-Flying Electronics Technology Co., Ltd(www.hi-flying.com)
  • Page 71 PWM Channel number,it can be 11、12、18(GPIO Pin Number )  Return Data:  +ok=<frequency duty>  frequency:PWM Channel frequency  duty:PWM Channel duty  PWM NOK: Command failed B.1.6 PWM <channel> SET - 65 - Shanghai High-Flying Electronics Technology Co., Ltd(www.hi-flying.com)

  • Page 72: Hexadecimal Network Command

     value3: Duty of PWM Channel 2  value4: Not used. B.2.4 Write PWM Channel Duty  Send Data:【22 <channel value1>】:  channel:PWM Channel number  value1: Duty of PWM Channel - 66 - Shanghai High-Flying Electronics Technology Co., Ltd(www.hi-flying.com)
  • Page 73 Read Resources of module  Send Data:【7e】:  Return Data:【fe <value1 value2 value3>】  value1: Module’s GPIO ouput pin number .  value2:Module’s GPIO input pin number  value3:Module’s PWM pin number - 67 - Shanghai High-Flying Electronics Technology Co., Ltd(www.hi-flying.com)

  • Page 74: Appendix C: Http Protocol Transfer

    C.1.3. AT+ HTTPPH  Function:Set/Query HTTP protocol header path.  Format:  Query Operation AT+HTTPPH<CR> +ok=<Path><CR>< LF ><CR>< LF >  Set Operation AT+HTTPPH=<Path><CR> +ok<CR>< LF ><CR>< LF >  Parameters: - 68 - Shanghai High-Flying Electronics Technology Co., Ltd(www.hi-flying.com)

  • Page 75: At+ Httpcn

    HTTP parameter settings are as follows： AT+HTTPURL=192.168.1.1,80 Set HTTP server address and port AT+HTTPTP=POST Set HTTP request type AT+HTTPPH=/abcd Set HTTP protocol header path AT+HTTPCN= keep-alive Set HTTP Connection area AT+HTTPUA= lwip1.3.2 Set HTTP User-Agent area - 69 - Shanghai High-Flying Electronics Technology Co., Ltd(www.hi-flying.com)
  • Page 76 The data received from HTTP server will be output to serial port and end with “+ok”. If the module hasn’t received data from HTTP server for 5 second, it will cut the TCP link with HTTP server. - 70 - Shanghai High-Flying Electronics Technology Co., Ltd(www.hi-flying.com)

  • Page 77: Appendix D:references

    D.1．High-Flying Mass Production Tool Download Address：http://gb.hi-flying.com/download_detail_dc/&downloadsId=1822d146-343d-4332- af8b-137c0fb4d967&comp_stats=comp-FrontDownloads_list01-dc.html D.2．SmartLink APP Config Tool IOS Platform : http://gb.hi-flying.com/download_detail_dc/&downloadsId=a8be10d9-f687-4984-8bec- 90b7f2cb3e08&comp_stats=comp-FrontDownloads_list01-dc.html Android Platform: http://gb.hi-flying.com/download_detail_dc/&downloadsId=3fe69600-8aed-4c8f- a5d0-ceea5f5b8f2e&comp_stats=comp-FrontDownloads_list01-dc.html D.3．EVK Quick Start Guide Download Address：http://www.hi-flying.com/download_detail_dc/&downloadsId=b545c662-4ec7- 49a4-aea4-e0997f062a62&comp_stats=comp-FrontDownloads_list01-dc.html D.3．SDK Download Download Address：http://www.hi-flying.com/download_detail_sdk/&downloadsId=8dd69136-6e5c- 4bac-9b2d-9a1c381450a6.html - 71 - Shanghai High-Flying Electronics Technology Co., Ltd(www.hi-flying.com)

  • Page 78: Appendix E: Contact Information

    © Copyright High-Flying, May, 2011 The information disclosed herein is proprietary to High-Flying and is not to be used by or disclosed to unauthorized persons without the written consent of High-Flying. The recipient of this document shall respect the security status of the information.
