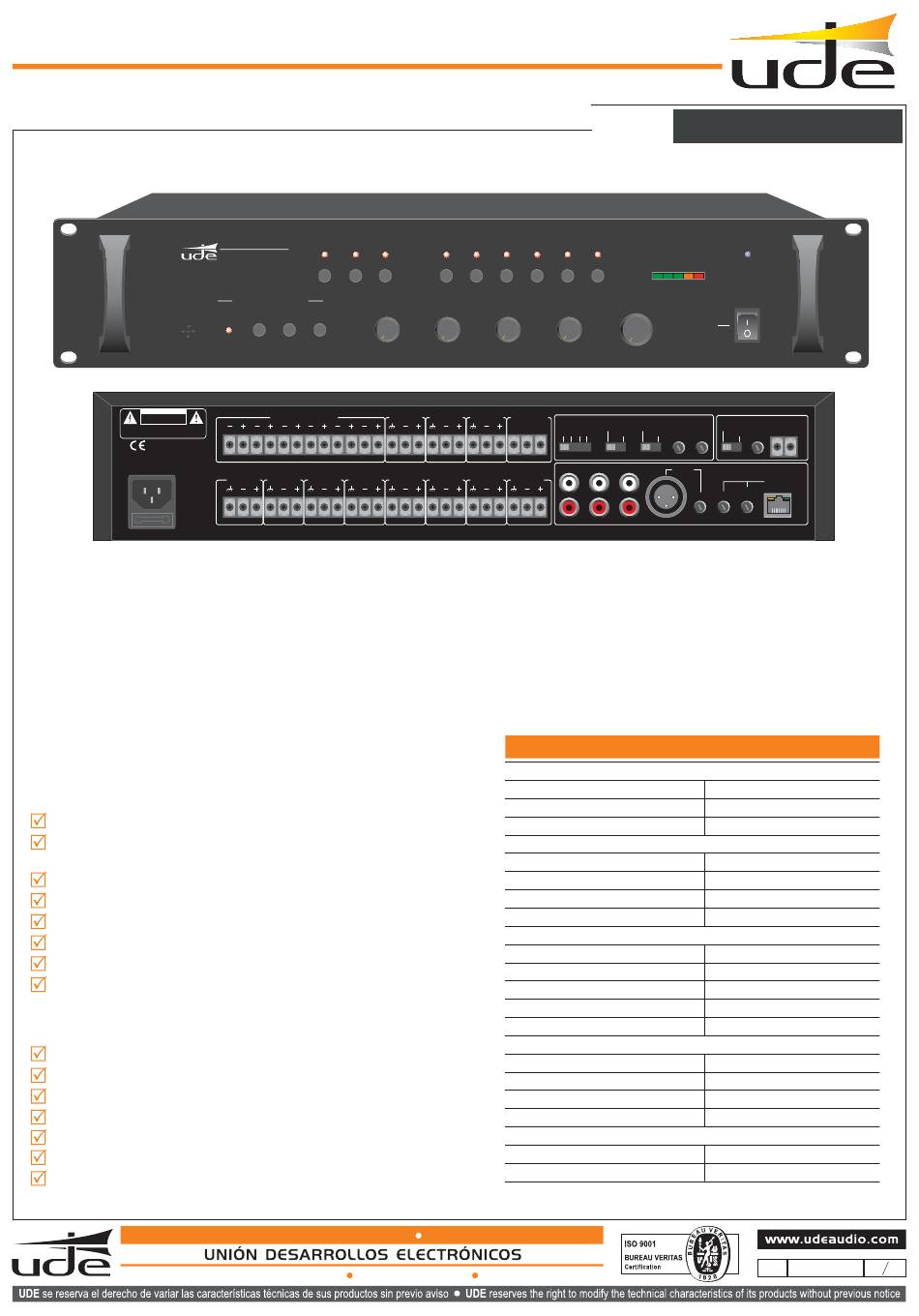

WZ-600 / PZ-600
CONTROL MODULE WITH 6 ZONES SELECTOR
PAGING DESK WITH ZONE SELECTION
WZ-600 CONTROL MODULE WITH 6 ZONES SELECTOR
MIC
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
RIESGO DE CHOQUE ELECTRICO
AVISO
NO ABRIR EN TENSION
230VAC 50Hz
T1AL 250V
The MICRO-600 System is the ideal system for small and medium applications.
The WZ-600 module allows the management of any music input, announcements and pre-recorded messages with any
of the 6 outputs, providing flexibility, through the switches located on the front of the equipment. All inputs allow volume
management and are equipped with a bass and treble filter.
We can connect an amplifier for 6 zones or 6 amplifiers, one per each zone. 6 PZ-600 desks interconnected via audio
and data bus, interconnection via FTP cable, providing a flexible, reliable and easy-to-use system.
MAIN CHARACTERISTICS
6-zone selector for broadcasting music.
Sending pre-recorded messages with priority activation for
Attenuator.
3 pre-recorded messages of 1 minute each.
Chime with volume control.
3 inputs selection for music
External MIC input with phantom power and gain level control
-Maximum power-line speaker: 500 W.
3 levels of priority.
1st Messages
2nd Desk PZ-600 paging desk
3rd external Micro (PRIORITY contact closure)
COM port by RJ45 connector for remote PZ-600 desk.
Control of volume and gain throught the COM port.
Front control for broadcast and recording of messages.
Independent volume control for message broadcast and recording
Remote control for activation of priority over music and chime activation
6 balanced output zones
6 24VDC outputs for priority attenuators (4 wires).
EQUIPOS Y SISTEMAS MEGAFONÍA / INTERCOM
Tel.: +34 934 772 854 / +34 609 914 787
PAGING SELECTOR
WZ-600
TAPE CD TUNER
MESSAGE RECORDER MICRO
ACTIVE PLAY STOP REC 5
4
3
2
1
0
MIX MUSIIC
RELE ZONE CONSOL OUT
1 2 3 4 5 6
ZONE 1 OUT ZONE 2 OUT ZONE 3 OUT
IN COM ZONE OPEN RELE IN
ude@udeaudio.com
ZONE2 ZONE3 ZONE4 ZONE5
ZONE1
MUSIC BASS TREBLE
5 0
6 4 6 -1 +1 -1
7 3 7 -2 +2 -2
8 2 8 -3 +3 -3
9 9 +4
1 -4 -4
10 0 10 -5 +5 -5
MUSIC OUT PAGE OUT
PAGE OUT PLAY MESSAGE
COM N01 N02
MESSAGE
3
TAPE
ZONE 4OUT ZONE 5 OUT ZONE 6 OUT
Console Input
Sensitivity:
S/N Ratio:
Frequency response:
:
External MIC Input
Sensitivity:
S/N Ratio:
Frequency response:
Phantom Power:
AUX 3 Input
Sensitivity/Impedance TAPE
Sensitivity/Impedance CD
Sensitivity/Impedance TUNER
S/N Ratio:
Frequency response
:
Controls
Bass:
Treble:
Chime:
Distortion:
General
Power Source:
Weight:
PUBLIC ADDRESS SYSTEMS
BARCELONA - SPAIN
MICRO-600 SYSTEM
OUTPUT LEVEL POWER
ZONE6
MASTER
5
6
4
0
+1
3 7 ON
+2
OFF
2 8
+3
+4
1 9
+5
0 10
REG MESSAGE MESSAGE
1 TIME ALARM VOL. PHANTOM
VOL.
2 1 OFF CONTINUOS NORMAL MIC
REG PLAY
CD TUNER
MICRO
CONSOL
GAIN GAIN VOLUME
TECHNICAL SPECIFICATIONS
1,5V
>68dB
50 a 16KHz (-3dB)
2,5 / 200 mV
>68dB
50 a 16KHz (-3dB)
48V
200 mV /47 Kohms
500 mV /47 Kohms
200 mV /47 Kohms
>80dB
20 a 16KHz (-3dB)
±10dB
±10dB
4 tones activated by remote control
> 0,1%.
230 VAC - 50/60 Hz
6,60 Kg.
PRIORITY
VOLUME
CHIME
CONSOL
1 610.500A 1 6
