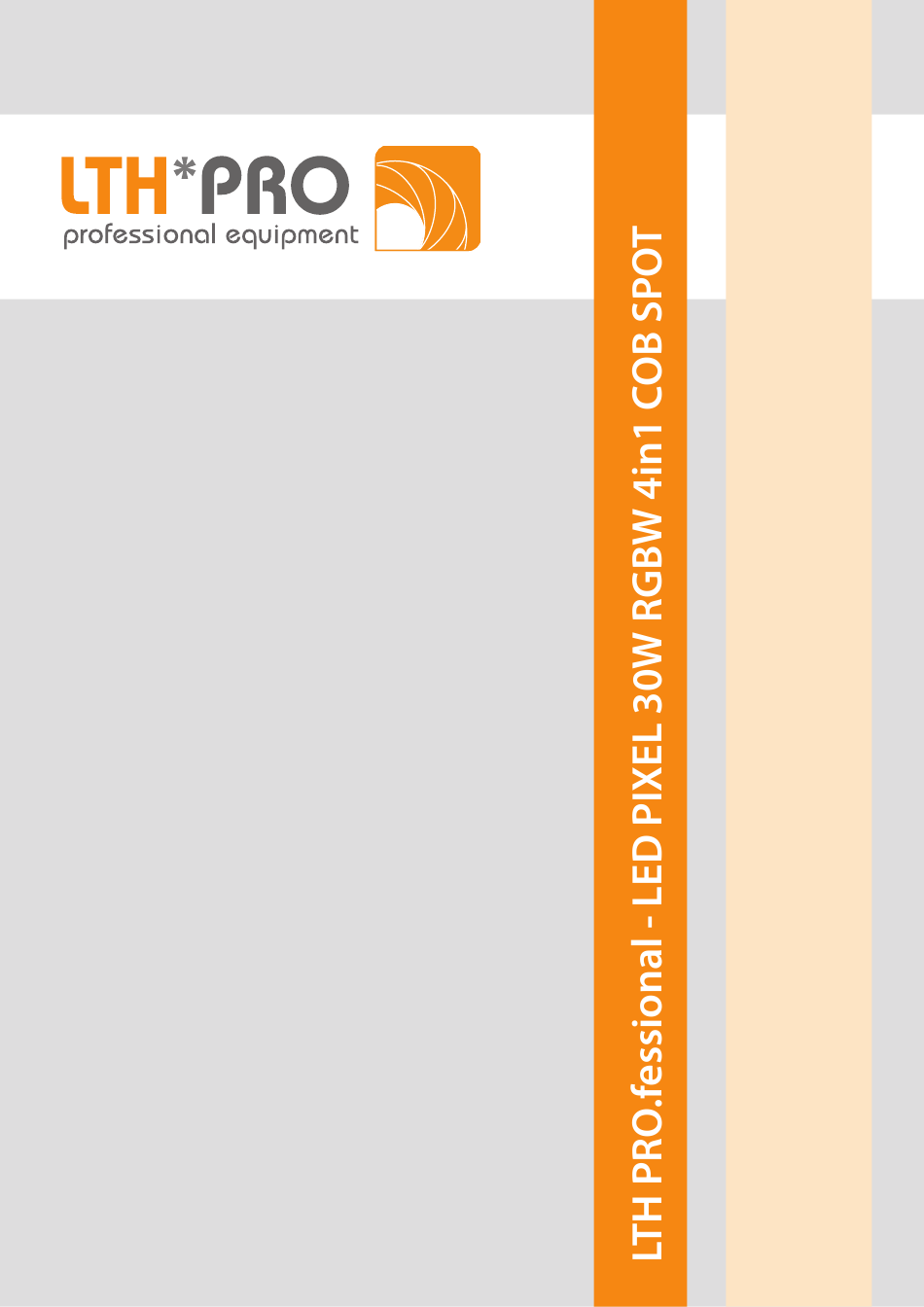

LTH LED PIXEL 30W RGBW 4in1 COB SPOT Manual

Hide thumbs
1
2
3
4
5
6
7
8

Advertisement

Table of Contents

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LED PIXEL 30W RGBW 4in1 COB SPOT and is the answer not in the manual?

Questions and answers

Related Manuals for LTH LED PIXEL 30W RGBW 4in1 COB SPOT

Summary of Contents for LTH LED PIXEL 30W RGBW 4in1 COB SPOT

  • Page 2: Safety Information

    Manual | LED PIXEL 30W RGBW 4in1 COB SPOT INTRODUCTION Thank you for purchasing LED PIXEL 30W RGBW 4in1 COB SPOT. For safety reasons and to ensure the trouble- free operation, carefully read the instructions. SAFETY INFORMATION Installation should be done by qualified personnel in order to minimize the risk of accidental electric shock Disconnect the power supply before installation.
  • Page 3 Manual | LED PIXEL 30W RGBW 4in1 COB SPOT • AC OUT: powerCON • DMX IN: XLR - 3 pin • DMX OUT: XLR - 3 pin • IP Rating: IP20 • Housing made: Aluminium • Cooling: Active • Height [cm]: 10 •...
  • Page 4 Manual | LED PIXEL 30W RGBW 4in1 COB SPOT b) Voltage specification Input Voltage Total Power Frequency 100~245V 50/60Hz c) Connecting power supply The connection is performed using power cable with PowerCon connector (included). The device must be operated by qualified personnel. Make sure that the power grid supply parameters are consistent with device parameters and limitations are not exceeded.
  • Page 5 Manual | LED PIXEL 30W RGBW 4in1 COB SPOT OPERATION MANUAL - AUTO DMX a) Introduction Devices with automatic DMX address assignment allow you to easily configure a lighting system consisting of multiple independently controlled lamps, without the need to give them an individual DMX address with a standard display menu.
  • Page 6 Manual | LED PIXEL 30W RGBW 4in1 COB SPOT c) DMX channel list In this way it is possible to connect multiple devices and have independent control of each of them immediately, after turning the power on (without setting the individual DMX addresses using display).
  • Page 7 Manual | LED PIXEL 30W RGBW 4in1 COB SPOT Changing mode is done using a standard DMX controller. Changes can be made by setting the appropri- ate value in the FUNCTION channel (see DMX channels table). Changing mode is done by setting the appropriate value and waiting 10 seconds.
  • Page 8 Manual | LED PIXEL 30W RGBW 4in1 COB SPOT Das Lichttechnikhaus Vertriebs GmbH Rudolf-Diesel-Str. 3, D-89312 Günzburg Telefon +49 (0) 82 21 207 98-0 +49 (0) 82 21 207 98-69 E-Mail info@lth-gmbh.de www.lth-gmbh.de...
