Summary of Contents for Network Critical CriticalConneX CC1200

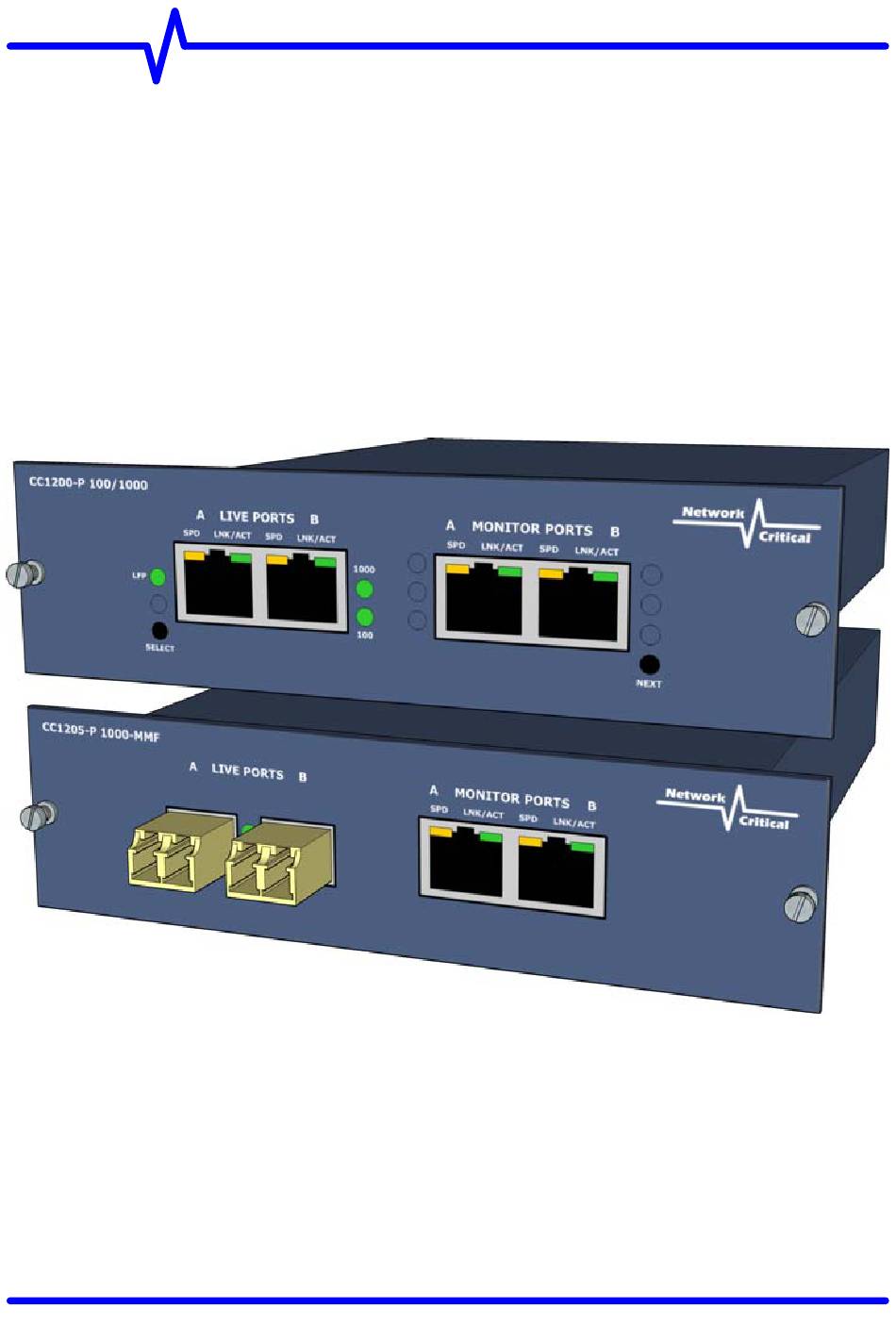

- Page 1 Network Critical CriticalConneX™ 100/1000 CriticalTAP™ User Guide CC1200, CC1205 & CC1210: CriticalConneX™ TAP Modules CC1200-P, CC1205-P & CC1210-P: CriticalConneX™ Portable TAPs Rev D - June 2007. Copyright Network Critical Solutions Ltd...
-
Page 2: User Guide
1 x CC1210: 1000 SM Fiber Breakout TAP with 2 Copper Gigabit Monitoring Ports 1 x Power Supply (incl. with Portable TAP only) 1 x User Guide 1 x Warranty Card Note: If any items are missing or damaged in shipping please inform Network Critical or your local reseller immediately. Front Panel... -
Page 3: Configuring The Unit
CriticalConneX™ User Guide - CC1200, CC1205 & CC1210 Configuring the Unit These configuration instructions apply only to the CC1200; The CC1205 and CC1210 have no configurable features. 1. Enter Configuration Mode by pressing SELECT and NEXT simultaneously. 2. The NEXT button steps through each feature setting displayed on the faceplate and the SELECT button allows you to select the features ON or OFF. - Page 4 CriticalConneX™ User Guide - CC1200, CC1205 & CC1210 monitoring ports to the MONITOR PORTS A and B on the TAP. Check the Link/Activity indicators on your sensors’ network ports to see whether data is flowing from the TAP to the sensor ports. Note: If the TAP fails to power up or fails to show activity on all ports make sure that the power source is turned on and all connections and cables are known good.
