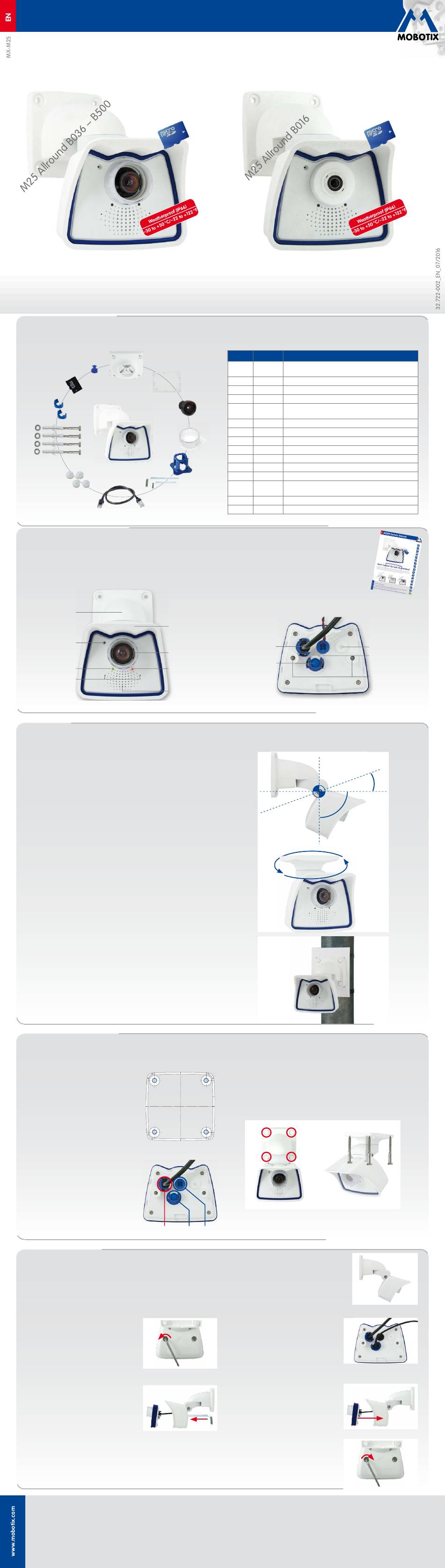

Quick Install
Allround Outdoor Camera for Ceiling, Wall and Pole Mounting
• Includes MxAnalytics video analysis tools out-of-the-box
• Recording on internal microSD card (SDXC, SDHC installed)
• Signal inputs/outputs via optional MxBus modules
• Audio integrated (microphone and speaker)
• Sensors for temperature and shock detection integrated
• Simply mounted to poles using Pole Mount (accessory)
1.15
1.14
1.13
1.10, 1.11, 1.12
1.9
1.8
For information on connecting the M25, please see the M25 Camera Manual , section «Network and Power Connection, Additional
Cables» (PDF, available on www.mobotix.com > Support > Manuals).
Regarding the initial operation of the M25, please see the M25 Camera Manual in Chapter 3, «Initial Operation» .
Wall Mount
Microphone
Power/Status
Keys R, L
Mounting to a Wall
When installing the M25 on a wall, for example, simply affix the pre-installed
and VarioFlex wall mount included in the delivery with the four supplied
screws and washers.
The camera can be turned or tilted 180° horizontally and 110° vertically
(from –90° to +20°).
Mounting to a Ceiling
By exchanging the wall mount for the separately supplied ceiling mount, the
M25 is ready to be mounted to ceilings in just a few easy steps thanks to
the VarioFlex system.
The camera can be turned or tilted 360° horizontally and 110° vertically
(from –90° to +20°).
Mounting to Poles (With Accessories)
If you want to mount the camera to a pole with a diameter from 60 to 180 mm,
you should consider using the Pole Mount (MX-MH-SecureFlex-ESWS) made
from white powder-coated stainless steel.
Just like when mounting to a wall, the camera can be turned 180° hori-
zontally and tilted 110° vertically (from –90° to +20°).
1. Drill the holes for the dowels (if required)
Use the drilling template for this step (see below).
Mark the holes for dowels or screws (blue cir-
cles in figure). If required, drill the holes for the
dowels, push them in and cut the cut-out for
the cables. Guide the Ethernet cable and any
other cables that are to be connected through
the cut-out.
2. Connect the cables
If you want to connect additional cables (USB,
MxBus), remove the weatherproof housing
as shown in Section «Removing/Installing the
Weatherproof Housing» , connect the cabling as
required and again install the housing. Plug the
pre-installed Ethernet cable into a network socket
(e.g., of an MX-Overvoltage-Protection-Box).
For certain tasks (e.g., connecting additional wires, exchanging the SD card), you need to remove the weatherproof housing and
install it again once you are finished.
1. Remove the fastening screws at the back
Start by removing the two rubber plugs that
protect the fastening screws. Next, unscrew
the two fastening screws of the weatherproof
housing using the supplied Allen wrench 5 mm
(item 1.7), but do not remove the screws.
2. Remove camera from weatherproof housing
Press the camera from the housing by gently
applying pressure on the screws in alternating
fashion from the rear using the long shank of
the Allen wrench. Unscrew the fastening screws
once the camera is free from the housing.
Innovations - Made in Germany
The German company MOBOTIX AG is known as the leading pioneer in network camera technology and its decentralized concept has made high-resolution
video systems cost-efficient.
MOBOTIX AG • D-67722 Langmeil • Phone: +49 6302 9816-103 • Fax: +49 6302 9816-190 • sales@mobotix.com
Standard Delivery M25
1.2
1.3
1.4
1.1
1.7
Connection and Initial Operation of the M25
Weatherproof
housing
Lens and lens
cover
Recording
Speaker
Mounting Options of the M25
Ethernet
USB MxBus
Removing/Installing the Weatherproof Housing
Allround M25
MOBOTIX 6MP camera for flexible use in indoor and outdoor applications,
available as complete Allround M25 (Day or Night) with the lenses MX-B036
to MX-B500 and as Hemispheric variant (Day or Night) with lens MX-B016.
www.mobotix.com > Products > M25
Item
Count
1.1
1
1.2
1
1.3
1
1.4
1
1.5
2
1.5
1.6
1
1.7
2
1.8
1
1.9
4
1.10
4
1.6
1.11
4
1.12
4
1.13
2
1.14
1
1.15
1
Ethernet
USB
Installing the M25
3. Install the camera
Press the wall/ceiling mount and the wall sealing against the mounting posi-
tion and align the holes with the holes for the dowels/screws. Insert the screws
with washers and tighten them using a torque of 0.4 Nm. Finally, press the
white covers onto the screw heads.
3. Complete the tasks
Follow the procedures for the work inside the
housing as described in the M25 Camera Manual
in Chapter 2, «Installation» (e.g., connecting
additional wires, exchanging the SD card).
4. Insert the camera into the weatherproof
housing
Start by inserting the camera into the weath-
erproof housing. Press the camera back into
the housing and take care not to squeeze and
damage any wires inside the housing.
5. Tighten the retaining screws
Affix the camera in the weatherproof housing
using the two retaining screws.
Finally, push in the two rubber plugs that protect
the retaining screws.
Security-Vision-Systems
Part Name
Camera in weatherproof housing, incl. VarioFlex wall
mount
Ceiling mount
Sealing for wall and ceiling mount
Lens, installed (standard M14 or B016)
Lens cover, 1 installed, 1 replacement (cover for B500
not shown, not available for lens B016)
Lens wrench B016 (only for M25-D016/N016)
Allen wrench 5 mm, Allen wrench 2.5 mm
Special Ethernet cable 0.5 m/20", installed
Screw caps for stainless steel fastening screws
Stainless steel wood screws 6x50 mm
Stainless steel washers 6.4 mm dia.
Dowel S8
Cable lock with bayonet catch (Ethernet patch cable,
MiniUSB)
MicroSD card installed
MiniUSB plug
Rear (without weatherproof housing)
Mounting to a Wall
+20°
-90°
Mounting to a Ceiling
360°
Pressure vent
MxBus
Retaining
screws
