Installation Leaflet - Anybus Communicator for Modbus/TCP to USS
DOC.ID: SCM-7595-010 Rev 1.0 - Part.no. SP0938
Anybus Communicator for Modbus/TCP to USS

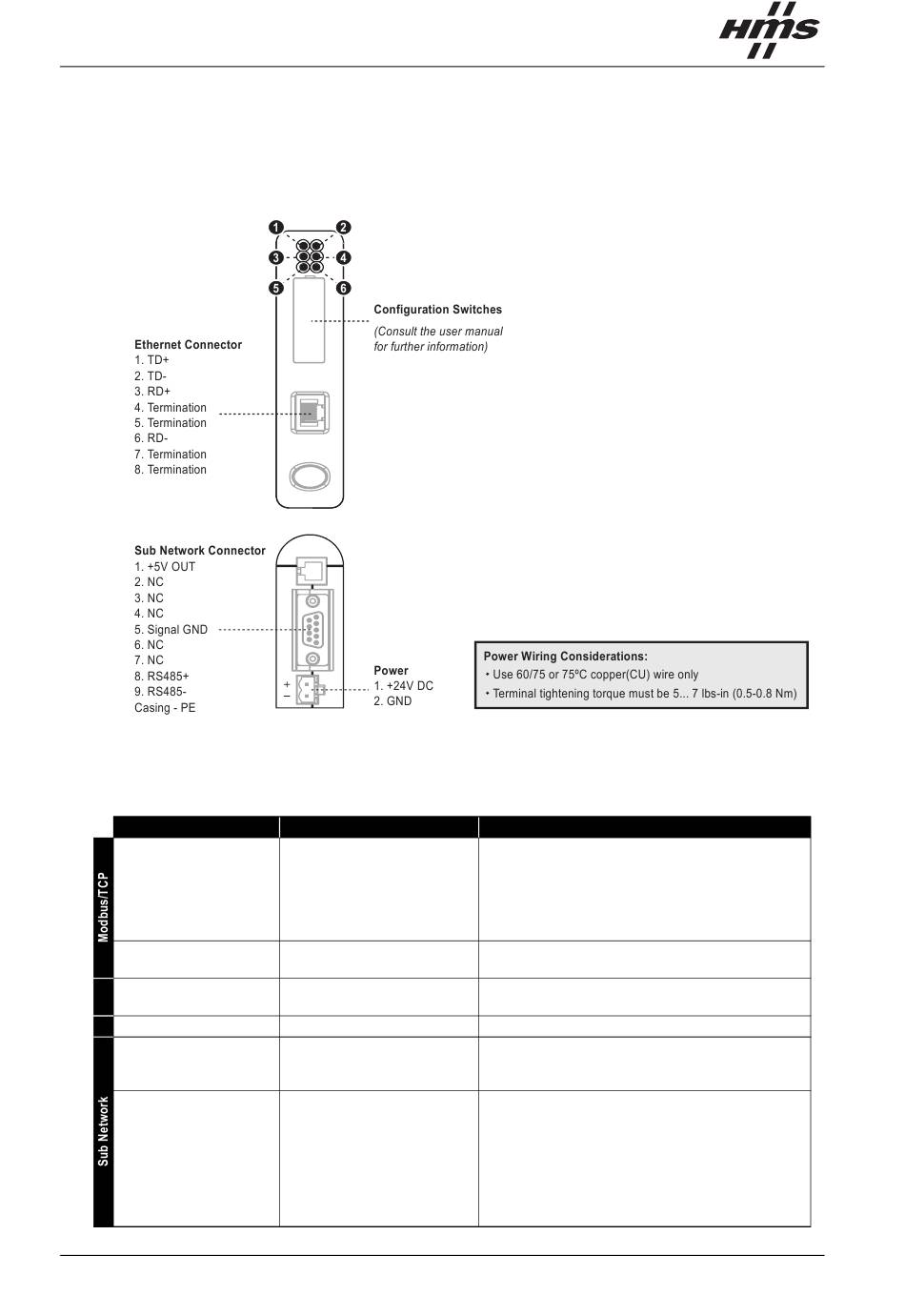

External View
Status LEDs
LED (number)
Communication Status (1)
MB TCP Conn. (2)
Link (3)
Activity (4)
USS Status (5)
Gateway Status (6)
Web: www.anybus.com
Indication
Off
Green
Green, flashing (1Hz)
Red, flashing (1Hz)
Red, flashing (2Hz)
Red, flashing (4Hz)
-
Off
Green
Green, flashing
Off
Red
Green
Off
Flashing Red 1Hz
Flashing Red 2Hz
Flashing Red 4Hz
Red
Flashing Green 1Hz
Flashing Green 2Hz
Green
Meaning
Not initialized (or no power)
Initialized, normal operation
The IP address not set by on-board switches
Internal error; please contact your supplier
Failed to load network configuration (ethcfg.cfg)
Internal error; please contact your supplier
Indicates the number of Modbus/TCP connections (each con-
nection is represented as a single green flash)
No link
Connection to ethernet detected
Receiving or transmitting ethernet packet
USS Communication idle
USS Communication timeout
USS Communication detected (Receiving only)
Power offI
No configuration present
Configuration error
Initialization error of Anybus module
Stopped
Autoscan in progress
Initialization in progress
Operational
HMS INDUSTRIAL NETWORKS
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for HMS Anybus Series
Summary of Contents for HMS Anybus Series
-
Page 1: External View
Power offI Flashing Red 1Hz No configuration present Flashing Red 2Hz Configuration error Flashing Red 4Hz Initialization error of Anybus module Stopped Flashing Green 1Hz Autoscan in progress Flashing Green 2Hz Initialization in progress Green Operational Web: www.anybus.com HMS INDUSTRIAL NETWORKS... -
Page 2: Accessories Checklist
DIN-rail (2), as to make it snap off from the DIN-rail. 2. Connect the ABC to ethernet (Modbus/TCP) 3. Connect the ABC to the serial sub-network 4. Connect the power cable and apply power 5. Configure and start up the Modbus/TCP and sub-network communication HMS INDUSTRIAL NETWORKS Web: www.anybus.com... -
Page 3: Functional Overview
The ABC enables a Modbus/TCP master to access devices and data on a serial sub-network. In addi- tion to this, the ABC features built in FTP, Web, Telnet and Email capabilities. For in-depth information about this product, please consult the Anybus-Communicator for Mod- bus/TCP User Manual. Web: www.anybus.com HMS INDUSTRIAL NETWORKS... -
Page 4: Technical Specification
+1 773 404 2271 Phone: +81 45 478 5340 Fax: +1 773 404 1797 Fax: +81 45 476 0315 Online: www.anybus.com Online: www.anybus.com Communicator Downloads Documentation, software etc. can be down- loaded from the HMS website, www.any- bus.com HMS INDUSTRIAL NETWORKS Web: www.anybus.com...
